Description

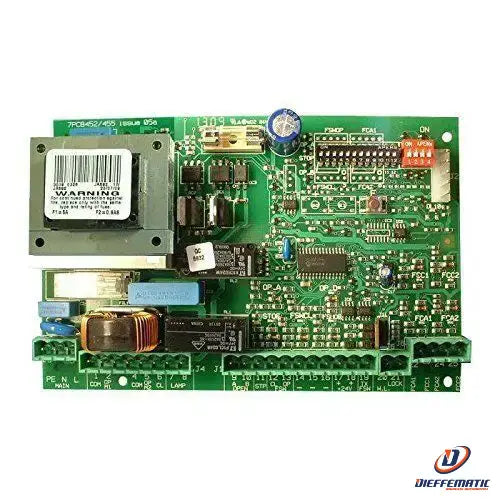

GENIUS BRAIN 592 CONTROL BOARD
SKU: JA592
Original FAAC GENIUS JA592 control board
Replacement electronic control board for Genius swing gate operators, also suitable for universal use with motors powered at 230V.
Adjustable via DIP switches, with a 12Vac/dc output for controlling the electric lock and a 24 Vdc output for accessories.
Opening and closing safety devices with fault indicator LEDs, opening and pedestrian opening commands via radio or wired control, and slowdown during both operations.
Limit switch management, allowing the control board to operate two motors with electric limit switches for opening and closing.
5-pin Molex connector for plugging in the radio receiver (not included with the control board). This solution allows you to retrieve the remote control memory and transfer it to another control board.
Power supply voltage 230Vac
Max. motor load 800 W
Max. accessory load 500 mA
Accessory power supply 24 Vdc
Max. electric lock load 15 VA
Operating temperature -20°C +55°C
Primary protection fuse 5 A
Accessory line protection fuse 800mA
Dimensions 165×117 mm
24-month warranty
