Description
Complete kit for sliding gate automation
1600 kg
OIL-BATH
ideal for automating gates for intensive/industrial use
Professional
Model KV16 230 V
SKU: KIT-KV16
Oil-bath electromechanical gear motor for external installation, with all-metal gears, ensuring performance and reliability
Sophisticated pre-wired electronic control unit.
Advanced: thanks to independent management of the opening and closing travel.
Safe: thanks to the photocell monitoring function, which checks that the photocells are working correctly before each movement.
Base made entirely of die-cast aluminum.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

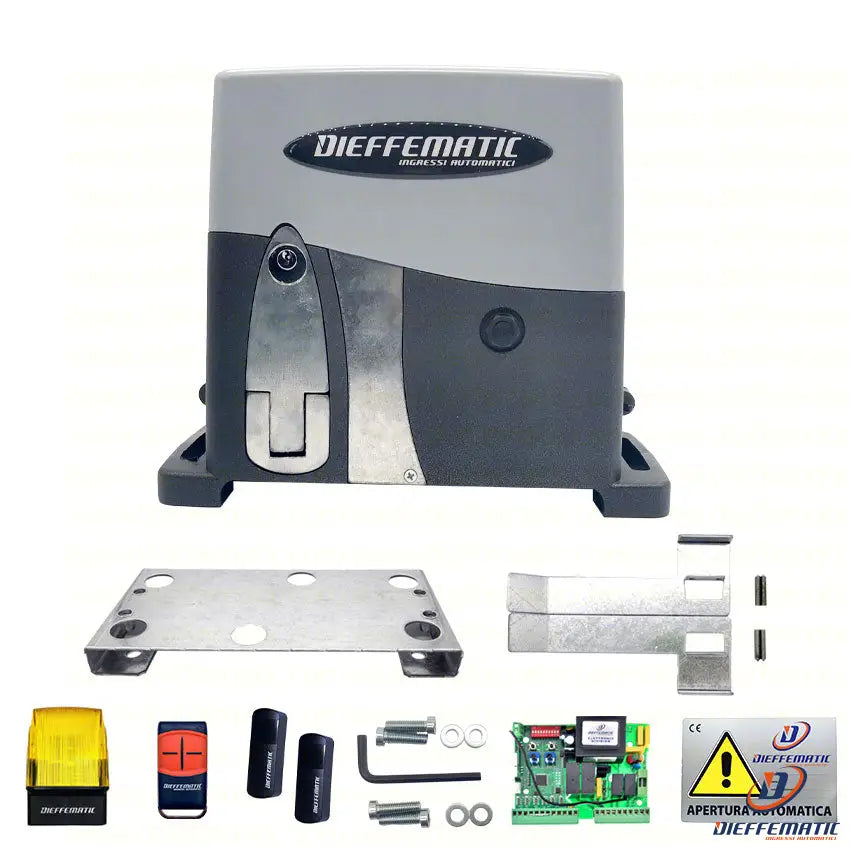

KIT CONTENTS:
1 1600 kg electromechanical gear motor (with integrated electronic control unit), 220 V power supply with key release, dimensions H257 x W290 x D135 mm. Speed 12 m/min (UNI 8612 standards), weight 13 kg
1 Galvanized foundation plate
1 Control unit housed in the motor casing, with motor force adjustment trimmer and obstacle detection, slow-down during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges
1 Single-channel radio receiver integrated into the control unit (433.9 MHz)
1 Antenna integrated into the control unit, range 20 metres (433.9 MHz)
1 4-channel rolling-code remote control
1 Pair of wall-mounted photocells
1 230 V flashing light
1 Warning sign
1 Installation accessories
1 Mechanical and electronic installation manual in ITALIAN
24-month warranty
