Complete Kit for Gate Automation MAX 3 METERS 1 LEAF
KIT OF ONE SWING DOOR STROKE 500 MM 230V
Professional
SKU: KIT-BHE-C500-1M
With mechanical opening and closing limit switches
**Use for doors up to 3.00 meters and 200kg in weight**
Mod. BHE 500mm 230v FOR GATES MAXIMUM OF 3 METERS 1 LEAF
Electromechanical linear actuator for condominium use, entirely metal structure, stainless steel stem.
Once correctly installed, BHE automatic systems no longer need to be looked after, as their maintenance is practically zero, installation does not require any modification to the existing gate!
High performance electric motor.
The actuator is built for leaves that do not exceed 200 kg in weight and 3.00 meters in length, aluminum body and the heart of the bronze gears guarantee long life.
The actuator keeps the lock in closing and opening without the need for an electric lock for doors, convenient release with a triangular key located on the motor unit.
Control unit with built-in receiver for the control of ½ doors.
Electronic clutch with convenient and fast stroke adjustment, possibility of adjusting the second leaf delay.
Slowdowns on opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the travel of the leaves.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT COMPOSITION:
n° 1 linear electromechanical actuator for condominium use, for external uses
Emergency release with key. Does not require an electric lock.
Engine rpm 1,400. Power 200 W. Thrust 1500 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.5 kg
n° 1 control unit with watertight box, with motor force and slowdown adjustment trimmer, built-in obstacle detector, slowdown on opening and closing, 4 operating logics: step-by-step, semi-automatic 1 and 2, condominium automatic. Pedestrian function only from remote control, Protections against overvoltages, Input for photocells and safety edges, Electric lock management, Reversal stroke, Adjustable closing/opening door phase shift, adjustment of re-closing time.
n° 1 Single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated into the control unit, range 40 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 Pair of wall-mounted photocells

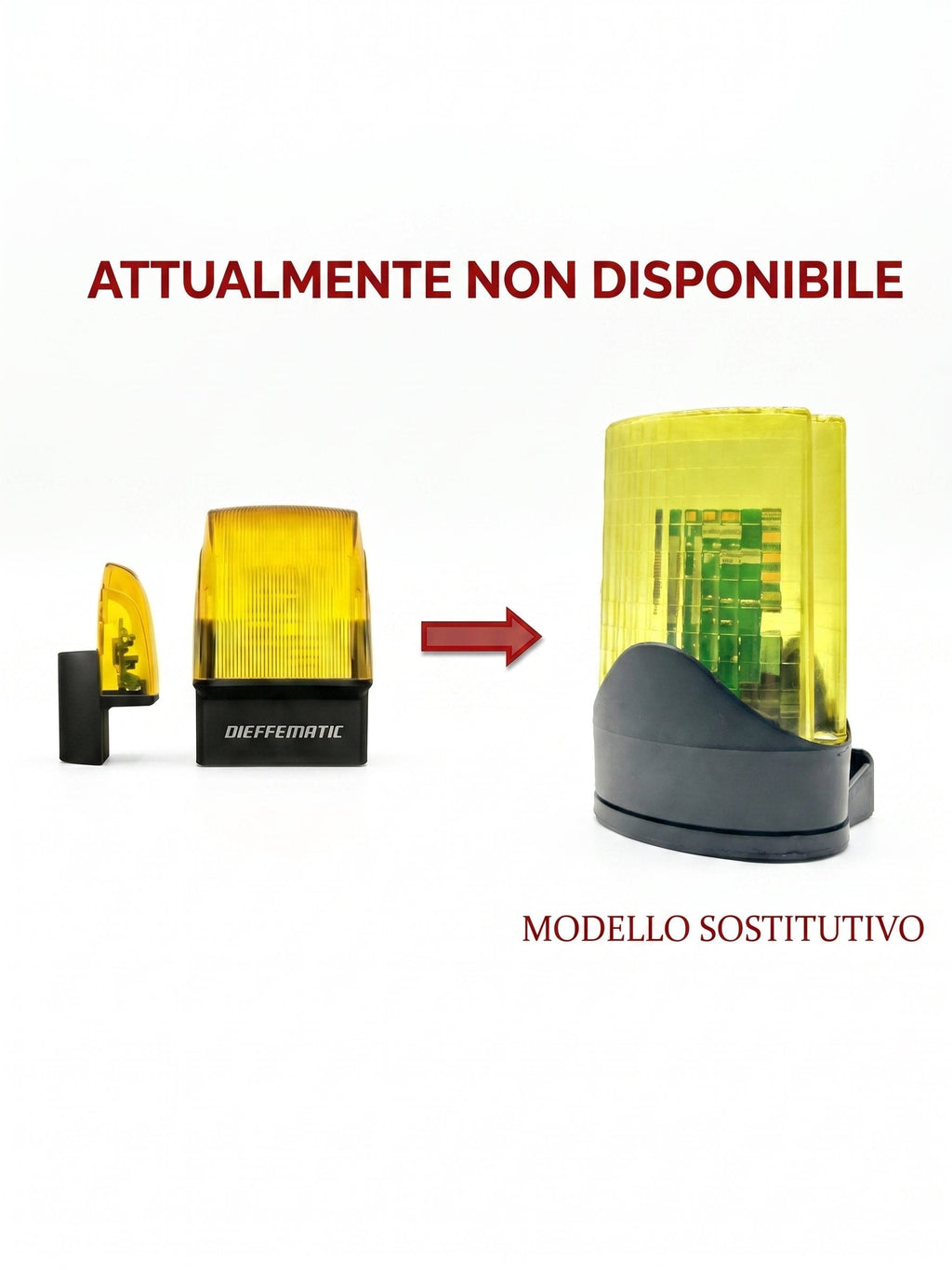

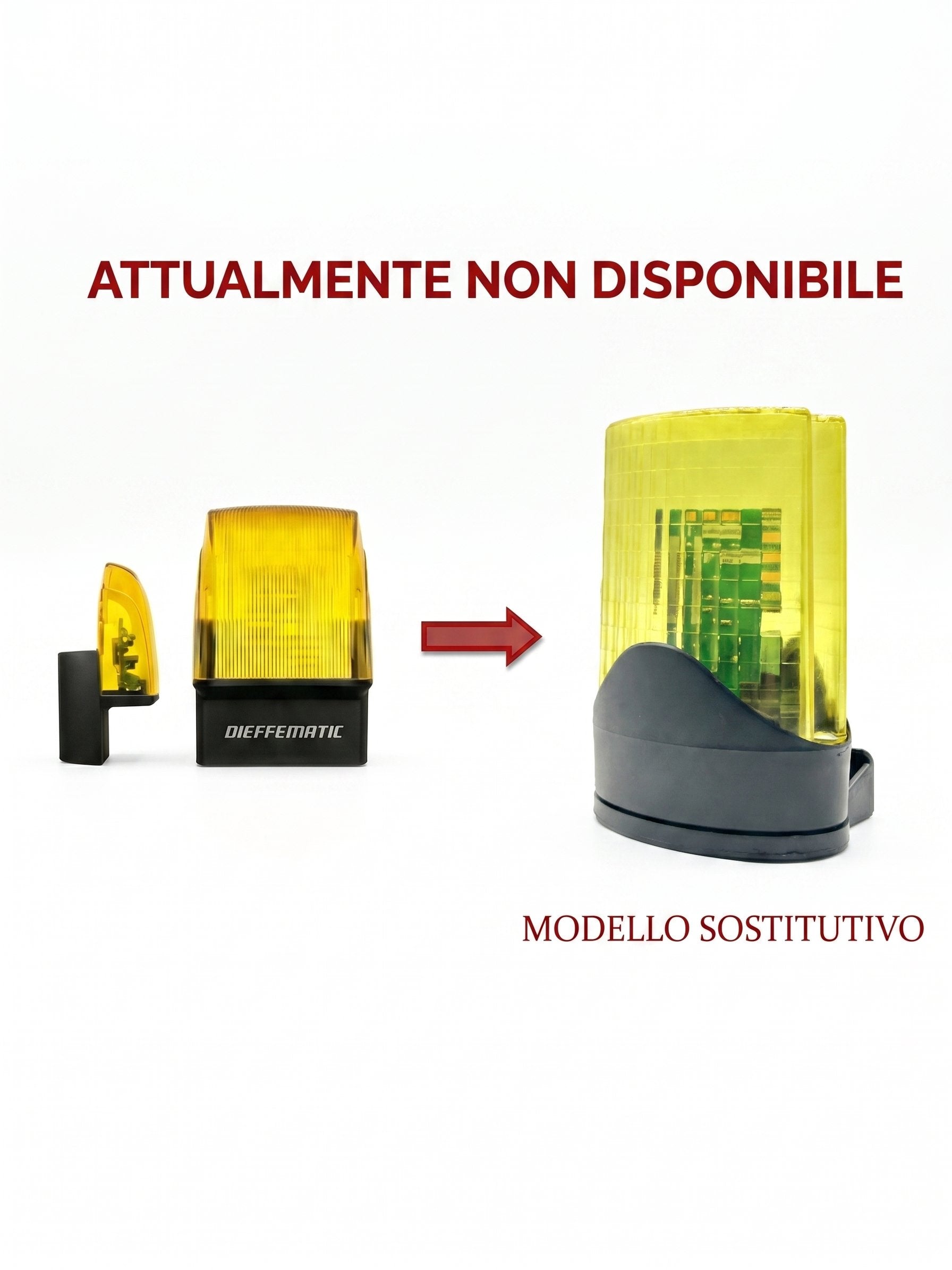

n° 1 230v flashing light
n° 1 Warning sign
n° 1 Installation accessories, bolted/welded fixing brackets with bracket covers
n° 1 Assembly instructions for the mechanical and electronic parts in ITALIAN
24 month warranty
