Fire Alarm With Red Electromechanical Badenia Securvera Sf-cbcsamcrid

FIRE ALARM WITH RED ELECTROMECHANICAL BADENIA 4 PIECES 24 VDC POWER SUPPLY REPEAT SIGNALS AND ANY WARNING - SF-CBCSAMCRID

Mod. SF-CBCSAMCRID

SKU: SF-CBCSAMCRID

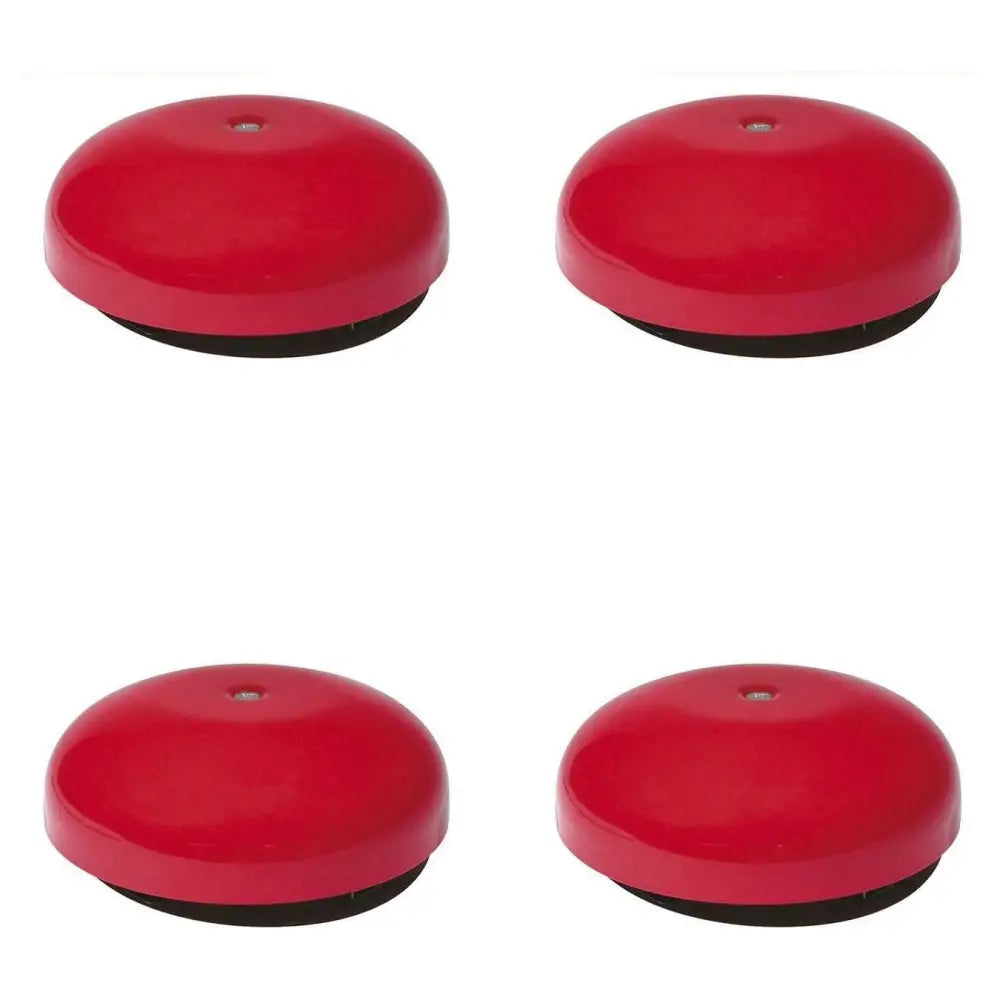

SF-CBCSAMCRID Electromechanical bell, incorporates a coil which, when crossed by current, creates a magnetic field, by activating a hammer, which strikes the resounding metal tympanum, the shape of the bell amplifies the sound. Particularly suitable for fire alarm systems, it can be used to signal the start of work, or the end of the same. Repeater of a telephone call. Any notice or recall. For quick installation of the bell, it is equipped with a steel fixing plate, located on the back and easily removable. Power supply 15-30 Vdc. Average absorption 25 mA at 15 Vdc. 50 mA at 30 Vdc. Acoustic power 100 dB at 24 Vdc. 90dB at 15Vdc. Dimensions Ø152mm. Operating temperature - 10° C to + 70° C. Maximum relative humidity 93% non-condensing. Weight: 820 g. Red painted sonorous metal material. Degree of Protection IP 34. Electromagnetic Compatibility EN 61000-6-3 (EMC) - Part 6-3. EN 61000-6-3: 2001 EN 50130-4/ A2: 2003. Made in: Italy by Securvera Product assembled and selected in the Securvera plant in Rome. Guaranteed in accordance with the law against defects and manufacturing defects.


LIST OF CE COMPONENTS FOR THE EXPANSION OR CONSTRUCTION OF A FIRE ALARM SYSTEM IN ACCORDANCE WITH THE LAW:
04 SF-CBC Badenia or Red Electromechanical Bell 90 dB Fire Alarm Signaling Power. 24 Vdc. Absorbed 50mA. Dimensions ø152XS55 mm
01 SV-GAR Certificate of Guarantee; Securvera Manufacturer's Warranty As per law: 24 Months; Qualified installation Compliant with DM37/2008 for life
01 SV-IST Instructions Detailed Characteristics for Assembly. Current fire prevention regulations on risk assessment must be complied with


Securvera Registered Trademark 663069: Automatisms Entrance Control Wire Alarm Sensors and Fire Radio
Instructions or Installation Manual: Find Below the Wording "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Control Panel System Fire Alarm Activation Extinguishing Intervention
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Protection from Stress: Polarity Reversal Life Existence Check Line Insulator Sensors
Country of origin and manufacture: Made in Italy in the Securvera factory and carefully selected
Forms or Payment Systems: State Deductions or Tax Accounting by Traceable Bank Transfer
Guarantee Beyond the Terms of the Law: Product Guaranteed by Securvera for Life Against Defects and Manufacturing Faults
Compatibility other Brands: Smoke Detectors Flame Temperature Badenie Conventional Systems
Installation Instruction Manual: Carefully read the Manual Weights Measurements Functions Necessary Accessories
Article Code Model Type: SF-CBCSAMCRID Badenia Electromechanical Red Fire alarm


CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL

24 months warranty
