Description

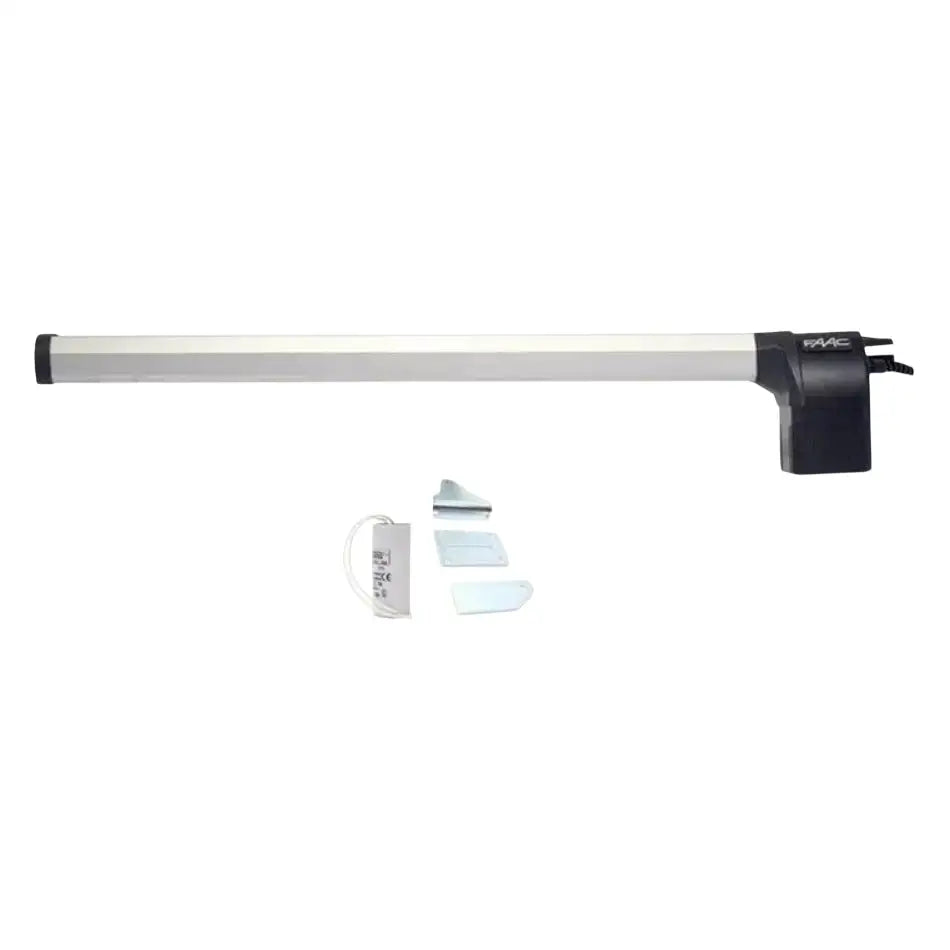

230V electromechanical actuator for swing gates
Mod. 412 DX
SKU: 104470
No electric lock
FAAC 412 is an irreversible actuator and therefore does not require an electric lock, providing security without complications.
Easy installation
FAAC 412 ensures quick and easy installation and maintenance.
Accessible release
The release device, located on the rear of the actuator, is easily accessible and lets you operate your gate with maximum convenience.
• Max. single gate leaf width: 1.8 m
• Frequency of use: 18 cycles/hour
Maximum safety
FAAC 412 is equipped with an electronic anti-crushing device. Electronic clutch with constant monitoring over time, active during opening and closing.
Release system
In the event of a power failure, the release key allows the gate to be operated manually.
TECHNICAL DATA:
Mains supply voltage: 220-240V~ 50/60 Hz
Electric motor: Single-phase asynchronous
Max. power: 280 W
Max. thrust force: 3500 N
Max. rod speed: 16 mm/s
Rod stroke: 290 mm
Max. gate opening angle: 110°
Operating ambient temperature: -20°C ÷ +55°C
Thermal protection: 140°C
Protection rating: IP44
Weight: 6.5 Kg
Frequency of use: 18 cycles/hour
Max. gate leaf width: 1.8 m
Mounting brackets: Rear bracket for welding/screwing - front bracket for welding/screwing
Dimensions (LxWxH): 991 x 101 x 172 mm
Electronic control unit: Not included
24-month warranty
