Description
FAAC
COMPLETE KIT FOR SINGLE-LEAF GATE
MODEL 400 SB 230V
Hydraulic automation system for swing gates with a max. gate leaf width of 4 m, for intensive use

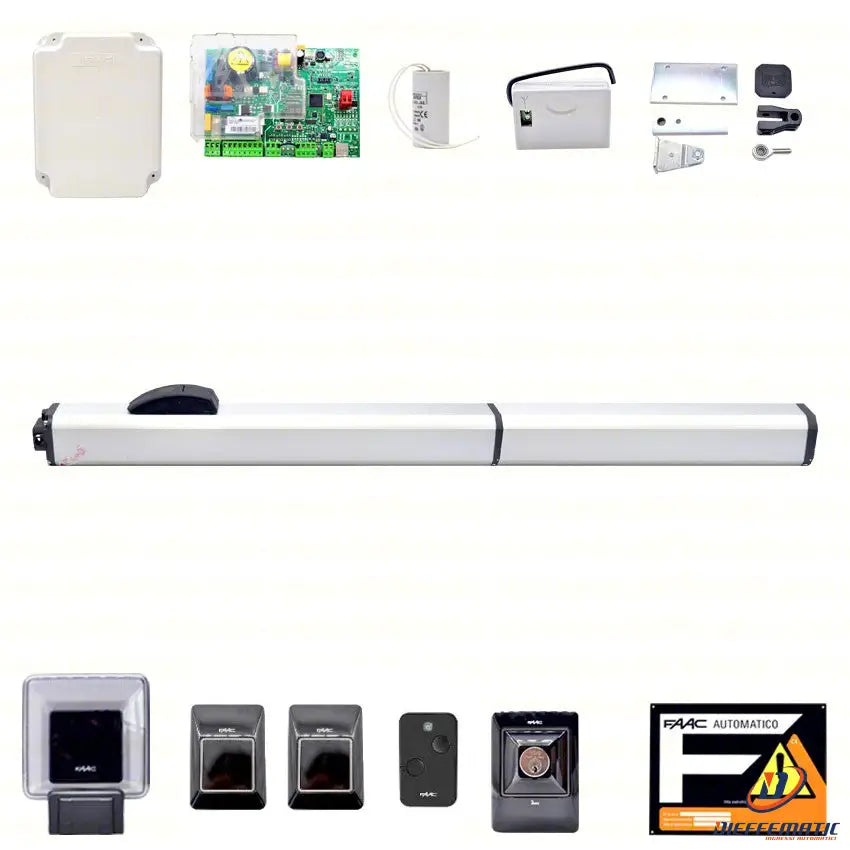

KIT CONTENTS:
1 400 SB actuator 104206
1 electronic control unit 790077
1 BOX 720119
1 XF 433 MHz 787831 receiver (EX 319006)
1 XTO 433 SLH SL DS RC 787032 2-channel transmitter
1 XLED 410029 flashing light
1 pair of XP 30B D 785121 photocells
1 XK10 B 401252 key-operated control button
1 lock with custom key 71275101
1 "FAAC Automatic" sign
400 SB TECHNICAL DATA:
Mains supply voltage: 220-240V~ 50/60 Hz
Electric motor: Single-phase asynchronous
Max. power: 220 W
Max. thrust force: 6200 N
Max. rod speed: 10 mm/s
Motor-pump unit flow rate: 1 lpm
Rod stroke: 270 mm
Max. gate leaf opening angle: 125°
Operating ambient temperature: -20°C ÷ +55°C
Thermal protection: 120°C
Protection rating: IP55
Weight: 8.6 Kg
Operating frequency: 70 cycles/hour
Max. gate leaf width: 4.00 m (with electric lock)
Oil type: FAAC HP OIL
Mounting brackets: Rear bracket for welding/bolting - front bracket for welding
Dimensions (LxWxH): 1034 x 85 x 119 mm
Electronic control unit: Not included
24-month warranty
