Description

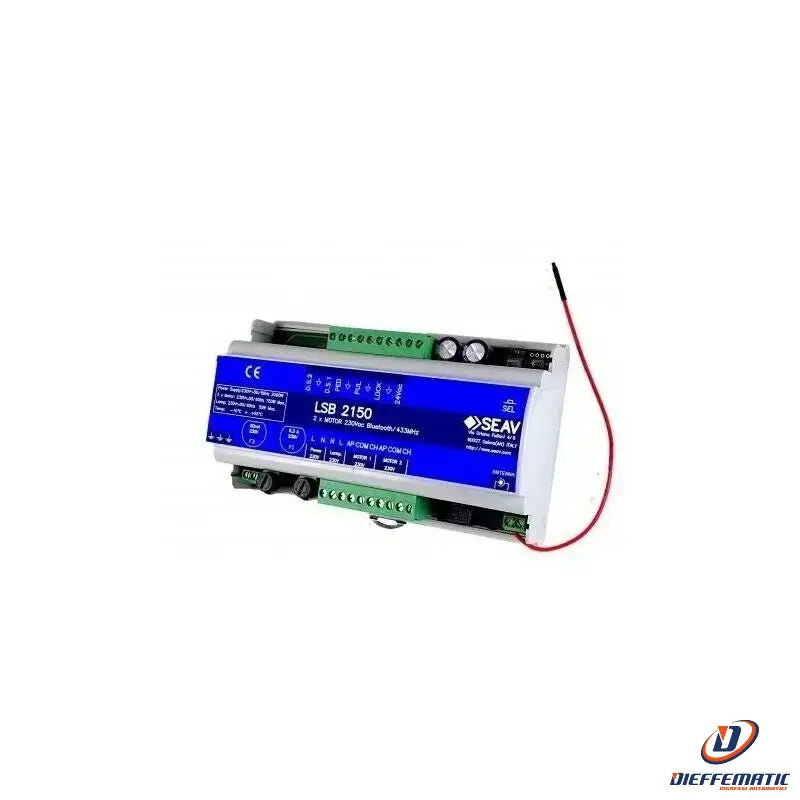

LSB 2150 433,92 MHz - Code 90340000 A version with an 868.3MHz radio module, LHB 2150, is also available on request. Electronic control unit for two-leaf gates. Equipped with initial motor start boost, motor force and deceleration force adjustment, and various functions, all easily programmable via the dedicated "BeTech" app, to meet all installation requirements. Power supply: 230Vac 50/60 Hz 2000 W max.
Flashing light output: 230 Vac 50-60 Hz / 100W max. resistive load / 50W max. inductive load
Motor outputs: 2 x 230Vac 750W max.
Electric lock output: 12Vdc 15W max.
Auxiliary power output: 24Vac 3W max.
Control and safety device inputs: 24Vdc
Number of remote controls that can be stored: 100 max.
Box dimensions: 158 x 95 x 64 mm.
Mod. LHB 2150
WARNING: The product image is for illustrative purposes only and may not fully reflect the appearance of the item that will be shipped.
