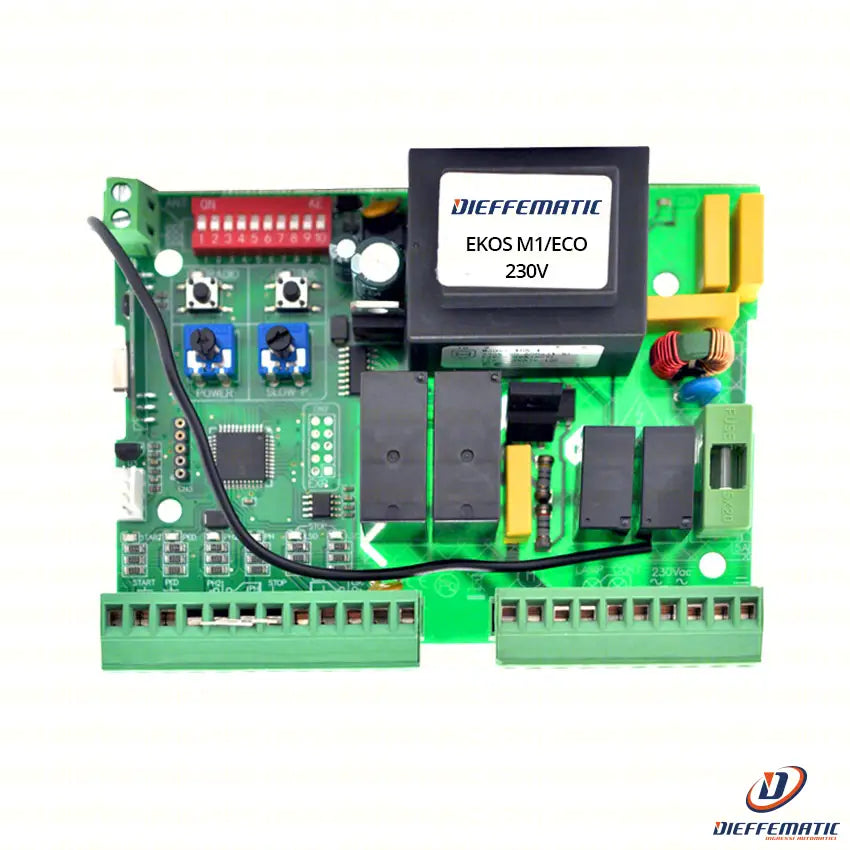

Control Unit for Sliding Gates, Up-and-Over Garage Doors, Barriers and Roller Shutters - Professional

UNIVERSAL

Compatible with all 230V motors from:
Came, Nice, Faac, Rib, Tau, Beninca, Bft, Ditec, Vds, Life, Aprimatic and all other brands.

- Built-in 433,92 MHz receiver, supporting either fixed-code or HCS rolling-code systems.

WARNING: Remote Control Compatibility Guide

The receiver built into the control unit is not universal; it communicates specifically with certain 433,92 MHz coding systems. Below is the complete list of compatible models:

1. Compatible ROLLING CODE Remote Controls

The control unit supports the high-security rolling-code systems used by the following brands and models:

Dieffematic: Equo Plus, Equo X, E010, Equo Slim and Tx-e models

BFT: Mitto and Cool models

2. FIXED-CODE Remote Controls and Universal Control

If you use fixed-code remote controls, compatibility is guaranteed with:

Aster 21/a and Aster 31/1 models

Note on universal remote controls: The Aster 21/a and Aster 31/1 models can be used as "master" controls to pair commercial universal remote controls. Simply clone the code directly from one remote control to another to make them ready to use with the control unit.

Dimensions: w.130 x h.95 x d.40 mm

GENERAL INFORMATION
This universal self-learning control unit is designed to automate one access point with a 230VAC motor and limit switches. It features an innovative self-learning procedure for quick installation and two trimmers for fine adjustment of the main parameters: deceleration force and operating force.

Available options:
- A quick self-learning programming mode, in which the control unit automatically learns the operating times and sets the start of deceleration in both opening and closing to 85% of the operating cycle.
- A professional programming mode, in which the installer can set when the gate leaf starts to decelerate, enable pedestrian opening via remote control, and select how the safety devices operate.

MAIN FEATURES
• Control and operation of automated access systems with one 230VAC motor (max. 600W)
• Normally closed (NC) open and close limit switch inputs
• Motor speed adjustable from 50-100% using a trimmer.
• Partial (pedestrian) opening via remote control or terminal block
• Dwell time adjustable from 0 to 120 seconds using a trimmer.
• Initial settings via DIP switches
• Indicator LED
• 230VAC courtesy light control, 100W max
• Built-in 433MHz receiver with storage for up to 254 radio codes
• Built-in flashing light logic control
• Complies with the applicable European Directive: R&TTE 99/05/CE

CLICK THE LINK FOR THE INSTRUCTION MANUAL:
MANUFACTURER'S INSTRUCTION MANUAL

TECHNICAL SPECIFICATIONS
Transformer power supply: 230/18VAC 10VA
Control unit power supply: 230 VAC
Motor output: 230V max. 600W
Max. current draw of motor and accessories: Max. 8 Amps, fuse-protected
Accessory power supply: 24 VDC - 150 mA, fuse-protected
Operating ambient temperature: -20°C / + 55 °C
Programming parameters: stored in EEPROM

24-month warranty
