Description

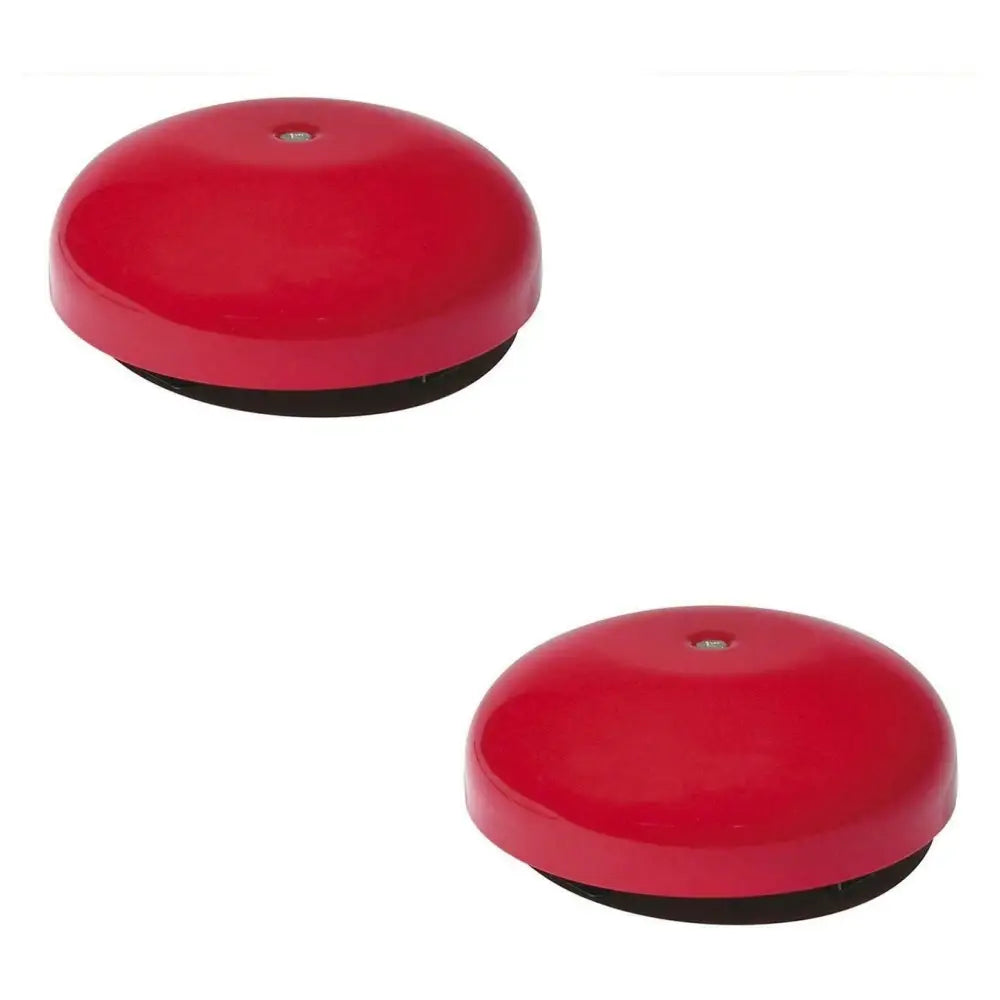

RED ELECTROMECHANICAL BELL 2 PIECES FOR FIRE ALARM 24 VDC POWER SUPPLY REPEATS SIGNALS AND ANY WARNING - SF-CBCSAMCRIB
Mod. SF-CBCSAMCRIB
SKU: SF-CBCSAMCRIB
SF-CBCSAMCRIB Electromechanical bell, incorporates a coil which, when crossed by current, creates a magnetic field, activating a hammer, which strikes the sound metal eardrum, the shape of the bell amplifies the sound. Particularly suitable for fire alarm systems, it can be used to warn of the start or end of work. Telephone call repeater. Any warning or recall. For quick installation of the bell, it is equipped with a steel fixing plate, located on the back and easily removable. Power supply 15-30 Vdc. Average absorption 25 mA at 15 Vdc. 50 mA at 30 Vdc. Acoustic power 100 dB at 24 Vdc. 90 dB at 15Vdc. Dimensions Ø 152 mm. Operating temperature - 10° C to + 70° C. Maximum relative humidity 93% no condensation. Weight: 820 gr. Red painted sonorous metal material. Degree of Protection IP 34. Electromagnetic Compatibility EN 61000-6-3 (EMC) - Part 6-3. EN 61000-6-3: 2001 EN 50130-4/ A2: 2003. Manufactured in: Italy by Securvera Product assembled and selected in the Securvera Rome factory. Guaranteed by law against defects and manufacturing defects.
LIST OF CE COMPONENT(S) FOR THE EXPANSION OR CONSTRUCTION OF A FIRE ALARM SYSTEM IN ACCORDANCE WITH THE LAW:
02 SF-CBC Badenia or Red Electromechanical Bell 90 dB Fire Alarm Signaling Power Supply. 24 Vdc. Absorbs 50 mA. Dimensions ø152XS55 mm
01 SV-GAR Guarantee Certificate; Securvera Manufacturer's Warranty As per Law: 24 Months; Qualified Installation Compliant with DM37/2008 for life
01 SV-IST Detailed Instructions for Assembly. Current fire prevention regulations on risk assessment must be respected
Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You can find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Fire Alarm System Activation Intervention Shutdown
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal Live Existence Control Line Isolator Sensors
Country of origin and Manufacture: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility other brands: Badenie Smoke Flame Temperature Detectors Conventional Systems
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SF-CBCSAMCRIB Badenia Elettromeccanica Rossa fire alarm
