Description

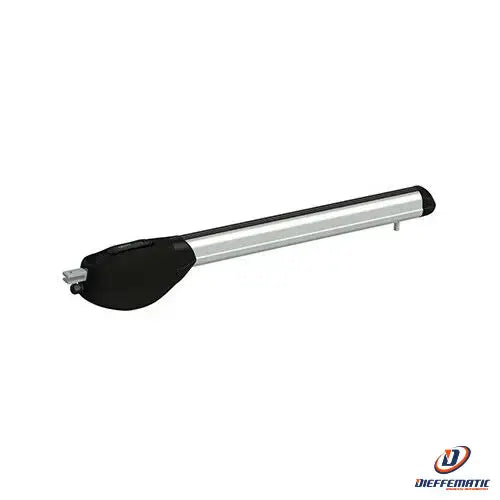

230V AC irreversible electromechanical operator, slow version with 4-pole motor, ideal for swing gates with leaf up to 5 m with 1 microswitch limit switch, complete with fixing plates
Form R20/502
SKU: R20/502
230V AC
Residential
Industrial
Commercial
Line power supply: 230V AC - 50Hz
Motor power supply: 230V AC
Rated power: 215W
Usage frequency: 40%
Thrust: 2800N
Operating temperature: -20+55° C
Degree of protection: IP43
Type of reducer: Irreversible
Maneuvering speed: 1.06 cm/s
Opening time for 90°: 42 s
Stroke: 520 mm
Motor thermal protection: 140° C
Built-in capacitor: 6.3 µF
Limit switch: Microswitch in opening (optional in closing)
Encoders: -
Maximum product dimensions mm (L x W x H): 1088.5 x 120 x 165
Standard accessories:
KT205 - Kit of three long series brackets to be welded.
24 month warranty
