Description

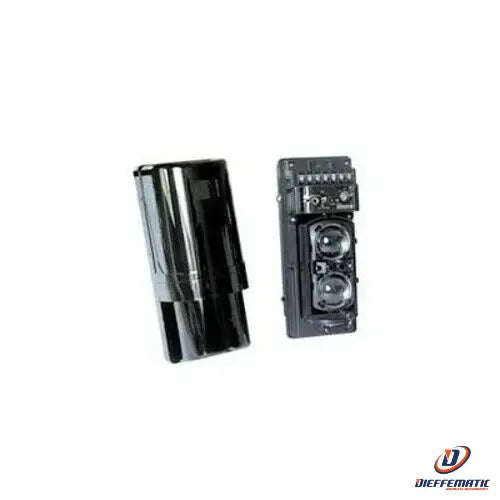

IR barrier, dual beams, max. range 150 m * outdoors, IP55
Mod. 2PH-150A
The PH range consists of a barrier with a max. outdoor range of 60 m and 1 dual IR beam, a barrier with a max. outdoor range of 150 m and 1 dual IR beam, and a barrier with a max. outdoor range of 200 m and 2 dual beams.
They operate on 4 different frequencies selectable via dip switch, feature high-quality aspherical lenses and a housing with gaskets, making them suitable for outdoor pole installations as well (brackets included).
nominal indoor range 300 m, outdoor 150 m
1 dual I.R. beam
transmission selectable on 4 different frequencies
no synchronization connection
automatic gain control (AGC)
high-precision aspherical lenses
optical alignment sight with micrometric adjustment
beam adjustment from 0° to 180°
beam interruption time adjustment
standalone use or in an INFRA column
Power supply: 10.5-28 Vdc
Current consumption: 55 mA
Relay response time: 50 to 700 ms
Detection mode: interruption of both beams
Output relay: 1 alarm N.O./N.C. - rating 0.2 A -30 Vdc
1 tamper N.O./N.C. - rating 0.2 A -30 Vdc
Adjustment angle: horizontal 0 - 180° - vertical ± 10°
Power cable cross-section: 2 x 0.75 mm2 for 5 m - 2 x 2.5 mm2 for 150 m
Signal cable cross-section: 2 x 0.22 mm2 for 150 m of cable
Protection rating: IP 55
Operating temperature: -20° to +55° C
Dimensions and weight: 100 x 247 x 100 mm - 1800 g
