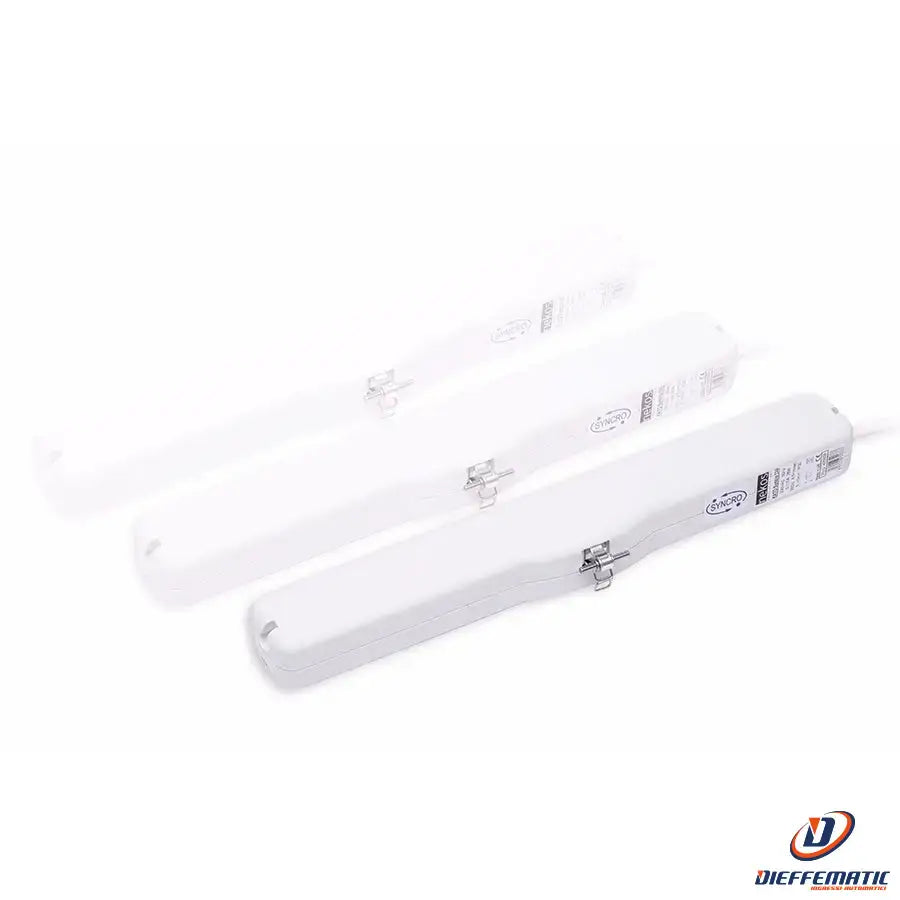

Coordinated Synchronization Actuator Nekos Kato Syncro³ 230v 300n 6030506

Actuator for coordinated synchronization

Model KATO SYNCRO³ 230V 300N

SKU: 6030506

Adjustable stroke up to 400 mm
Color: Grey
For the SYNCRO³ version the price is each engine.

Kato Syncro³it is the evolution of the original Nekos patent which now allows perfect coordinated synchronization of up to 8 actuators without the use of external control units.
Synchro³it is the only real window actuator synchronization existing on the market and it is only one of the many patents that Nekos has registered, confirming the high technology achieved by the company and its R&D department.

Electric actuator with double-row four-link articulated chain, enclosed in a suitable container made of high-resistance composite material (polyamide reinforced with glass fibre).
• Suitable for moving top-hung windows, transom windows, domes and dormer windows;
• Power in traction and thrust 300N;
• Powered at 230V AC 50Hz or, alternatively, at low voltage 24V DC;
• Electronic limit switch in opening with variable strokes and selectable at any time by dip-switch. Power absorption closing limit switch;
• Supplied complete with brackets for quick coupling actuator mounting without the use of screws (patented); bottom hung or protruding brackets with quick coupling/release (patented);
• Can be connected in parallel.

Complies with the relevant EU Directives (EMC Directives, Low Voltage Directives).

Applications:
Pivot Window
Attic window
Vasistas window
Protruding windows and doors

24 months warranty
