Coordinated Synchronization Actuator Nekos Kato Syncro³ 230v 300n 6030505

Save €7,95

Model: eb-233722440646
Warranty: 24 months
Supplier: Nekos
Price:
€151,13 €159,08

Do you need help with this product? Contact us
Whatsapp-Share

Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 10 working days

Description

Actuator for coordinated synchronization

Model KATO SYNCRO³ 230V 300N

SKU: 6030505

Adjustable stroke up to 400 mm
White color
For the SYNCRO³ version the price is each engine.

Kato Syncro3it is the evolution of the original Nekos patent which now allows perfect coordinated synchronization of up to 8 actuators without the use of external control units.
Synchro3it is the only true synchronization of window actuators on the market and is just one of the many patents that Nekos has registered, confirming the high technology achieved by the company and its R&D department.

Electric actuator with articulated chain with four links in double row, enclosed in a suitable container of high resistance composite material (polyamide loaded with glass fibre).
• Suitable for moving top-hung windows, transom windows, domes and dormer windows;
• Pulling and pushing power 300N;
• Powered at 230V AC 50Hz or, alternatively, at low voltage 24V DC;
• Electronic opening limit switch with variable strokes and selectable at any time via dip-switch. Power absorption closing limit switch;
• Supplied complete with brackets for mounting the quick coupling actuator without the use of screws (patented); brackets for transom or projecting doors with quick hooking/unhooking (patented);
• Can be connected in parallel.

Complies with the relevant EU Directives (EMC Directives, Low Voltage Directives).

Applications:
Pivot Window
Attic window
Vasistas window
Protruding windows

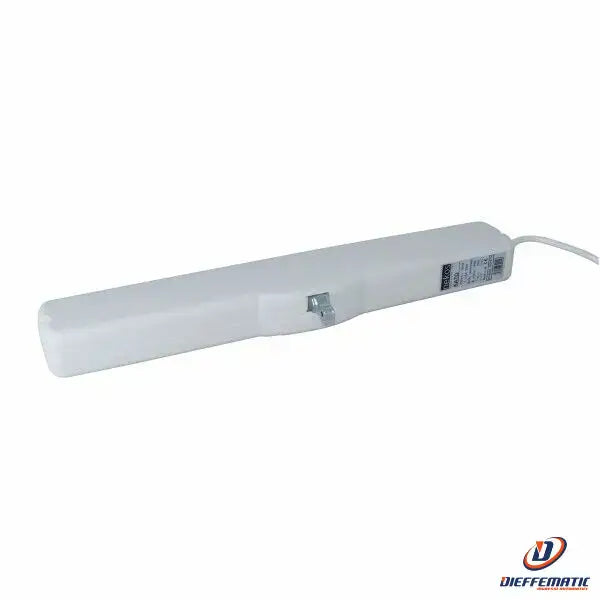

ATTENTION: the image is only intended to represent the product, the aesthetic characteristics of the object may differ slightly

24 months warranty
