GENIUS BRAIN 592 CONTROL UNIT
SKU: JA592

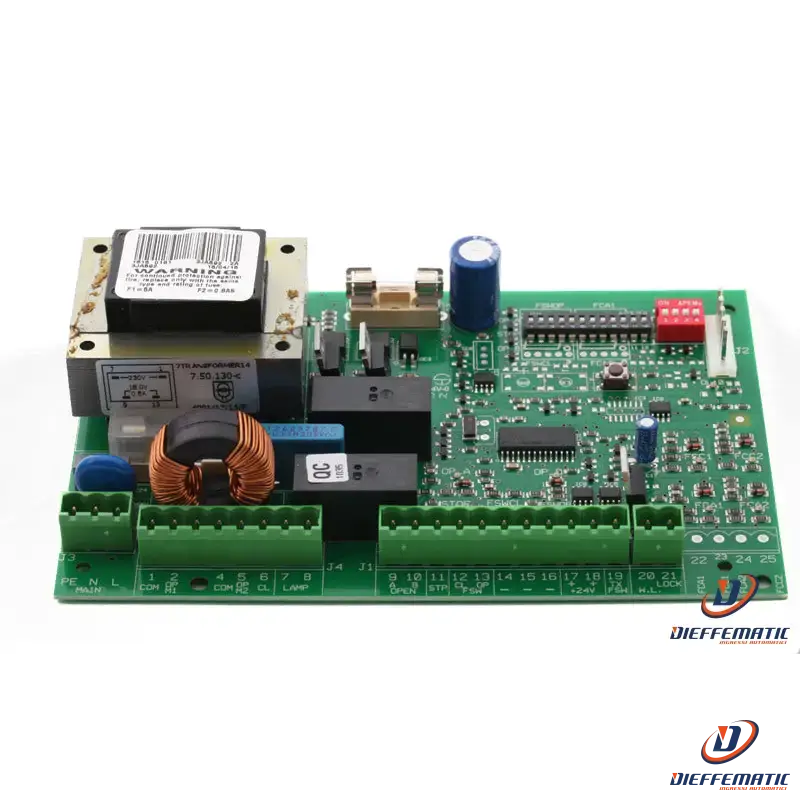

Original FAAC GENIUS JA592 control unit
Replacement electronic control board for Genius swing gate automation systems, also suitable for universal use with motors powered by 230V.
Adjustable via dip switches, with a 12Vac/dc output for managing the electric lock and a 24 Vdc output for accessories.
Safety devices for opening and closing, with LED fault indicators; opening and pedestrian opening commands via radio or wired connection; deceleration during both movements.
Limit switch management, allowing the control board to operate two motors with electric limit switches for opening and closing.
5-pin Molex connector for plugging in the radio receiver (not included with the control board). With this solution, the remote control memory can be retrieved and transferred to another control board.
Power supply voltage 230Vac
Max. motor load 800 W
Max. accessory load 500 mA
Accessory power supply 24 Vdc
Max. electric lock load 15 VA
Operating temperature -20°C +55°C
Primary protection fuse 5 A
Protection fuse on accessory line 800mA
Dimensions 165×117 mm
24-month warranty
