Control Unit For Swing And Sliding Gates Seav Lrs 2239 New 12vdc Set 96370000

Save €10,12
Model: eb-223863561863
Warranty: 24 months
Supplier: Seav
Price:
€192,38 €202,50
COUPON 'BLACK10' -10%
Do you need help with this product? Contact us
Whatsapp-Share
Share this product
Email-Share Whatsapp-Share Facebook-Share Copy-Share

Shipping

shipping in 2-4 business days

Description

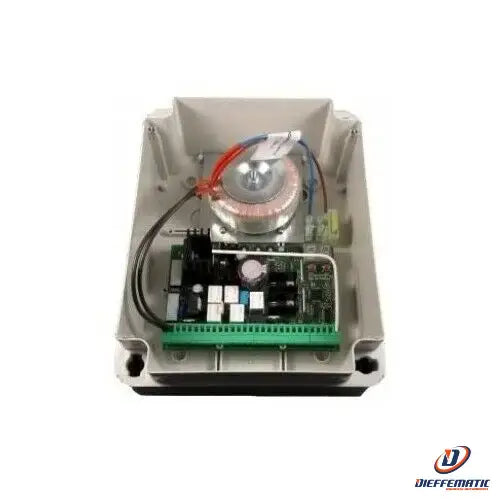

LRS 2239 NEW SET 12Vdc 433.92 MHz - Code 96370000
Also available on request in the 868.3MHz version

Low voltage electronic control unit for swing and sliding gates, supplied with safety transformer and possibility of connecting a buffer battery or a solar panel. Available in 12Vdc or 24Vdc versions.

Built-in radio receiver. Obstacle detection function. Motor force and speed adjustment. Possibility to configure some inputs according to needs. Adjustable slowdown power and numerous other functions that make this control unit suitable to satisfy the most varied installation needs.

Transformer power supply: 230Vac 50/60 Hz

150W Max.
Central power supply: 12/20*Vac 50/60 Hz

150W Max.
Flashing Output: 12/24*Vdc 4W Max.
Emergency battery input: 12/24*Vdc 7A/h Max.
Motor outputs: 12/24*Vdc 2 x 70 W Max.
Electric lock output: 12/24*Vdc 12W Max.
Photocell power supply: 12/24*Vdc 3 W Max.
Indicator light output: 12/24*Vdc 3 W Max.
Max. TX Codes in memory: 120(CODE or CODE PED)
Container dimensions: 240x185x110 mm.

*Depending on the 12Vdc or 24Vdc version.

Mod. LRS 2239 NEW 12Vdc SET

ATTENTION: the product image is purely indicative and may not fully reflect the aesthetic characteristics of the object that will be shipped.
