Description

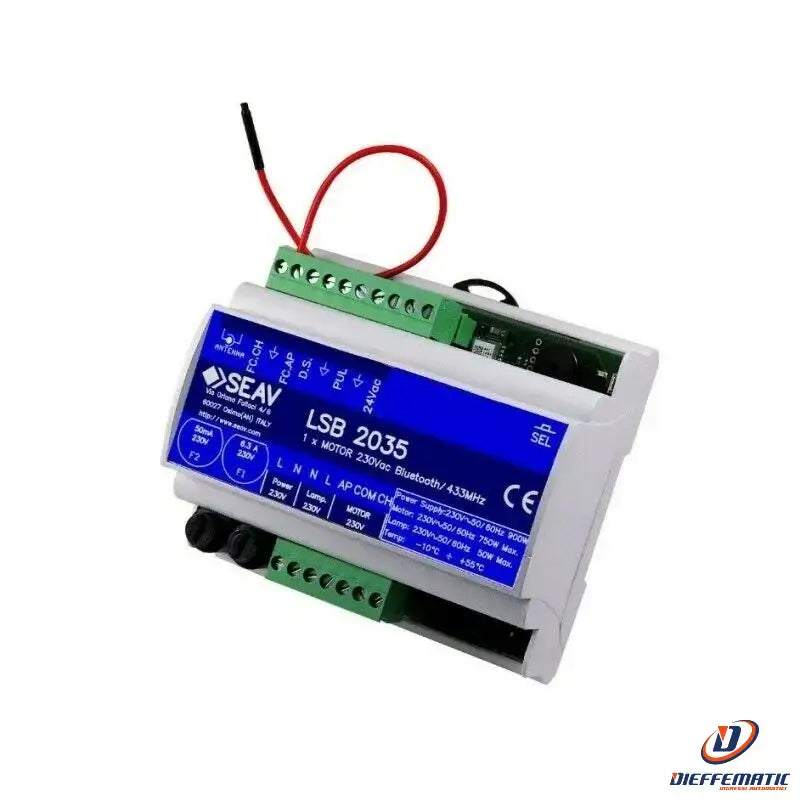

LSB 2035 433,92 MHz - Cod. 90380000 Also available on request in a version with an 868.3MHz radio module, LHB 2035. Control unit for roller shutters and up-and-over doors. Inputs for opening and closing limit switches, programmable motor run time, selectable courtesy light and Hold-to-Run mode. Equipped with several other functions, all easily programmable using the dedicated BeTech app. Power supply: 230Vac 50/60 Hz 900 W max. 750W max. 3W max. The BeTECH app for Android can be downloaded free of charge from Google Play Store.
Flashing light output: 230Vac 50/60 Hz / 100W resistive load max. / 50W inductive load max.
Motor output: 230Vac
Auxiliary power supply output: 24Vac
Control inputs, safety devices and limit switches in BT: 24Vdc
Number of remote controls that can be stored: 100 max.
Box dimensions: 105 x 95 x 64 mm.
Mod. LHB 2035
WARNING: The product image is for illustrative purposes only and may not fully reflect the appearance of the item that will be shipped.
