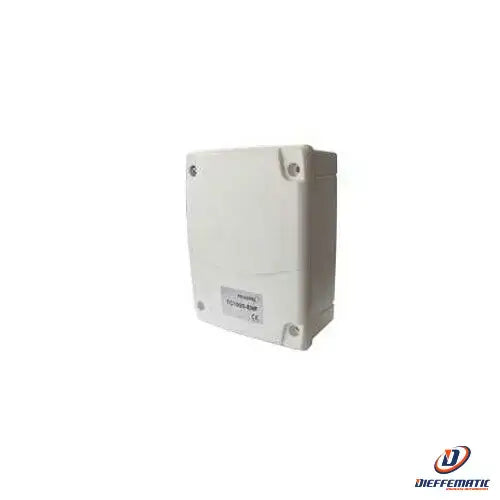

Control Panel For Metal Shutters Prastel Tc1000-enf Automation New

Control panel for metal roller shutters. Integrated 433,920 MHz radio receiver, 1000 W output, with the option to connect the TCO6RX-ENF plug-in radio receiver

Mod. TC1000-ENF

For 1 230 Vac motor.
The application is mainly intended for operating metal roller shutters or industrial sectional doors.

Power 1000 Watts
Integrated 433,920MHz radio module
Open / close push-button input
Photocell input
Dead-man function during opening and/or closing via push-button or remote control
Easy transmitter programming
Power supply: 230 Vac +15%, -15%; 50Hz
Photocell power supply: 24 Vdc 3W max
Motor output: 230 Vac -1000W max
Courtesy light output: 230 Vac - 500W max
Operating temperature: -10°C / +55°C
Courtesy light time: 3 minutes
Storable transmitters: 1000
Dimensions: 180 x 135 x 80 mm
Weight: 770 g
