Description
External Magnetic Contact With Perforated Mounting Flanges, Vacuum-Sealed Reed Switch, Magnetic Sensitivity 13 mm, Max. Voltage 30 V 0.5 A Resistive Load, 4-Wire Output, 2 NC and 2 Tamper, ABS Cover, IP65 Protection
Mod. ST-405CMABFTE
SKU: ST-405CMABFTE

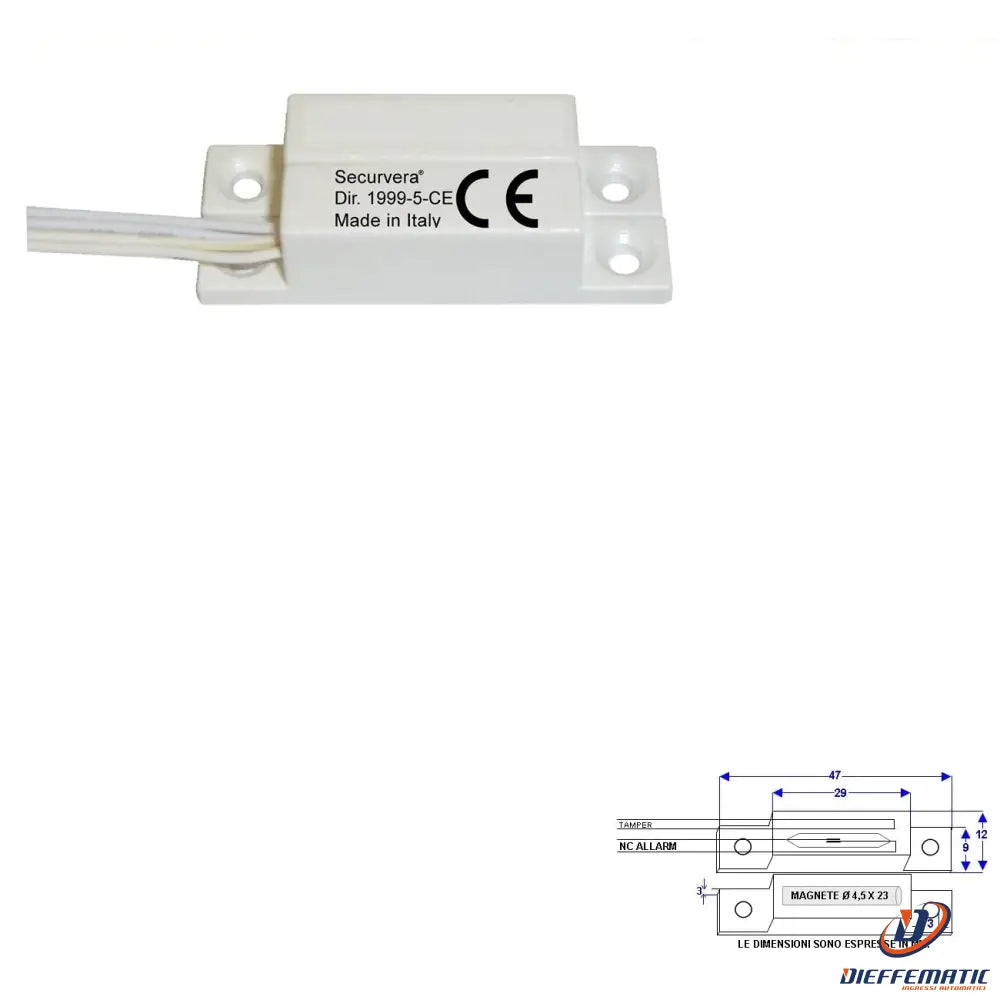

ST-405 NC magnetic contact with vacuum-sealed glass reed switch and perforated mounting flanges. Maximum current 500 mA at 30 V. Maximum power 10 W. Magnetic range 13 mm. Consists of 2 parts of the same shape. The part with the wires contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close in the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous window and door frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part, i.e. the part with the wires, on the fixed part of the frame, and the magnet opposite it on the moving part (door). The protected frames must be fully closed. Complies with CEI 79/2. Made of ABS plastic. IP 65 protection. Wired connection. Complies with CEI 79-2 Level 1. Rectangular plastic housing with perforated flanges. Suitable for monitoring the opening of non-ferrous window and door frames. Installed dimensions L46XH23XS8 mm. Weight 12 g. Product assembled at the selected facility at Securvera's Rome plant. Guaranteed by law against manufacturing defects and flaws. Product assembled and selected at Securvera's Rome plant. Guaranteed by law for 24 months against manufacturing defects and flaws. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
01 ST-405 ABS Brick-Shaped Magnetic Contact, VACUUM-SEALED REED SWITCH, Max. Current 30 V 0.5 A, IP 65 Protection, 4 Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified Installation Requirements, Ministerial Decree 37/2008, lifetime warranty against manufacturing defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
