Description
External Magnetic Sensor with Perforated Mounting Flanges, NC Reed Switch, Vacuum-Sealed Glass Bulb, Magnetic Sensitivity 13 mm, Max. Voltage 30 V, 0, A Resistive Load, 4 Wires, 2 NC and 2 Tamper, ABS Cover, IP65
Model ST-405CMABFTC
SKU: ST-405CMABFTC

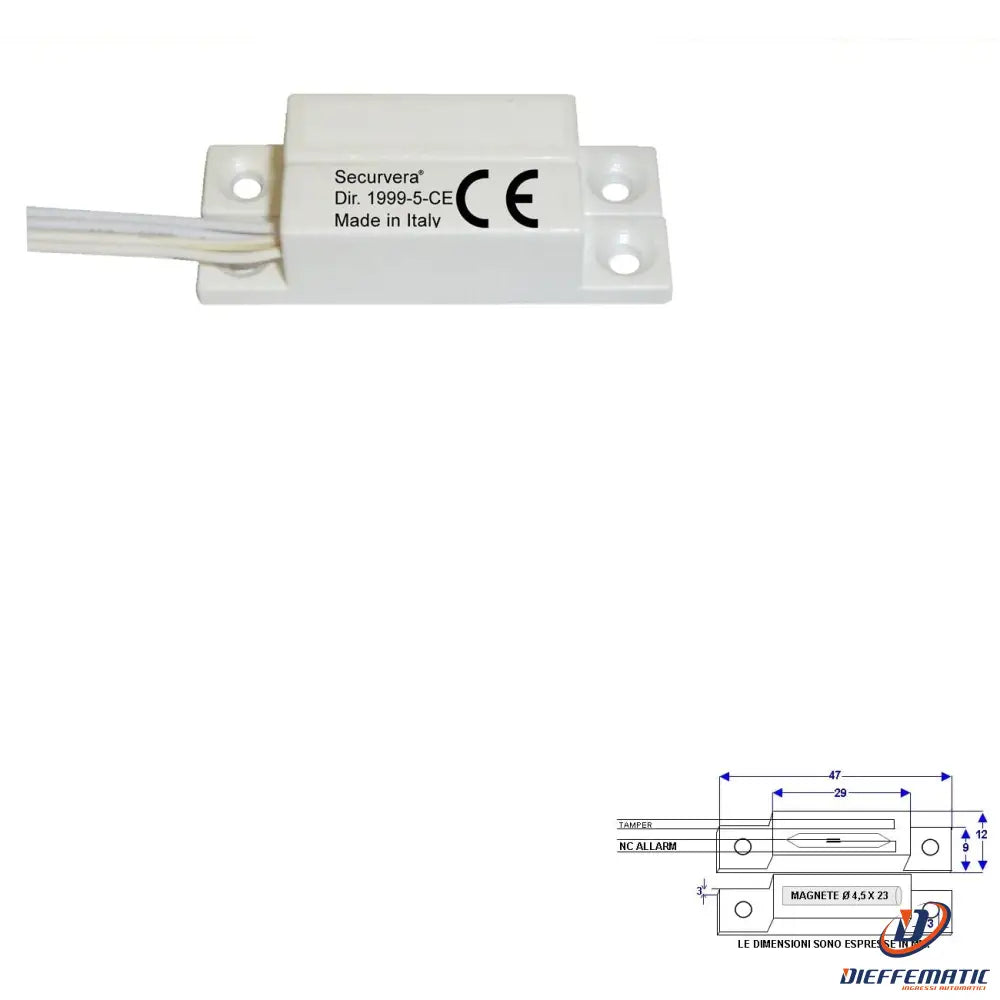

ST-405 NC magnetic contact with vacuum-sealed glass reed switch and perforated mounting flanges. Maximum switching current 500 mA at 30 V. Maximum power 10 W. Magnetic range 13 mm. Consists of 2 parts with the same shape. The part with the wires contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close closes the contacts to the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and much more. Install the contact part, i.e. the part with the wires, on the fixed part of the frame, and the magnet opposite it on the movable part (door). The protected frames must be fully closed. Complies with CEI 79/2. Made of ABS plastic. IP 65 protection. Wired connection. Complies with CEI 79-2 Level 1. Rectangular plastic housing with perforated flanges. Suitable for monitoring the opening of non-ferrous frames. Installed dimensions L46XH23XS8 mm. Weight 12 g. Product assembled at the facility selected by Securvera in Rome. Guaranteed by law against manufacturing defects and faults. Product assembled and inspected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. EEC 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
01 ST-405 ABS Magnetic Contact, Brick Shape, Vacuum-Sealed REED, Max. Current 30 V 0.5 A, IP 65 Protection, 4 Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified Installation Requirements D.M.37/2008, lifetime coverage against manufacturing defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
