Description
Magnetic Contact with NC Output for Outdoor Alarm, Ten Pieces, Reed Sensor, Magnetic Sensitivity 13 mm, Max. Switching Voltage 30 V 0.5 A, Resistive Load, 2 Terminals, Brown ABS Cover, IP40 Protection
Mod. ST-41MCMEPFVE
SKU: ST-41MCMEPFVE

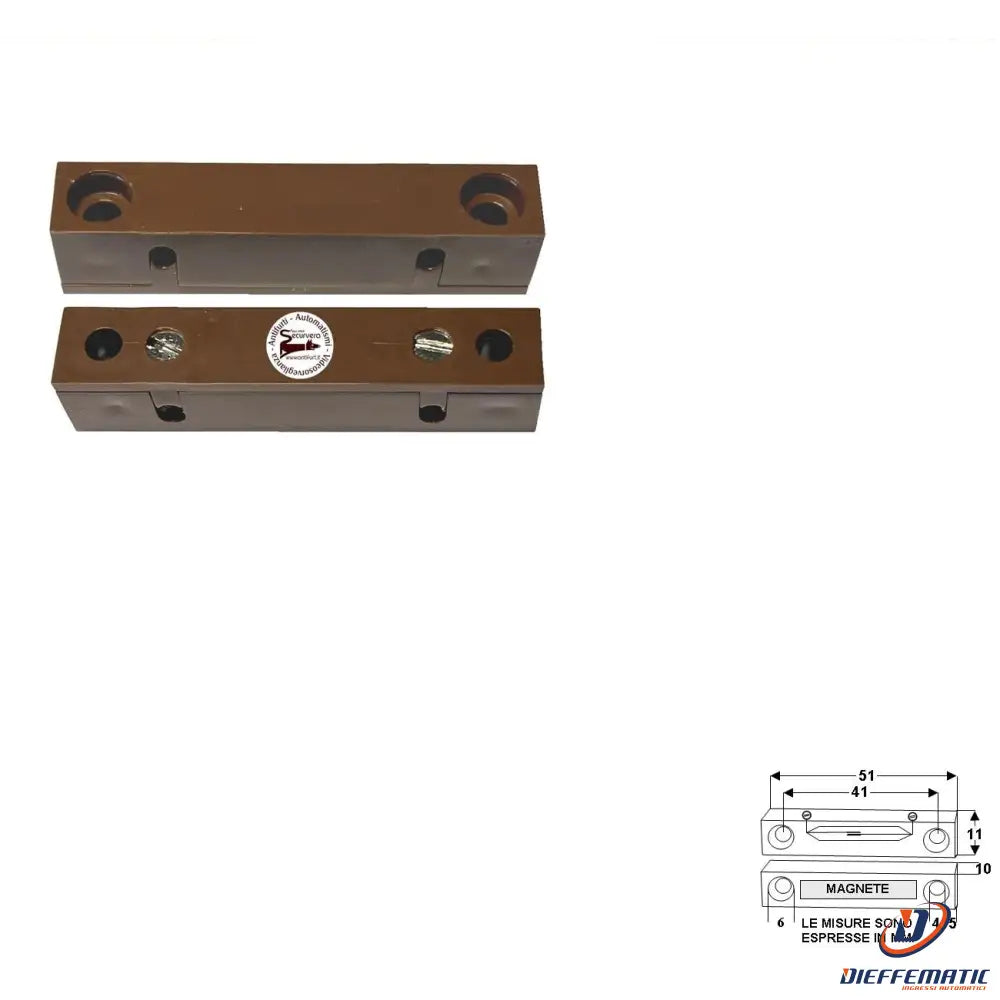

ST-41M NC magnetic contact with vacuum-sealed glass reed switch and mounting holes. Maximum current rating: 500 mA at 30 V. Maximum power: 10 W. Magnetic gap: 13 mm. Comprises 2 pieces of the same shape. The part with the terminals contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close to the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous frames and fittings in general, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part, i.e. the part with the terminals, on the fixed part of the frame (frame), and the magnet opposite it on the moving part (door). The protected frames and fittings must be fully closed. Complies with CEI 79/2. Connection: 2 terminals. Compliant with CEI 79-2 Level 1. Brown rectangular ABS housing with mounting holes. IP40 protection. Suitable for monitoring the opening of non-ferrous frames and fittings. Dimensions L51XH11XS10 mm. Weight 12 g. Assembled and inspected at the Securvera facility in Rome. Guaranteed for 24 months as required by law against manufacturing defects and faults. Complies with European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
01 ST-41M ABS Magnetic Contact, Brick-Shaped, RED Vacuum-Sealed Reed Switch, Max. Current 30 V 0.5 A, IP41 Protection, NC Contact, 2 Terminals
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Protection Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
