Description
Door Protection, Magnetic Contact, Surface Mount, NC Reed Alarm Sensor, 13 mm Magnetic Sensitivity, Max Switching Voltage 30 V 0.5 A Resistive Load, NC Output, 2 Terminals, Brown ABS Cover, IP40
Mod. ST-41MCMEPFVD
SKU: ST-41MCMEPFVD

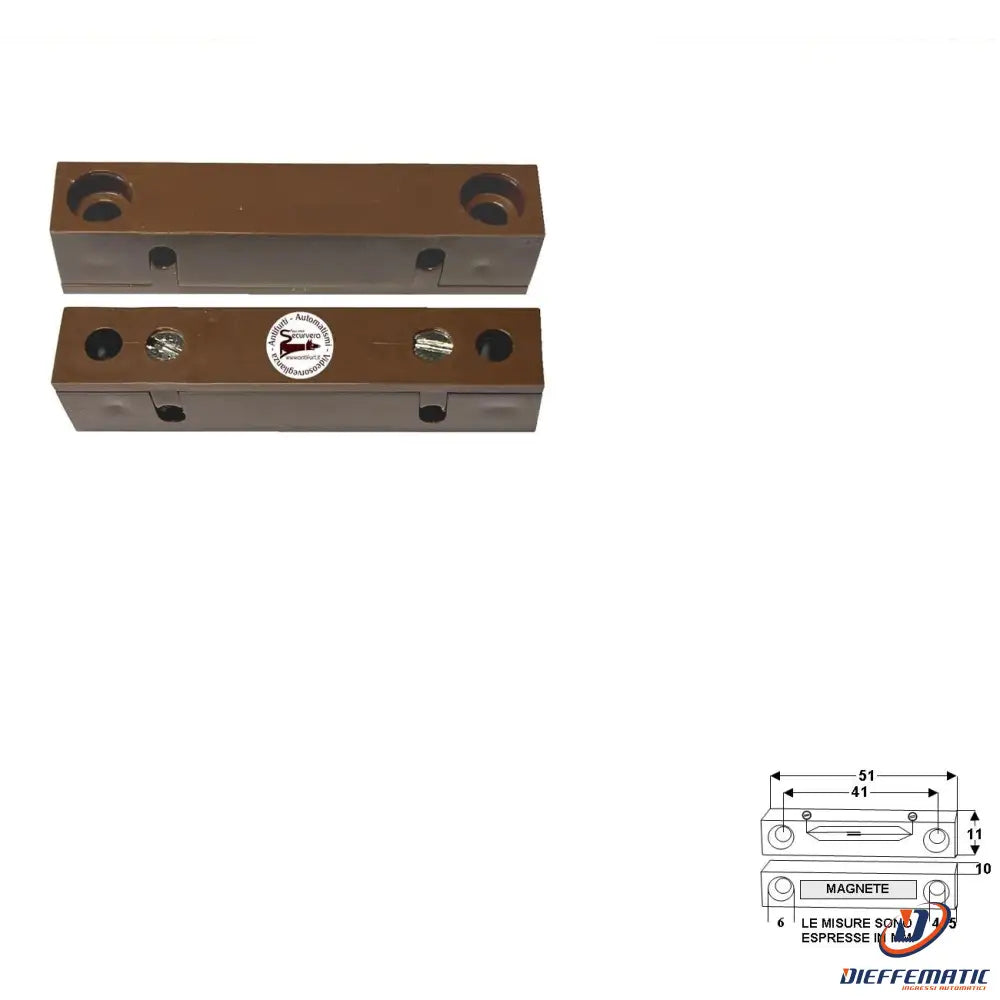

ST-41M NC magnetic contact with vacuum-sealed glass reed switch and mounting holes. Maximum switching current: 500 mA at 30 V. Maximum power: 10 W. Magnetic field range: 13 mm. Consists of 2 parts of the same shape. The part with the terminals contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close to the NC position. The other part contains a permanent magnet. Operating temperature: -25 to +70°. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the part with the terminals, must be installed on the fixed part of the frame, while the magnet is positioned opposite it on the moving part (door). The protected frames must be fully closed. Complies with CEI 79/2. Connection: 2 terminals. Complies with CEI 79-2 Level 1. Brown rectangular ABS housing with mounting holes. IP40 protection. Suitable for monitoring the opening of non-ferrous frames. Dimensions L51XH11XS10 mm. Weight 12 g. Product assembled and selected at the Securvera factory in Rome. Covered by the statutory 24-month warranty against manufacturing defects and faults. Complies with European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
01 ST-41M ABS Magnetic Contact, Brick-Shaped, VACUUM-SEALED REED SWITCH, Max Current 30 V 0.5 A, IP41 Protection, NC Contact, 2 Terminals
01 SV-GAR Statutory Warranty Certificate: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
