Description
Outdoor Magnetic Anti-Theft Sensor, Vacuum-Sealed Reed Contact, 13 mm Magnetic Sensitivity, Max. Switching Voltage 30 V 0.5 A, Resistive Load, NC Output, 2 Terminals, Brown ABS Cover, IP40 Protection
Mod. ST-41MCMEPFVA
SKU: ST-41MCMEPFVA

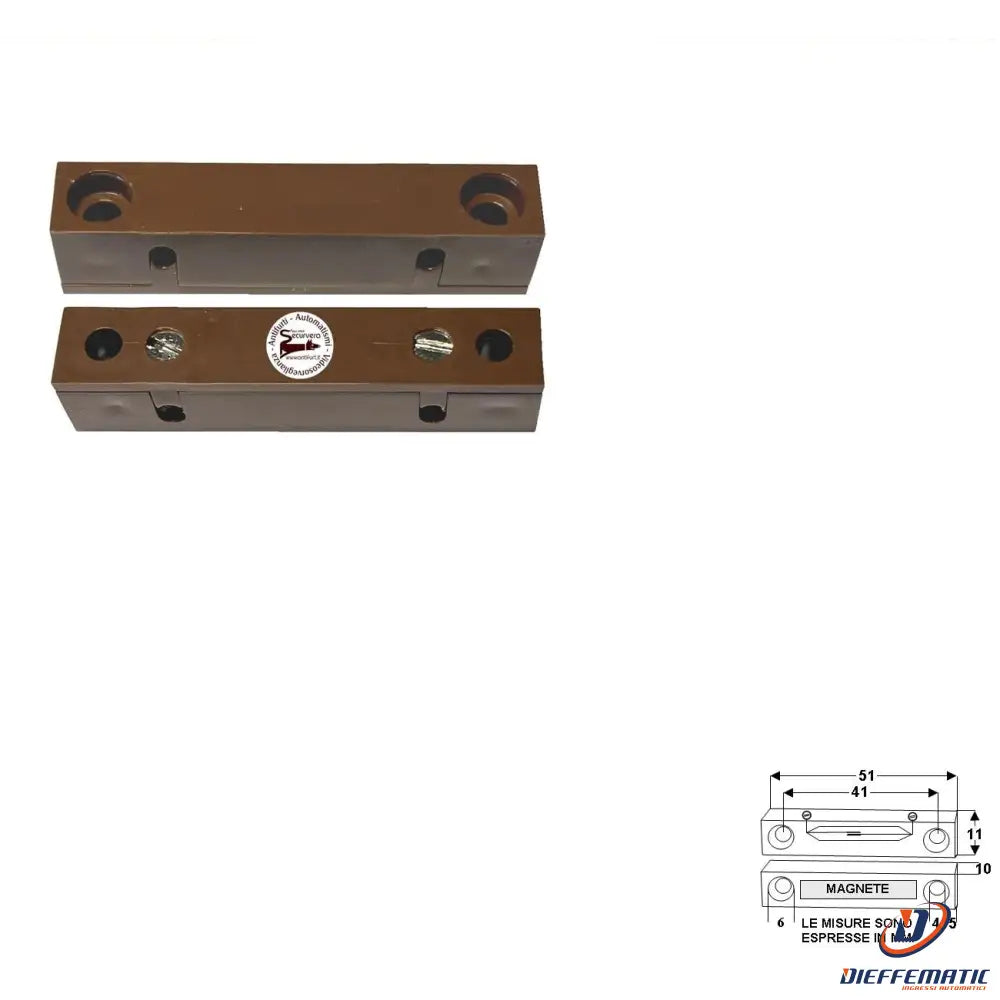

ST-41M NC magnetic contact with vacuum-sealed glass reed switch and mounting holes. Maximum switching current 500 mA at 30 V. Maximum power 10 W. Magnetic range 13 mm. Consists of 2 pieces of the same shape. The part with the terminals contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close in the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous fixtures in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, that is, the part with the terminals, must be installed on the fixed part of the fixture (frame), with the magnet aligned on the moving part (door). The protected fixtures must be fully closed. Complies with CEI 79/2. Connection: 2 terminals. Complies with CEI 79-2 Grade 1. Brown rectangular ABS housing with mounting holes. IP40 protection. Suitable for monitoring the opening of non-ferrous fixtures. Dimensions L51XH11XS10 mm. Weight 12 g. Assembled and tested at the Securvera facility in Rome. Covered by a 24-month statutory warranty against manufacturing defects and faults. Complies with European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
01 ST-41M RED Vacuum-Sealed Magnetic Contact in Brick Shape, ABS, Max. Current 30 V 0.5 A, IP41 Protection, NC Contact, 2 Terminals
01 SV-GAR Statutory Warranty Certificate: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Warranty Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
