Description
Door Protection Magnetic Contact External Mounting Alarm Reed NC Sensor Magnetic Sensitivity 13 mm Max. Switching Voltage 30 V 0.5 A Resistive Load NC Output 2 Terminals White ABS Cover IP40
Mod. ST-41BCMEPFVD
SKU: ST-41BCMEPFVD

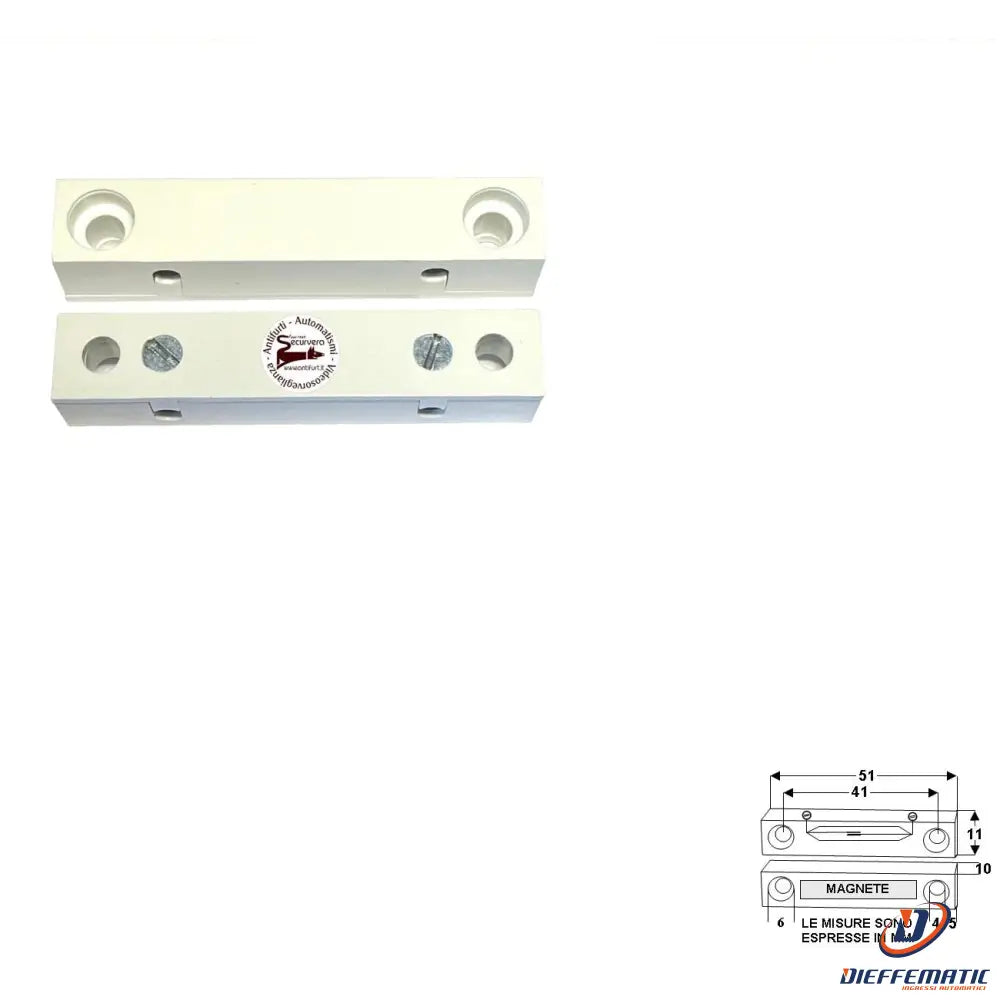

ST-41B NC magnetic contact with vacuum-sealed glass reed switch and mounting holes. Maximum switching current 500 mA at 30 V. Maximum power 10 W. Magnetic gap 13 mm. Consists of 2 pieces of the same shape. The part with the terminals contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close in the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part, i.e. the part with the terminals, on the fixed part of the frame, and the magnet opposite it on the moving part (door). The protected frames must be completely closed. Complies with CEI 79/2. Connection: 2 terminals. Complies with CEI 79-2 Level 1. White rectangular ABS housing with mounting holes. IP40 protection. Suitable for monitoring the opening of (non-ferrous) frames. Dimensions L51XH11XS10 mm. Weight 12 g. Product assembled and inspected at the Securvera facility in Rome. Guaranteed by law for 24 months against manufacturing defects and faults. Complies with the following European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
01 ST-41B Brick-Shaped ABS Magnetic Contact RED Vacuum-Sealed, Max. Current 30 V 0.5 A, IP41 Protection, NC Contact, 2 Terminals
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified installation in accordance with Ministerial Decree 37/2008, lifetime coverage against manufacturing defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
