Shipping
Shipping in 5-10 business days
Description
Outdoor Magnetic Anti-Theft Sensor, Vacuum-Sealed Reed Contact, Magnetic Sensitivity 13 mm, Max. Switching Voltage 30 V 0.5 Ah, Resistive Load, NC Output, 2 Terminals, White ABS Cover, IP40 Protection
Mod. ST-41BCMEPFVA
SKU: ST-41BCMEPFVA

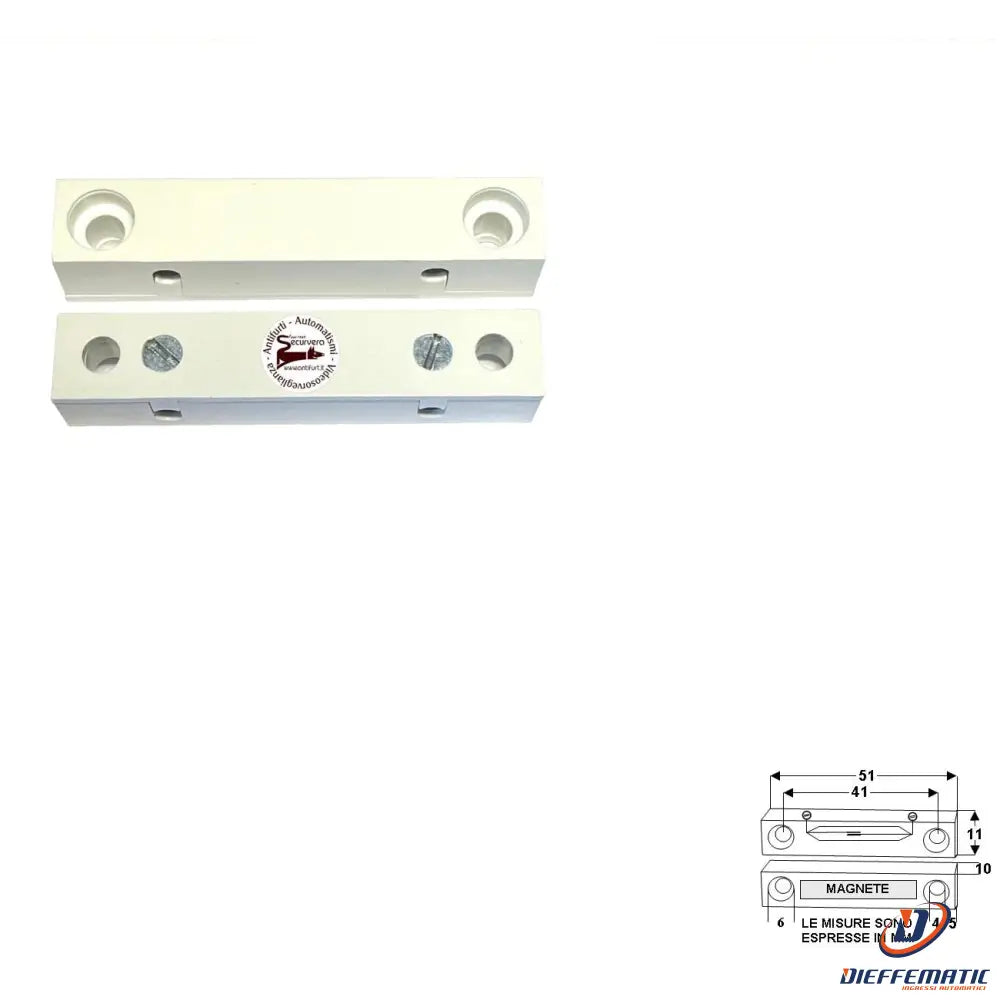

ST-41B NC magnetic contact with vacuum-sealed glass reed switch and fixing holes. Maximum current 500 mA at 30 V. Maximum power 10 W. Magnetic range 13 mm. Consists of 2 pieces of the same shape. The part with the terminals contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet close causes the contacts to close to the NC position. The other part contains a permanent magnet. Operating temperature from -25 to +70°. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part, that is, the part with the terminals, on the fixed part of the frame; install the magnet opposite it on the moving part (door). The protected frames must be completely closed. Complies with directive CEI79/2. Connection: 2 terminals. Compliant with CEI 79-2 Level 1. White rectangular ABS housing with fixing holes. IP40 protection. Suitable for monitoring the opening of (non-ferrous) frames. Dimensions L51XH11XS10 mm. Weight 12 g. Product assembled and inspected at the Securvera facility in Rome. Covered by a 24-month warranty against manufacturing defects and faults, as required by law. Complies with European directives: EN50131-2-6 CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF COMPONENTS FOR SALE:
01 ST-41B ABS Brick-Shaped Magnetic Contact, REED, Vacuum-Sealed, Max. Current 30 V 0.5 A, IP41 Protection, NC Contact, 2 Terminals
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified Installation Requirements D.M.37/2008, lifetime coverage against manufacturing defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
