Description
CHANGEOVER C.NC.NA MAGNETIC CONTACT FOR INTERLOCKED DOOR, METAL FRAME, SECURITY
Model ST-46SCMCCIMA
SKU: ST-46SCMCCIMA

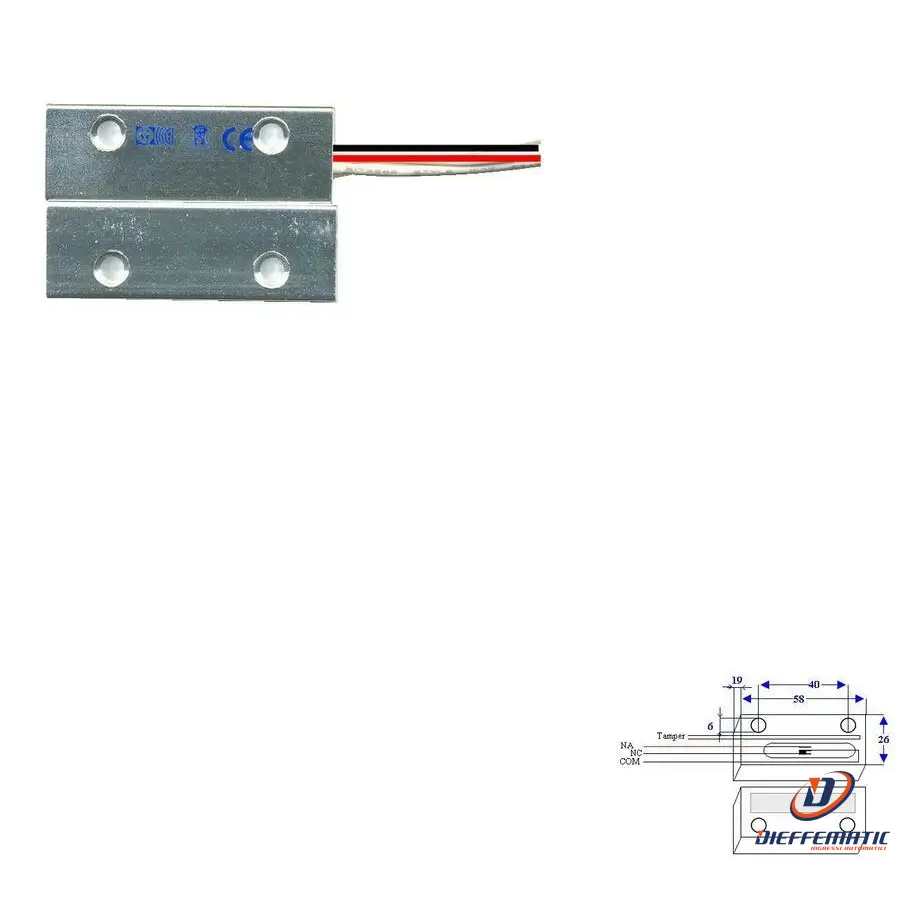

ARMORED MAGNETIC CONTACT FOR SECURITY DOORS AND METAL FRAMES
ST-460 armored magnetic contact with C.NC.NA configuration in a vacuum-sealed glass capsule. Maximum current: 1 A at 30 V, resistive load. 5-wire connection; 3 wires: Black Common, Red NC at rest, White NC with magnet present. 2 tamper wires. Magnetic range 25 mm. Suitable for monitoring the opening of security doors, steel windows, gates, metal frames. Rectangular metal housing with mounting holes. Installed dimensions L50XH17XS10 mm. Measurements are expressed in mm; where not specified, they can be determined by symmetry. General characteristics and specifications: Wired connection, operating temperature from -25 to +70°. IP 65. Voltage 100 Vdc. Current 1 Ah. Maximum power 10 W. Made of non-magnetic metal (aluminum); consists of 2 pieces of the same shape with mounting holes. The part with the wires contains a vacuum-sealed reed contact in a glass capsule, in the NO position; bringing a magnet close causes the contacts to close in the NC position. The other part contains a high-tolerance permanent magnet. Weight 0.63 kg. The contact part, i.e. the one with the wires, must be installed on the fixed part of the frame; the magnet is installed opposite it on the moving part (door). The protected frames must be completely closed. Complies with directive CEI79/2.
LIST OF COMPONENTS FOR SALE:
01 ST-46S Armored Magnetic Contact with Hand-Finished Profiled Aluminum Body, C.NC.NA Contact, 1 A at 30 V.
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE
MANUFACTURER'S MANUAL
24-month warranty
