Description
Outdoor Magnetic Detector, 1 Piece, for Burglar Alarm on Doors and Frames, Vacuum-Sealed NC Reed Switch, Magnetic Sensitivity 13 mm, Max. Voltage 30 V, Resistive Load 1 A Max., IP65, 4 Wires, 2 NC and 2 Tamper
Mod. ST-400CMMBFTC
SKU: ST-400CMMBFTC

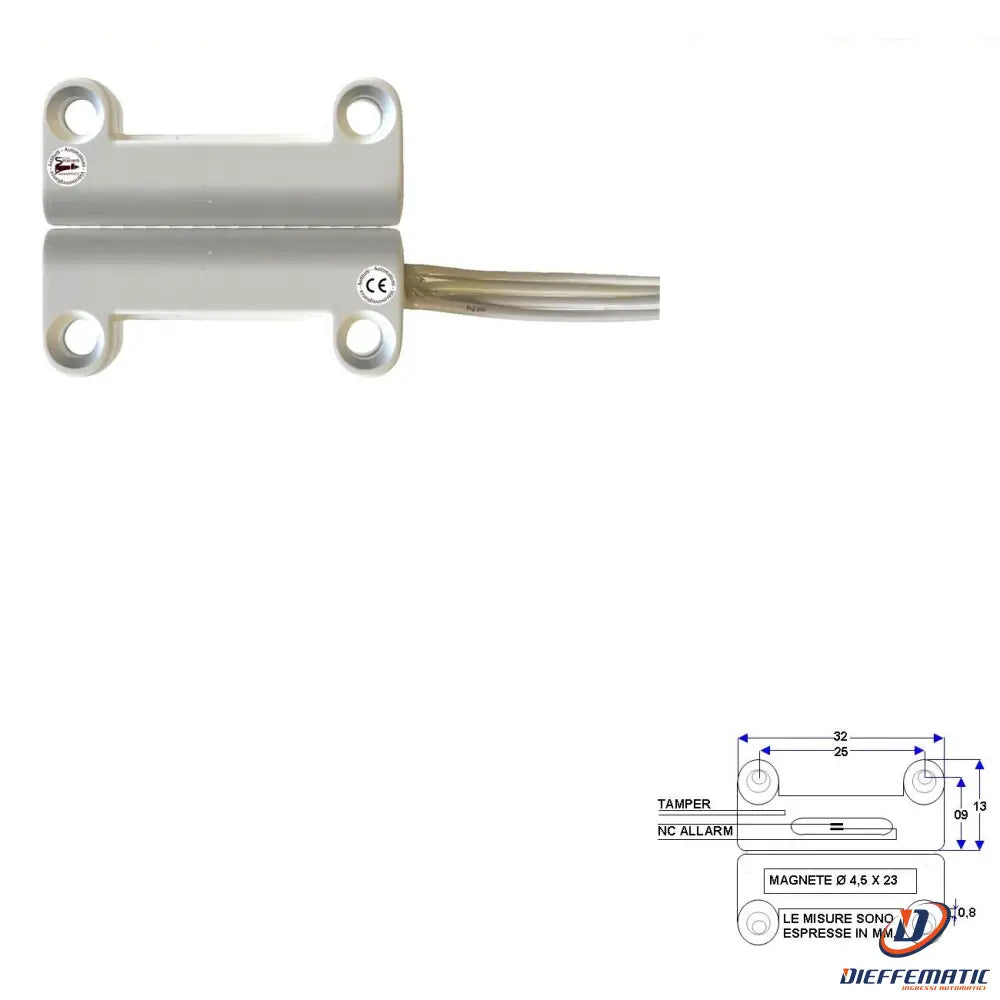

ST-400 Outdoor NC magnetic contact in brick-shaped ABS housing. Maximum switching current 1 A at 30 V resistive load. Magnetic gap: 13 mm. Comprises 2 parts of the same shape. The part with the wires contains a vacuum-sealed reed switch in a glass capsule, in the NO position. Bringing the magnet closer closes the contacts to the NC position. The 2 remaining wires are NC for tamper connection. The other part contains a permanent magnet. Surface-mounted outdoor installation. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machines, and more. The contact part, i.e. the part with the wires, must be installed on the fixed part of the frame, while the magnet must be positioned opposite on the moving part (door). The protected frames must be completely closed. Complies with CEI 79/2 Level 1. IP 65 protection rating. Operating temperature from - 25 to +70° C. Installed dimensions L32XH25XS8 mm. Weight 11 g. Assembled and inspected at the Securvera facility in Rome. Guaranteed in accordance with the law for 24 months against manufacturing defects and faults. Complies with the European directives: EN50131-2-6. EEC 89/336 + 92/31 +93/68 Legislative Decree 04/12/1992 No. 476. ERP 2009/125/EC; "RoHS" 2015/863/EU; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/EU; Low Voltage 2014/35/EU and subsequent amendments, continuously updated
LIST OF ITEMS FOR SALE:
01 ST-400 Vacuum-Sealed Reed Switch Magnetic Contact in Brick Shape, Red ABS, Max. Current 30 V 1 A, IP 65 Protection, 4 Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements, Ministerial Decree 37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
