Description

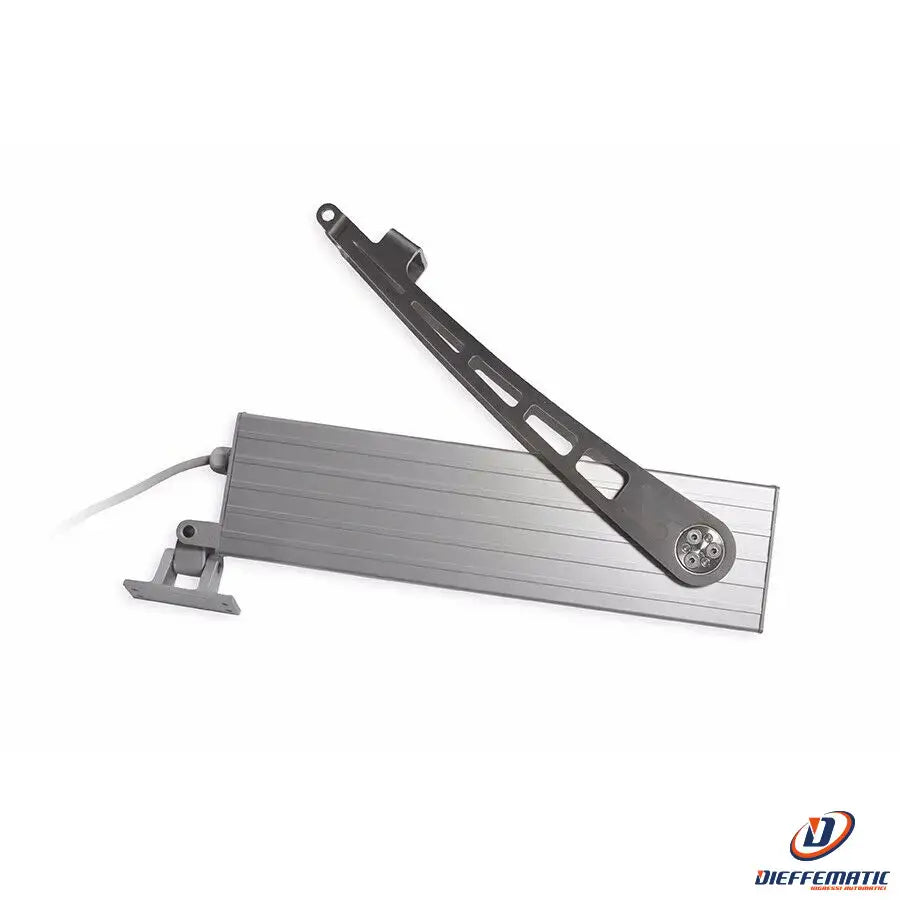

Compass actuator for RWA and ventilation
Mod. EAKL²80
SKU: 6310004
800N arm actuator
Stroke 710mm
Color: Grey
Mounting accessories separately.
The EA-KL² is a further development of the previous compass actuator and therefore represents an extraordinary and innovative development for the customer. The power and style actuator technology is unique in the market, offering many different applications.
Its advantages are:
-Possibility of very wide opening angles.
-Suitability for smoke and heat evacuation systems (SHEV).
-Opening times less than 60sec. (in accordance with EN 12101-2 standards).
-High resistance to variable load (ie wind).
-Minimal footprint, visual attractiveness thanks to the symmetrical design.
-High performance gear (>20,000 cycles).
-Available in tandem and synchronized versions.
-The intelligent support bracket system allows flexible installations in the center and on the side of the closing edges.
-Application Programming Interface (API).
-Low power consumption - high performance. Support brackets to be ordered separately!
ATTENTION: the image is only intended to represent the product, the aesthetic characteristics of the object may differ slightly
24 month warranty
