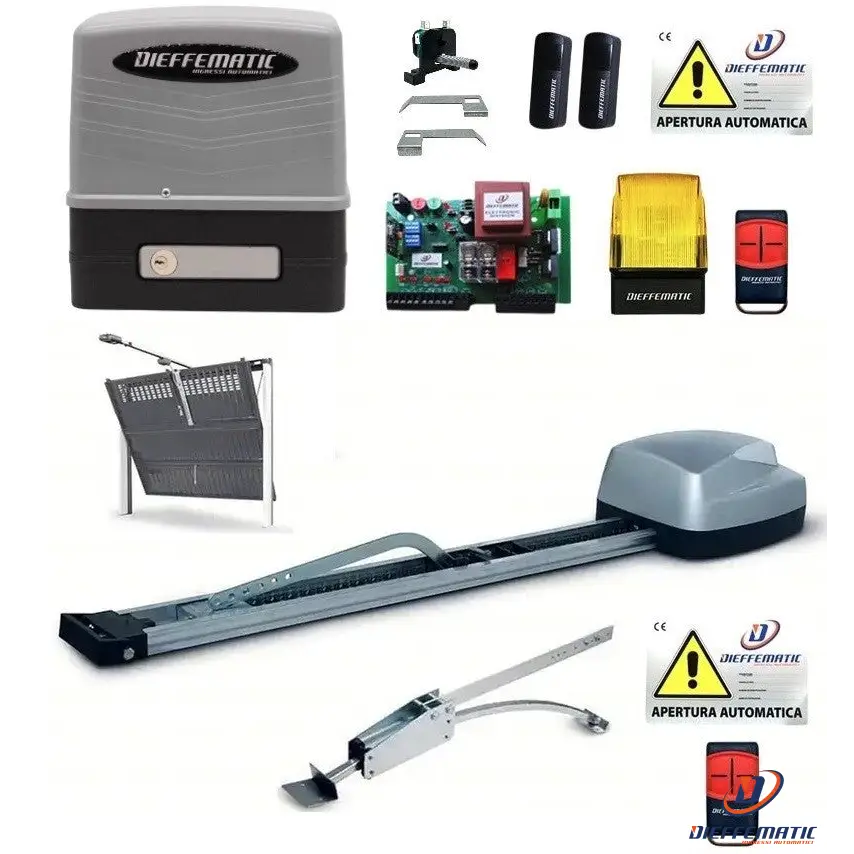

Complete Combo Kit for Sliding Gate and COUNTERWEIGHT GARAGE DOOR Automation
SLIDING GATE
Complete Kit for Sliding Gate Automation
600 kg - 230 V
Professional
**encoder unit can be installed (optional)**
Model KV6 230 V
- Irreversible electromechanical gearmotor for automating sliding gates, with all-metal gears for guaranteed performance and reliability.
- Robust and safe, it features a die-cast aluminium body with a painted finish and an ABS protective cover.
- It features an innovative mechanical limit switch system that is easy to adjust and ensures highly repeatable positioning.
- Particularly suitable for use in areas where snow is common, thanks to the absence of contact between the limit switch and the rack.
- A convenient personalised key release system allows manual movement of the gate leaf in the event of a mains power failure.
- Control unit with radio receiver in a dedicated housing featuring an Aerstop gasket for protection against moisture and insects
- Intelligent: automatic travel programming, motor torque adjustment and speed slowdown.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
SLIDING GATE KIT CONTENTS:
- No. 1 600 kg electromechanical gearmotor, 220 V power supply with key release, dimensions H270 x L230 x D210 mm. Weight 8 kg.
- No. 1 galvanised foundation plate
- No. 1 control unit installed in the motor housing, with motor force adjustment trimmer and obstacle detector, slowdown during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges
- No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
- No. 1 antenna built into the control unit, range 20 metres (433.9 MHz)
- No. 1 4-channel Rolling Code remote control
- No. 1 pair of wall-mounted photocells
- No. 1 230 V flashing light
- No. 1 Warning sign
- No. 1 Installation accessories
- No. 1 Mechanical and electronic installation instructions in ITALIAN
24-month warranty
COUNTERWEIGHT GARAGE DOORS
Intensive Use
QUICK-MOUNT SYSTEM
Professional
+ OBSTACLE DETECTOR + OPTICAL ENCODER
Model UNIKO 100kg
At the forefront of technology, UNIKO is a ceiling-mounted electromechanical operator with a modern design, for spring-balanced or sectional doors.
Available in two models:
For residential use (UNIKO 70).
For condominium use (UNIKO 100).
This product incorporates advanced technology that gives it numerous advantages:
Compact dimensions (360 x 200 x 120 mm).
Installation time reduced by 40%.
Base made of robust plastic material that reduces the operator's weight and makes it easier to handle.
Designed for use with energy-saving lamps.
UNIKO 70KG - UNIKO 100KG
POWER SUPPLY: 24 Vdc MOTOR
MAX. THRUST: 700 N - 1000 N
MAX. DIMENSION / CAPACITY: 10 SQ M - 14 SQ M
MOTOR SPEED: 200 RPM - 200 RPM ENCODER
AVERAGE CURRENT DRAW: 0.7 A - 1.2 A
SPROCKET 1/2: X1/8 Z9 PITCH 8 Z121/2 - X1/8 Z9 PITCH 8 Z12
NOISE LEVEL: < 30 DBA
OPERATING TEMPERATURE: -20/55°C
DEGREE OF PROTECTION: IP30
PATENTED THREE-STEP INSTALLATION:
UNIKO can be installed on the dedicated rail in three steps, without using tools.
1-Mount the support plate on the rail by screwing in the two bolts and securing the lower part.
2-Take the operator, engage the shaft and turn.
3-Insert the pin.
To remove it, simply use a screwdriver to push out the pin.
CLICK THE LINKS FOR THE PDF MANUALS:
MANUFACTURER'S MECHANICAL COMPONENT MANUAL
MANUFACTURER'S ELECTRONIC COMPONENT MANUAL
SWING ARM MANUAL
KIT CONTENTS:
1 24V low-voltage gearmotor kit, max. capacity 100 kg, built-in limit switch.
1 Control unit housed in the motor cover, with motor force adjustment trimmer and ENCODER, slowdown during opening and closing, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic condominium mode. Courtesy light, overvoltage protection, input for photocells, safety edges and backup battery.
1 Single-channel radio receiver built into the control unit (433.9 MHz)
1 Antenna built into the control unit, range 30 meters (433.9 MHz)
1 4-channel ROLLING CODE remote control
1 Treated aluminum sliding rail with 3 m chain
1 Swing arm for counterweight doors
1 Internal emergency release
1 Courtesy light
1 Set of screws and brackets for installation
1 Mechanical and electronic installation manual in ITALIAN
24-month warranty
