Complete Combo Kit for Sliding Gates and Spring-Action or Sectional Doors
SLIDING GATE
Complete Kit for SLIDING GATE Automation
600Kg - 230V
Professional
**encoder unit can be installed (optional)**
Mod. KV6 230V
- Irreversible electromechanical gearmotor for automating sliding gates, with all-metal gears for guaranteed performance and reliability.
- Robust and safe, it features a painted die-cast aluminium body and an ABS protective cover.
- It features an innovative mechanical limit switch system that is easy to adjust and ensures highly repeatable positioning.
- Particularly suitable for use in areas where snow is common, thanks to the absence of contact between the limit switch and the rack.
- A convenient personalised-key release system allows the gate leaf to be moved manually when mains power is unavailable.
- Control unit with radio receiver, housed in a dedicated enclosure with an Aerstop gasket to protect against moisture and insects
- Intelligent: automatic travel programming, motor torque adjustment and speed reduction.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

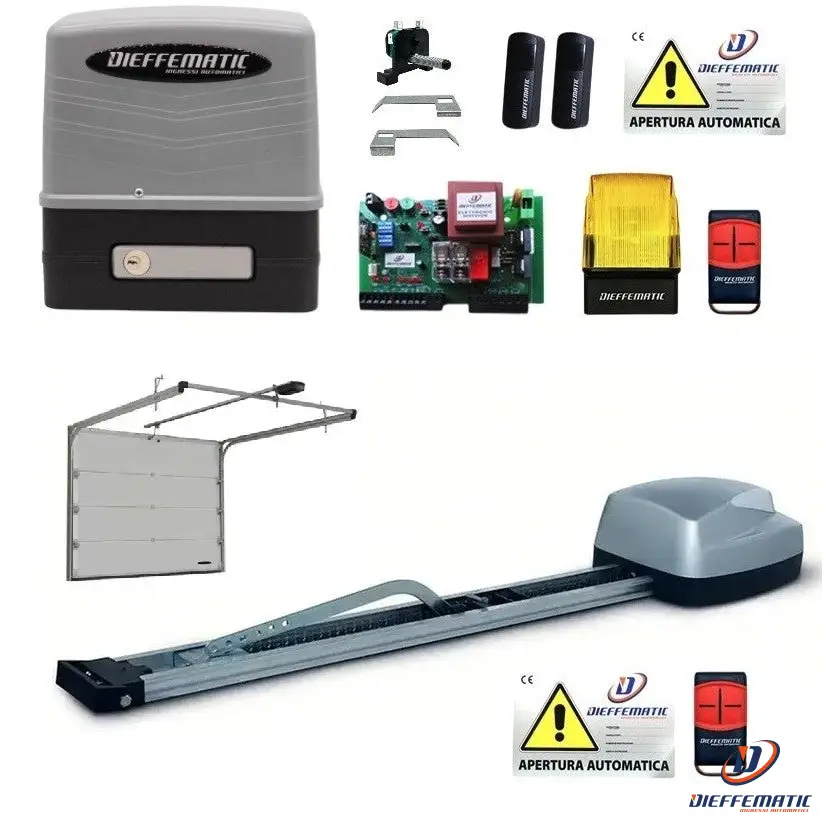

SLIDING GATE KIT CONTENTS:
- 1 electromechanical gearmotor, 600 kg, 220V power supply with key release, dimensions H270 X L230 X D210 mm. Weight 8 kg.
- 1 galvanised foundation plate
- 1 control unit located in the motor housing, with motor force adjustment trimmer and obstacle detection, slowing down during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian entrance, courtesy light, surge protection, inputs for photocells and safety edges
- 1 single-channel radio receiver built into the control unit (433.9 MHz)
- 1 antenna built into the control unit, range 20 metres (433.9 MHz)
- 1 4-channel rolling code remote control
- 1 pair of wall-mounted photocells
- 1 230V flashing light
- 1 warning sign
- 1 set of installation accessories
- 1 set of mechanical and electronic installation instructions in ITALIAN
24-month warranty
SPRING-ACTION OR SECTIONAL DOORS
Complete Automation Kit
for Spring or Sectional Doors
Intensive Use
QUICK INSTALLATION SYSTEM
Professional
+ OBSTACLE DETECTION
+ OPTICAL ENCODER
Mod. UNIKO 100kg
At the forefront of technology
UNIKO is a ceiling-mounted electromechanical actuator with a modern design, for spring or sectional doors.
This product combines advanced technology with numerous high-quality features:
Compact dimensions (360 x 200 x 120 mm).
Installation time reduced by 40%.
Base made of sturdy plastic material that reduces the operator's weight and makes it easier to handle.
Designed for use with low-energy lamps.
UNIKO 100KG
MOTOR POWER SUPPLY 24 Vdc
MAX. THRUST 1000 N
MAX. CAPACITY DIMENSIONS 14 SQ M
MOTOR SPEED 200 RPM ENCODER
AVERAGE CURRENT DRAW 1.2 A
SPROCKET 1/2 X1/8 Z9 PITCH 8 Z12
NOISE LEVEL < 30 DBA
OPERATING TEMPERATURE -20/55°C
IP30 PROTECTION RATING
PATENTED THREE-STEP INSTALLATION:
UNIKO mounts on the dedicated rail in three steps, without the use of tools.
1-Mount the support plate on the rail by tightening the two bolts and securing the lower part.
2-Take the operator, engage the shaft and rotate.
3-Insert the pin.
To remove it, simply use a screwdriver to push the pin out.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MANUFACTURER'S MECHANICAL PART MANUAL
MANUFACTURER'S ELECTRONIC PART MANUAL
KIT CONTENTS FOR SPRING OR SECTIONAL DOORS:
1 24V low-voltage gearmotor kit, max. capacity 100 kg, built-in limit switch.
1 control unit housed in the motor cover, with motor force adjustment trimmer and ENCODER, slowdown during opening and closing, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic condominium mode. Courtesy light, overvoltage protection, input for photocells, safety edges and backup battery.
1 single-channel radio receiver built into the control unit (433.9 MHz)
1 antenna built into the control unit, range 30 meters (433.9 MHz)
1 4-channel ROLLING CODE remote control
1 treated aluminum rail with 3 m chain
1 internal emergency release
1 courtesy light
1 set of screws and brackets for installation
1 set of assembly instructions for the mechanical and electronic parts in ITALIAN
24-month warranty
