Complete Combo Kit for Swing Gate and COUNTERWEIGHT Doors
SWING GATE
Complete Gate Automation Kit
for TWO SWING GATE LEAVES
Professional
Mod. VH 400 mm 230 V
**For leaves up to 2.50 m and 200 kg**
Electromechanical linear actuator for shared-use applications, all-metal construction, stainless steel rod.
Once correctly installed, VH automation systems require virtually no maintenance. Installation does not require any modifications to the existing gate!
High-performance electric motor.
The actuator is designed for leaves weighing no more than 200 kg and measuring up to 2.50 metres in length. The aluminium body and bronze gear mechanism ensure a long service life.
The actuator holds the gate locked when open and closed without requiring an electric lock; convenient release with a triangular key located on the motor assembly.
Control unit with built-in receiver for controlling 1/2 swing gates.
Electronic clutch with convenient, quick travel adjustment; second-leaf delay can be adjusted.
Deceleration during opening and closing.
Suitable for symmetrical and asymmetrical gates, thanks to the ability to independently control the travel of each leaf.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
BRACKET DIMENSIONS:

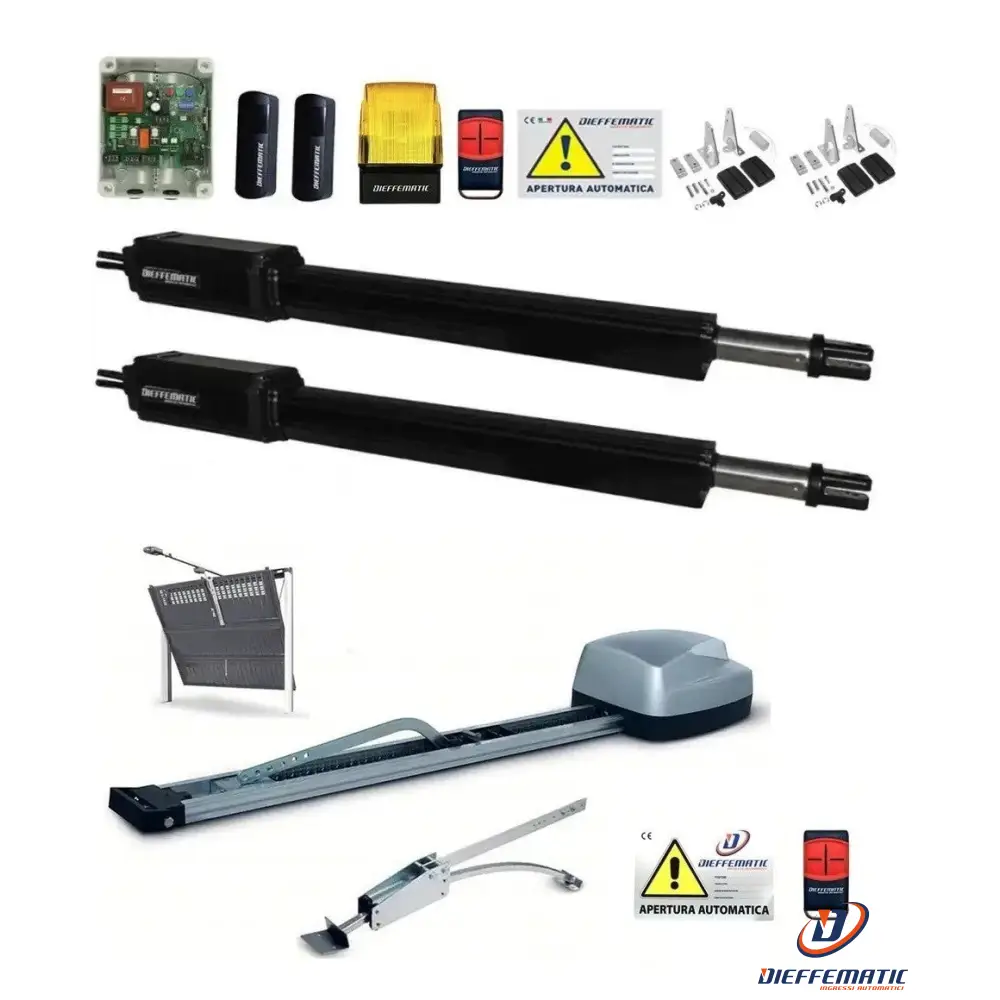

KIT CONTENTS:
No. 2 Electromechanical linear actuator for shared-use applications, for outdoor use
Emergency release with key. No electric lock required.
Motor speed 1,400. Power 200 W. Thrust 1500 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.5 kg
No. 1 Control unit with weatherproof enclosure, motor force and deceleration adjustment trimmers, built-in obstacle detection, deceleration during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic shared-use mode. Pedestrian input, courtesy light, overvoltage protection, input for photocells and safety edges, electric lock management, reverse stroke, adjustable leaf offset during closing/opening, closing time adjustment.
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 Antenna built into the control unit, range 20 metres (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 Pair of wall-mounted photocells
No. 1 230 V flashing light
No. 1 Warning sign
No. 1 Installation accessories, bolt-on/weld-on mounting brackets with bracket covers
No. 1 mechanical and electronic installation instructions in ITALIAN
24-month warranty
COUNTERWEIGHT-OPERATED DOORS
Intensive use
QUICK INSTALLATION SYSTEM
Professional
+ OBSTACLE DETECTION + OPTICAL ENCODER
Mod. UNIKO 100kg
At the forefront of technology, UNIKO is a modern-design electromechanical ceiling-mounted operator for spring-balanced or sectional doors.
Available in two models:
For residential use (UNIKO 70).
For multi-user applications (UNIKO 100).
This product incorporates advanced technology, giving it numerous qualities:
Compact dimensions (360 x 200 x 120 mm).
Installation time reduced by 40%.
Base made of sturdy plastic material, reducing the operator's weight and making it easier to handle.
Suitable for use with energy-saving lamps.
UNIKO 70KG - UNIKO 100KG
POWER SUPPLY: 24 Vdc MOTOR
MAX. THRUST: 700 N - 1000 N
MAX. AREA/CAPACITY: 10 SQ M - 14 SQ M
MOTOR SPEED: 200 RPM - 200 RPM ENCODER
AVERAGE CURRENT DRAW: 0.7 A - 1.2 A
SPROCKET 1/2: X1/8 Z9 PITCH 8 Z121/2 - X1/8 Z9 PITCH 8 Z12
NOISE LEVEL: < 30 DBA
OPERATING TEMPERATURE: -20/55°C
PROTECTION RATING: IP30
PATENTED THREE-STEP INSTALLATION:
UNIKO can be installed on the dedicated rail in three steps without using tools.
1-Mount the support plate on the rail by tightening the two bolts and securing the lower part.
2-Take the operator, engage the shaft and rotate.
3-Insert the pin.
To disassemble it, simply use a screwdriver to push out the pin.
CLICK THE LINKS FOR THE PDF MANUALS:
MANUFACTURER'S MECHANICAL COMPONENTS MANUAL
MANUFACTURER'S ELECTRONIC COMPONENTS MANUAL
SWING ARM MANUAL
KIT CONTENTS:
No. 1 24V low-voltage gearmotor kit, max. capacity 100 kg, built-in limit switch.
No. 1 control unit located in the motor housing, with motor force adjustment trimmer and ENCODER, slow-down during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic multi-user. Courtesy light, surge protection, inputs for photocells, safety edges and backup battery.
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 antenna built into the control unit, range 30 meters (433.9 MHz)
No. 1 4-channel ROLLING CODE remote control
No. 1 treated aluminum sliding rail with 3 m chain
No. 1 swing arm for counterweight-operated doors
No. 1 internal emergency release
No. 1 courtesy light
No. 1 set of screws and brackets for installation
No. 1 mechanical and electronic installation instructions in ITALIAN
24-month warranty
