Description

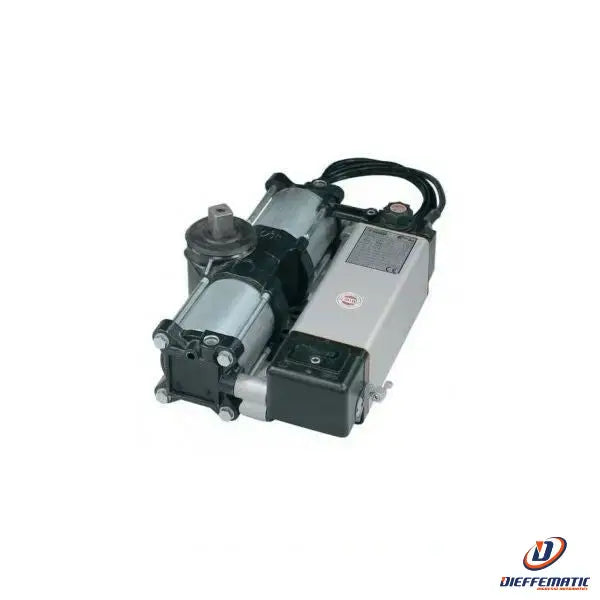

Underground hydraulic automation for swing gates.
• Compact, strong and invisible group
hydraulic power unit and jack in a single formwork.
It does not require particular maintenance.
Right or left version.
• Comprehensive range
For installations for collective and industrial use. Rotation of the door
of 110° and 175°. Reversible without hydraulic lock, with lock
bidirectional hydraulic, with braking in both directions.
• Reliable
Hydraulic technology and quality of all its internal components
for safe and silent movement.
Maximum weight 700 kg per door in the version with formwork
non-self-supporting protection. Also in stainless steel version.
• Self-supporting formwork
for a maximum weight of 350 kg per door.
• Safe
with manual emergency release in pressed steel and key
with ergonomic handle. Thrust force adjustment with
the maximum pressure valves.
• Tested and certified
CE marking with ITT PDC type tests No. 2393-2008.
Detail of the registers of Installation examples
force adjustment
Optional cover
Combi 740 model
Power supply voltage 230 Vac - 50 Hz
Power consumption 250 W
Current absorbed 1.2 A
Power output 0.18 kW (0.25 HP)
Working torque 250-400 Nm
Operating temperature -20 °C +80 °C (*)
IP 67 protection rating
Type of oil Oil FADINI - cod. 708L
Opening/closing time ~ 23 s [110°], ~ 28 s [175°]
Weight with formwork 27 kg
Very intensive use frequency
Shaft rotation angle: 110°
Bidirectional hydraulic lock: No
Braking on opening/closing: No
Flow regulator: No
Max single leaf length (m): 3
Max single door weight (kg): 700
NOTE: COMBI 740 identified in the product code with the letter "N", are versions without lock (reversible).
The use of an electric lock on the gate is mandatory.
NOTE: Above 2.0 m it is always advisable to use the electric lock.
NOTE: The indicated values of the length and weight of the door are intended with formwork code. 745L.
24 month warranty
