Description

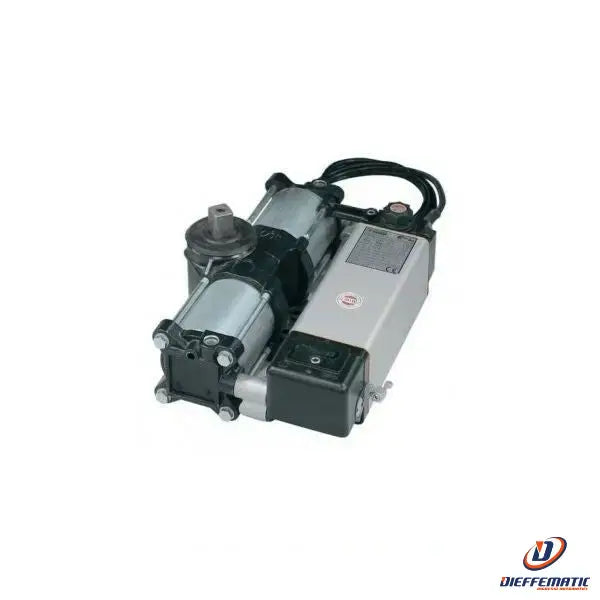

Underground hydraulic operator for swing gates.
• Compact, powerful and invisible unit
hydraulic control unit and ram in a single foundation box.
Requires no special maintenance.
Right- or left-hand version.
• Complete range
For collective and industrial use. Gate leaf rotation
of 110° and 175°. Reversible without hydraulic lock, with lock
bidirectional hydraulic lock, with braking in both directions.
• Reliable
Hydraulic technology and quality of all internal components
for safe and quiet operation.
Maximum weight of 700 kg per leaf in the version with protection cover
non-self-supporting protection cover. Also available in stainless steel.
• Self-supporting foundation box
for a maximum weight of 350 kg per leaf.
• Safe
with an emergency manual release, made of stamped steel, and a key
with an ergonomic handle. Thrust force adjustment using
the pressure relief valves.
• Tested and certified
CE marking with ITT type testing, PDC No. 2393-2008.
Detail of the adjustment screws Installation examples
force adjustment
Optional cover
Model Combi 740
Power supply voltage 230 Vac - 50 Hz
Power consumption 250 W
Current draw 1,2 A
Output power 0,18 kW (0,25 CV)
Operating torque 250-400 Nm
Operating temperature -20 °C +80 °C (*)
Protection rating IP 67
Oil type: FADINI Oil - item no. 708L
Opening/closing time ~ 23 s [110°], ~ 28 s [175°]
Weight with foundation box: 27 kg
Very intensive use
Shaft rotation angle: 110°
Bidirectional hydraulic lock: No
Braking during opening/closing: No
Flow regulator: No
Max. length per gate leaf (m): 3
Max. weight per gate leaf (kg): 700
NOTE: COMBI 740 models identified by the letter "N" in the product code are versions without a lock (reversible).
An electric lock must be used on the gate.
NOTE: An electric lock is always recommended for gate leaves longer than 2.0 m.
NOTE: The specified gate leaf length and weight values are for use with the foundation box, item no. 745L.
24-month warranty
