Shipping
Shipping in 5-10 business days
Description
Replacement Anti-Theft Alarm Siren Amplifier, Flashing LED Board for Starna Note A/B 1724/2475 Hz 110 dB Alarm Triggered by +/- Drop, System Status Signal, 12 V DC Power Supply, Output for 4 ? 15 W Horn
Mod. SV-CSLSMLCLSE
SKU: SV-CSLSMLCLSE

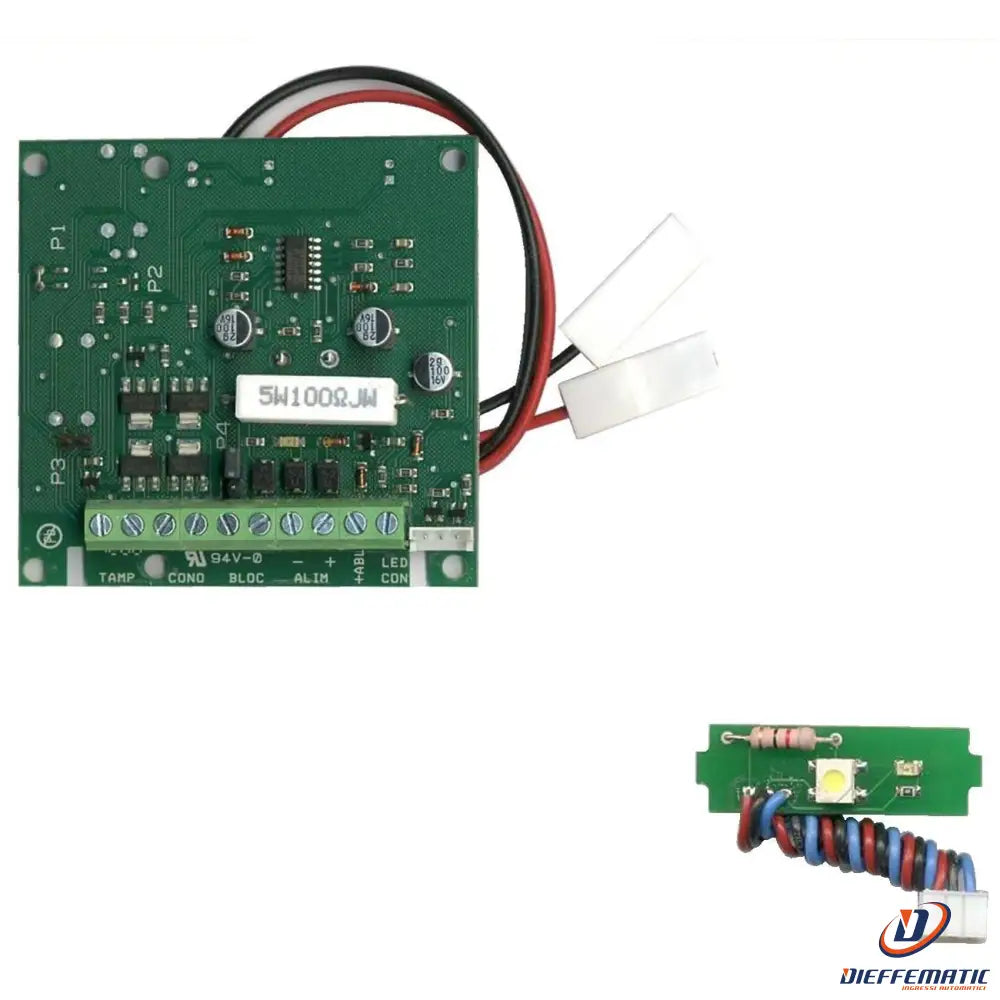

SV-CSL Replacement circuit for outdoor, self-powered, flashing two-tone LED sirens, with system status indicator LED. Output for magnetodynamic exponential speaker, 4 Ω resistance, 110 dB acoustic pressure. Power 15 W. High-brightness LED flasher (included). Flashing LED indicates system activated. Activation 30" after closing. Alarm command triggered by loss of positive voltage. Tamper protection against opening, removal from the wall, and cable cutting. Incorporates a tamper alarm timer that activates the siren for 3.5 minutes, while the flasher remains active until the tampering is rectified. Key-operated remote control. Supplied with red and black battery connection wires and 10 identified terminals for connections. Power supply 12 V. Current draw 1.5 A. Exposed printed circuit board. Overall dimensions L73XH73XS26 mm. Weight 48 g. Assembled product selected at the Securvera facility in Rome. Covered by a 24-month statutory warranty against manufacturing defects and faults. Complies with Directive 1999/5/EC (R&TTE). Complies with the following European standards and directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08-2002), EN 60730-1: 2003 CEE89/336 and 93/686 D.L. 04/12/1992 n. 47. Radio Equipment Directive 2014/53/EU. Electromagnetic Compatibility Directive 2014/30/EU
COMPONENTS FOR SALE:
01 SV-CSL Replacement Circuit for SV-SPL Siren, Flashing LED and System Status LED, Two-Tone, Power Supply 12 V 15 mA (standby); 1.5 A (alarm)
01 SV-GAR Statutory Warranty Certificate: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The Following Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
eb: 226466278877
