Description

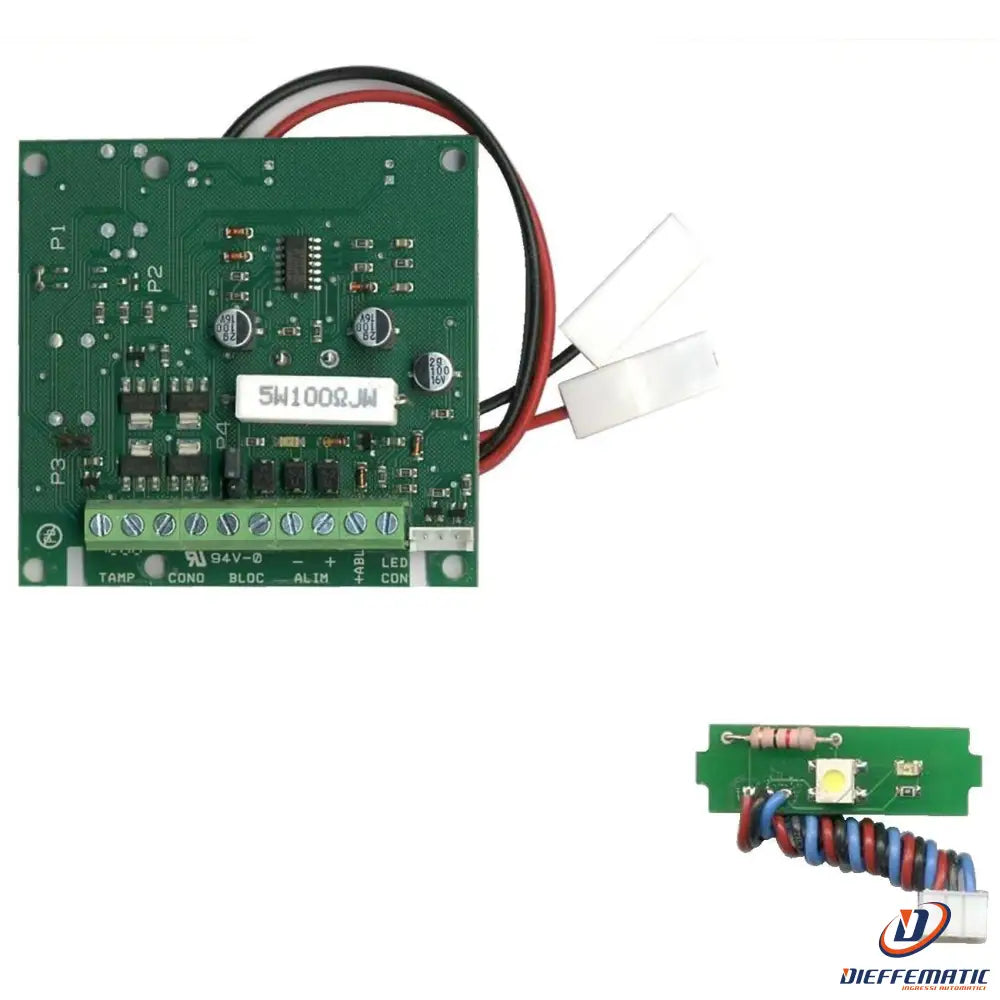

Replacement plate with flashing LED for Starna Melodia A/B outdoor burglar alarm siren, 1724/2475 Hz, 110 dB, +/- drop-out alarm, system status signal, 12 V DC power supply, output for 4 ? 15 W horn
Mod. SV-CSLSMLCLSD
SKU: SV-CSLSMLCLSD
SV-CSL Replacement circuit for outdoor self-powered bitonal sirens with flashing LEDs and system status signal LED. Output for an exponential magnetodynamic loudspeaker, 4 Ω resistance, 110 dB sound pressure. 15 W power. High-brightness LED flasher (included). Flashing LED indicates system activated. Activates 30" after closing. Alarm command triggered by loss of positive voltage. Tamper-proof circuit against opening, removal from the wall and cable cutting. Incorporates a tamper alarm timer that activates the siren for 3.5 minutes, while the flasher remains active until the tampering is resolved. Remote key control. Supplied with red and black battery connection wires and 10 identified connection terminals. 12 V power supply. Current draw 1.5 A. Exposed printed circuit board. Overall dimensions L73XH73XS26 mm. Weight 48 g. Assembled product selected at the Securvera facility in Rome. Covered by a 24-month statutory warranty against manufacturing defects and faults. Complies with Directive 1999/5/EC (R&TTE). Complies with European requirements and directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08-2002), EN 60730-1: 2003 CEE89/336 and 93/686 D.L. 04/12/1992 n. 47. Radio Equipment Directive 2014/53/EU. Electromagnetic Compatibility Directive 2014/30/EU
COMPONENTS FOR SALE:
01 SV-CSL Replacement Circuit for SV-SPL Siren, Flashing LED and System Status LED, Bitonal, Power Supply 12 V 15 mA (standby); 1.5 A (alarm)
01 SV-GAR Statutory Warranty Certificate: 24 Months; Qualified Installation Requirements D.M.37/2008, lifetime coverage against manufacturing defects
01 SV-IST Detailed Installation Instructions; The following must be observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
