Description
Sound Melody Generator, Replacement Part for Electronic Alarm Siren, A/B Frequency 1500/4000 Hz, Output for 4 ? 10/30 W Magnetodynamic Horn, 12 Vdc Power Supply, Max. Current Draw 1 A, Without Enclosure
Model SV-CR7GNSCASD
SKU: SV-CR7GNSCASD

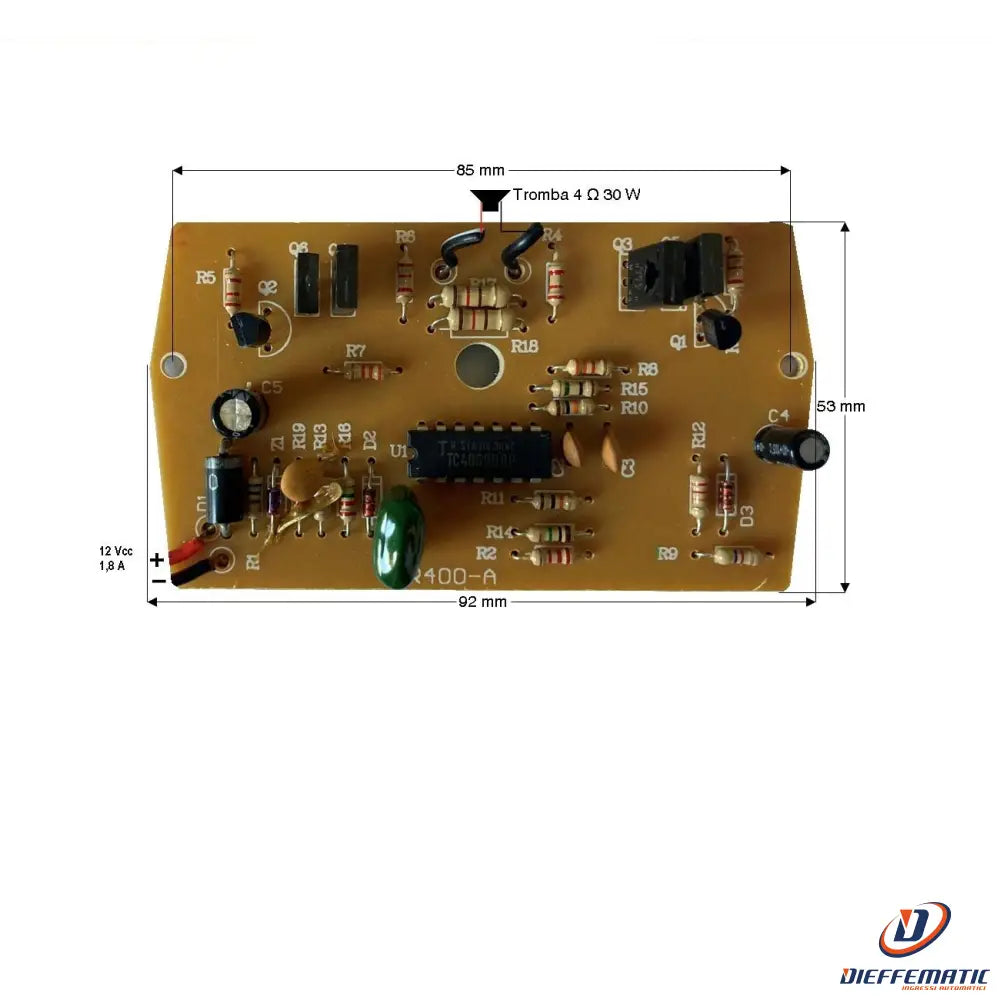

SV-CR7 Circuit board protected against reverse polarity. A/B tone frequency generator, 1500 ÷ 4000 Hz. Two-tone siren melody for magnetodynamic speaker. Output for 4 ? horn. 30 W dissipation. Connection with polarized wires. Useful as a replacement part for sirens or for bird deterrence. For use as an alarm on industrial machinery. We recommend protection in accordance with standards and the use of a suitable fuse. 12 Vdc power supply. Current draw: 1 A. Circuit board supplied without enclosure. Overall dimensions: L92XH53X S18 mm. 2 mounting holes, 3.5 mm in diameter, 85 mm apart. Weight: 27 g. Assembled product selected at the Securvera facility in Rome. Covered by the statutory 24-month warranty against manufacturing defects and faults. Complies with Directive 1999/5/EC (R&TTE). Complies with the following European use and standards requirements: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08-2002), EN 60730-1: 2003 CEE89/336 and 93/686 D.L. 04/12/1992 n. 47. Radio Equipment Directive 2014/53/EU. Electromagnetic Compatibility Directive 2014/30/EU
COMPONENTS FOR SALE:
01 SV-CR7 Bitonal Melody Generator Circuit Board, Replacement Part for Siren, 12 Vdc Power Supply, 1 A Current Draw, Output for 4 ? 30 W Horn
01 SV-GAR Statutory Warranty Certificate: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; The following must be observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
