Description
Replacement electronic siren board, bitonal sound melody generator, frequency A/B 1500/4000 Hz, output for 4 ? 10/30 W magnetodynamic horn, 12 Vdc supply, max. current draw 1 A, no enclosure
Mod. SV-CR7GNSCASC
SKU: SV-CR7GNSCASC

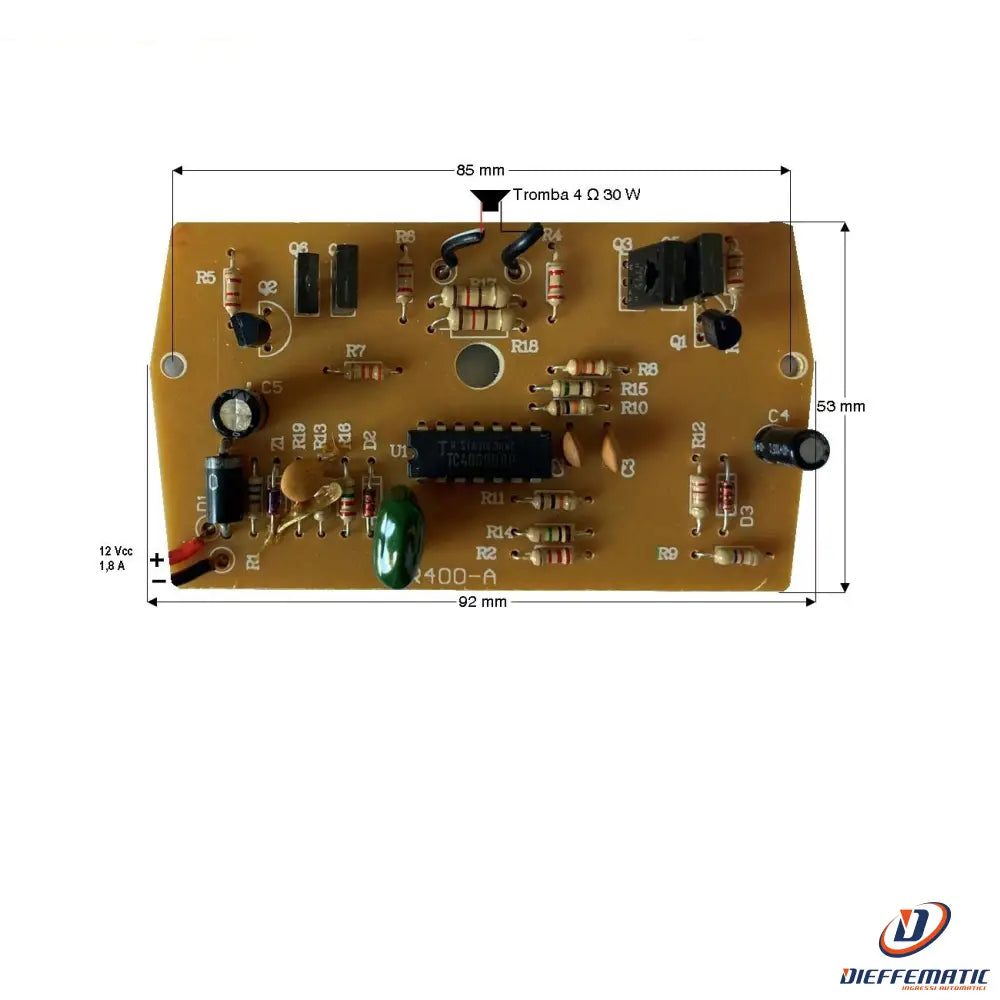

SV-CR7 Circuit protected against reverse polarity Note Generator Frequency A/B 1500 ÷ 4000 Hz. Bitonal siren melody for magnetodynamic speaker. Output for 4 ? horn, 30 W dissipation. Connection with polarized wires. Useful as a replacement part for sirens, or for bird deterrence. As an alarm on operating machinery. We recommend protection in accordance with standards and the use of a suitable fuse. 12 Vdc supply. Current draw 1 A. Circuit board without enclosure. Overall dimensions L92XH53X S18 mm. 2 mounting holes, 3.5 mm, spaced 85 mm apart. Weight 27 gr. Product assembled and selected at the Securvera facility in Rome. Covered by the 24-month statutory warranty against manufacturing defects and faults. Complies with Directive 1999/5/EC (R&TTE). Complies with European use and directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08-2002), EN 60730-1: 2003 CEE89/336 and 93/686 D.L. 04/12/1992 No. 47. Radio Equipment 2014/53/EU. Electromagnetic Compatibility 2014/30/EU
COMPONENTS FOR SALE:
01 SV-CR7 Bitonal Melody Generator Circuit Board Replacement for Siren Supply 12 Vdc Current draw 1 A Output for 4 ? 30 W Horn
01 SV-GAR Warranty Certificate as required by law: 24 months; Qualified Installation Requirements D.M.37/2008, lifetime coverage against manufacturing defects
01 SV-IST Detailed Installation Instructions; The following must be observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
