Description
Complete Gate Automation Kit
for TWO SWING LEAVES
with UNDERGROUND motors
24V
Compatible with CAME Frog enclosures
(ENCLOSURES NOT INCLUDED)
Professional
**For leaves up to 3.50 m and weighing 500 kg**
The CROMO underground gearmotor is designed to automate new or existing swing-leaf gates.
Thanks to its easy installation, using the gearmotor requires no changes to the gate's appearance or operation, making it especially popular for automating historic gates.
The gearmotor consists of a single aluminum block containing the reduction gear assembly and electric motor; both operate continuously in an oil bath and are enclosed in a watertight IP67 steel casing.
The gearmotor is suitable for operating gates weighing up to 500 kg, with a leaf length of 2.50 m (when an electric lock is installed).
The CROMO gearmotor is supplied in the locking (IRREVERSIBLE) version.
TECHNICAL SPECIFICATIONS:
SUPPLY VOLTAGE: 24 V
MAX. CURRENT DRAW: 2.2 A
MOTOR SPEED: 1500 rpm
125° ROTATION TIME: 35 sec.
OPERATING TEMP.: -30 / + 80°
ROTATION ANGLE: 125°
LUBRICATION: HD 80W/90
WEIGHT: 9 kg
THERMAL PROTECTION: 100°
Limit switch on motor linkage optional (purchased separately)
Aluminum structure, watertight
HOLE DIAMETER: 15 MM
MOUNTING BASE DIMENSIONS: 22 X 20 CM
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT CONTENTS:
No. 2 electromechanical gearmotors for residential use, high-performance electric motor.
No electric lock required. Motor speed 1,400 rpm. Power 70 W. Adjustable thrust from 500 to 3000 N.
Maximum opening angle 125°. 24V power supply. Weight 9.3 kg
No. 1 control unit with watertight enclosure, featuring motor force adjustment trimmer and obstacle detector, slow-down during opening and closing, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic condominium mode.
Pedestrian entrance, courtesy light, surge protection, input for photocells and safety edges, electric lock control, reverse kick, adjustable leaf offset during closing/opening.
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 antenna built into the control unit, range 20 meters (433.9 MHz)
No. 1 4-channel rolling code remote control
No. 1 pair of wall-mounted photocells

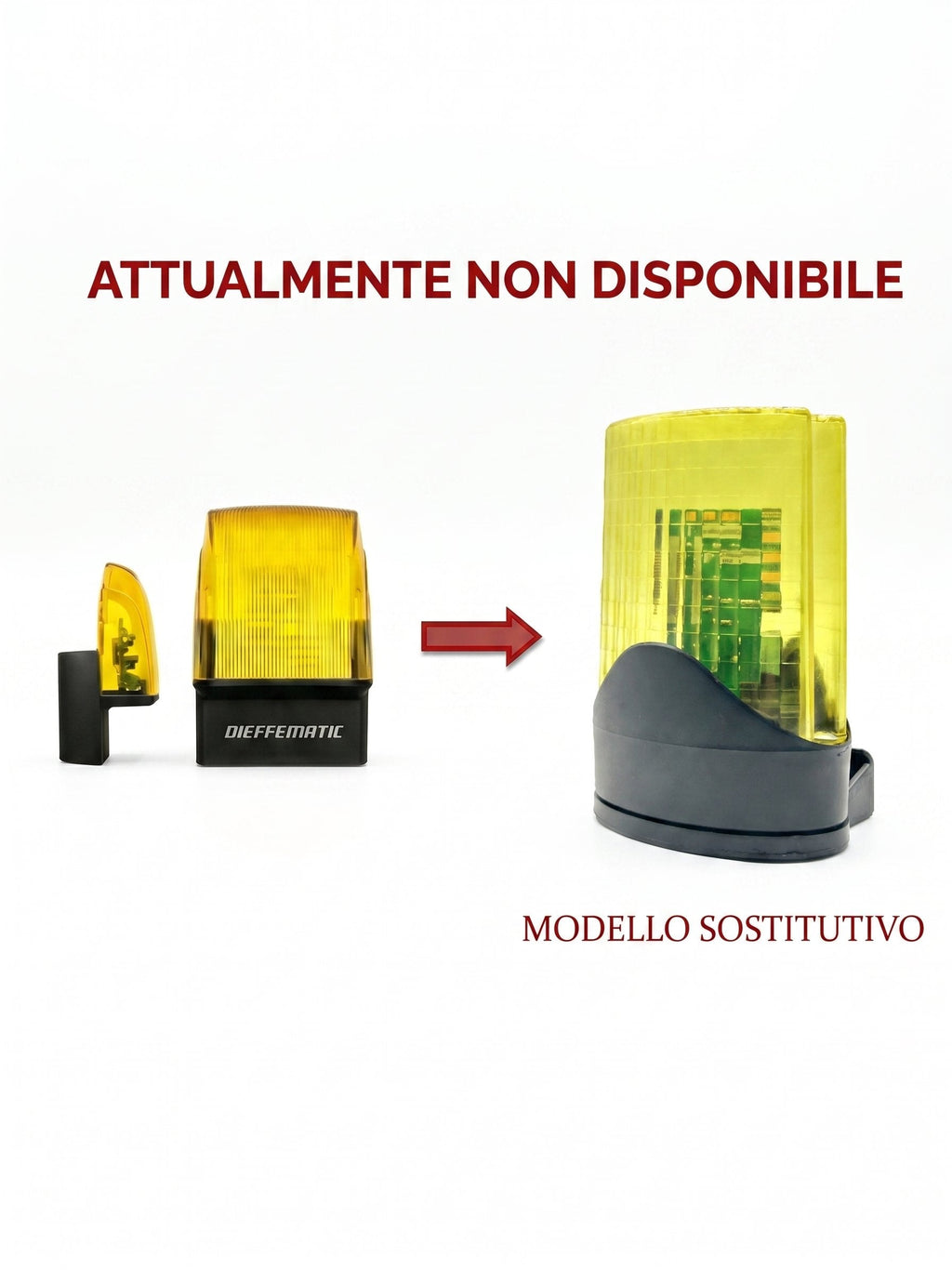

No. 1 24V flashing light
No. 1 warning sign
No. 1 installation accessories (CAME adapter brackets included)
No. 1 mechanical and electronic installation instructions in ITALIAN
24-month warranty
