Description

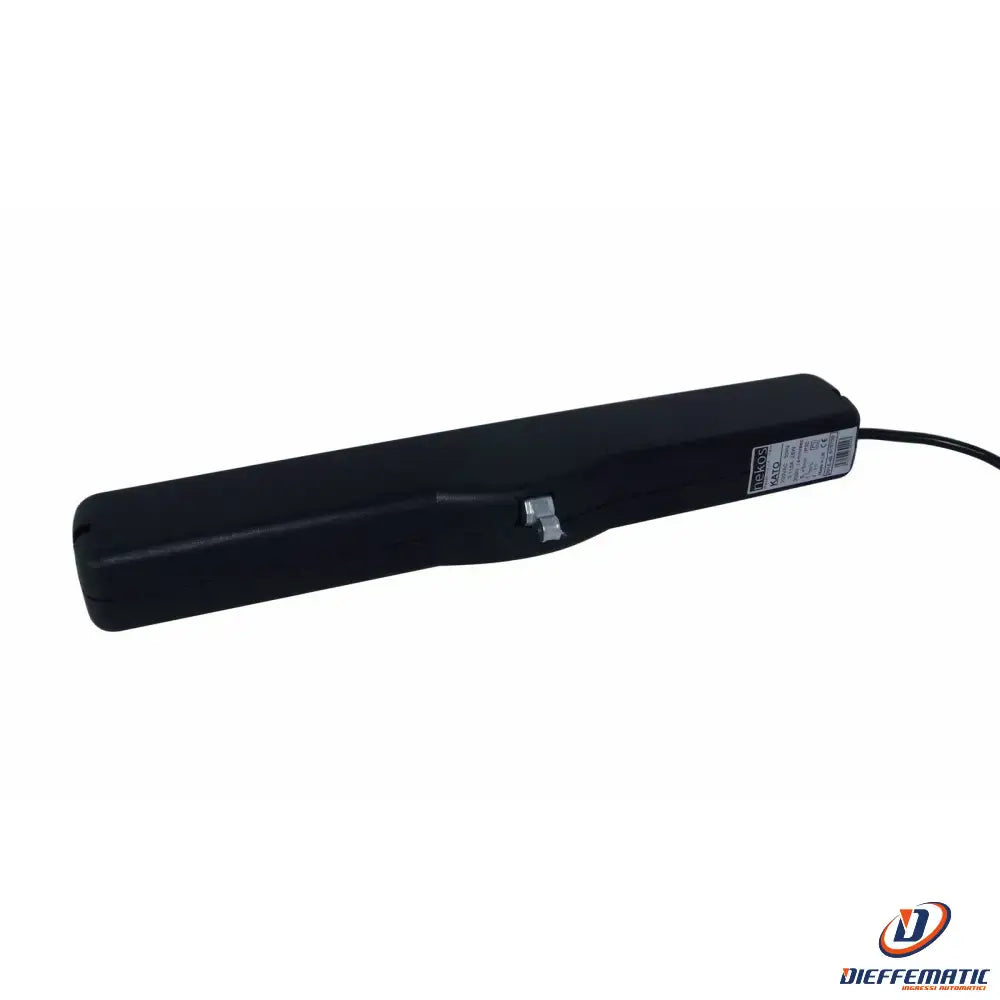

Chain actuator
Mod. KATO 253 230V 250N
SKU: 6030080
Adjustable stroke 240-360 mm
Color: Black
Brackets for vertical installation are not included
Chain actuator for outward-opening and bottom-hung windows, domes and skylights. Kato 253 is the result of Nekos's expertise in product development, designed to meet market needs. Small, smart and affordable! Simple mechanical selection of two strokes: 240 mm and 360 mm.
Equipped with a microprocessor with the following functions:
Progressive start-up ramp.
Power control throughout the stroke.
• Even simpler and faster stroke selection.
• Relax function to relieve mechanical components after each end of travel.
• Accessories compatible with the entire Kato series.
It has a compact profile, and the housing and brackets are made of high-strength composite material (glass-fiber-reinforced polyamide).
This actuator also uses the same patents as the chain actuators manufactured using Nekos technology, both for the quick-fit actuator mounting and for the sash fittings.
Electric actuator with a double-row four-link articulated chain, enclosed in a suitable composite-material housing, designed to operate outward-opening and bottom-hung windows, domes and skylights.
• 250N push and pull force;
• Powered by 110/230V AC 50/60Hz or, alternatively, 24V DC;
• Supplied complete with brackets for quick installation without screws (patented);
• Quick-fit brackets for bottom-hung or outward-opening windows (patented);
• Two mechanically selectable opening strokes;
• End-of-travel stop on opening and closing by power absorption, and overload protection;
• Can be connected in parallel.
Complies with the relevant EU Directives (EMC Directives, Low Voltage Directives).
Applications:
Pivot Window
Roof Window
Bottom-Hung Window
Outward-Opening Windows
WARNING: The image is for illustrative purposes only; the product's appearance may differ slightly
24-month warranty
