Chain Actuator Compatible With O2-m O2m 230v Black Aprimatic Automation New

MINGARDI MICRO+

Universal chain actuator for:

top hung and bottom hung windows in aluminium, wood and pvc

Professional

MINGARDI linear electric actuator with articulated chain movement contained inside the casing.

Operation with 230V~ 50 Hz power supply voltage compliant with Directives 2006/95 LVD - 2004/108 EMC.

Equipped with an electronic opening and closing limit switch system. Stroke selectable by magnet. Can be connected in parallel.

Available colors: black (N) - gray (G) - white (B).

Protection degree electrical devices: IP 20 / Protection degree electrical devices: IP 20

Limit switch closing-opening: electronic / Limit switch closing-opening: electronic

Push / pull force 250 N up to 300 mm (200 N up to 400 mm)

Operating temperature: -10°C +40C° / Operating temperature: -10°C +40C°

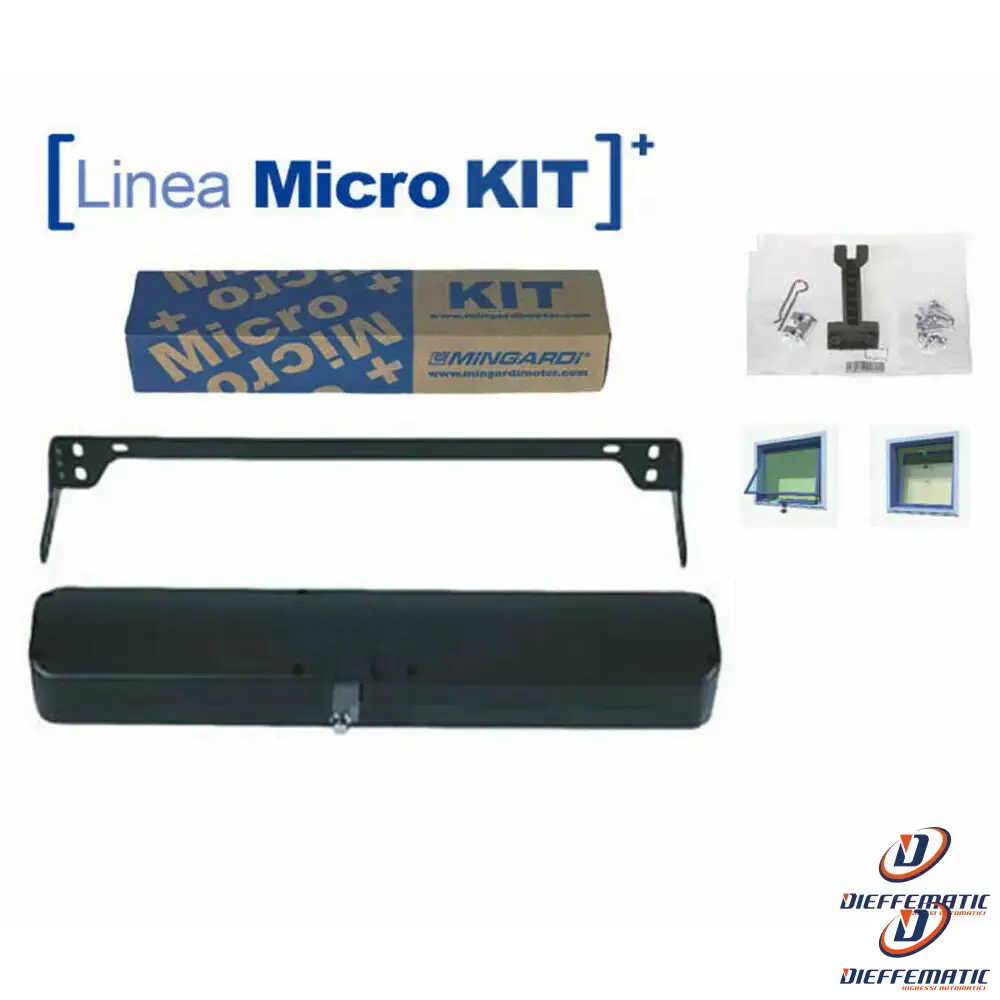

PRODUCT CODE: 2700810

MICRO KIT max 400 mm Black max 250 N 110 W IP20 approx. 25mm/s 230V~ / 50Hz

OPTIONAL accessories:
2700813
MICRO+ max 400 mm - (Black) actuator only
2700814
MICRO+ max 400 mm - (Grey) actuator only
2700815
MICRO+ max 400 mm - (White) actuator only
2700898
Bracket for protruding application with accessories
2700899
Bracket for bottom hung application with accessories
2700855
Single tilting bracket (minimum package 5 pieces)
