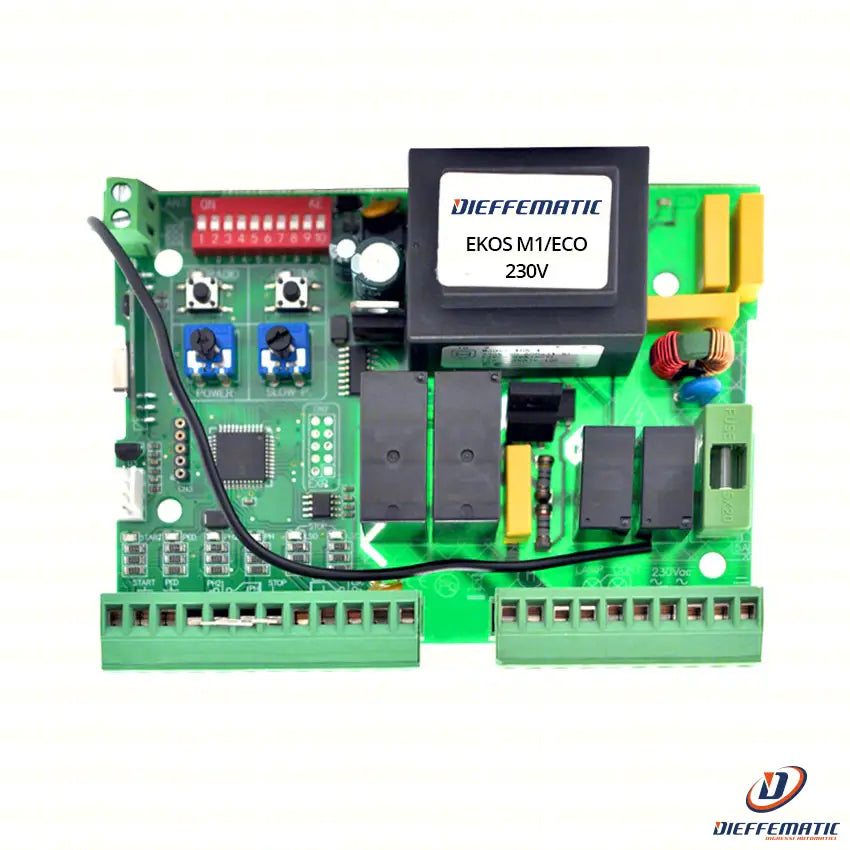

Control Unit for Sliding Gates, Up-and-Over Garage Doors, Barriers and Roller Shutters - Professional

UNIVERSAL

Compatible with all 230V motors from:
Came, Nice, Faac, Rib, Tau, Beninca, Bft, Ditec, Vds, Life, Aprimatic and all other brands.

- Built-in 433.92 MHz receiver with fixed-code or HCS rolling-code management.

IMPORTANT: Remote Control Compatibility Guide

The receiver built into the control unit is not universal; it is specifically compatible with certain 433.92 MHz encodings. Below is the exact list of compatible models:

1. Compatible ROLLING-CODE Remote Controls

The control unit supports the high-security rolling-code encoding of the following brands and models:

Dieffematic: Equo Plus, Equo X, E010, Equo Slim and Tx-e models

BFT: Mitto and Cool models

2. FIXED-CODE Remote Controls and Universal Remote Control Management

If you use fixed-code remote controls, compatibility is guaranteed with:

Aster 21/a and Aster 31/1 models

Note on universal remote controls: Aster 21/a and Aster 31/1 models can be used as "master" remotes to pair commercial universal remote controls. Simply clone the code directly from one remote control to another to make them immediately operational with the control unit.

Dimensions: W.130 x H.95 x D.40 mm

GENERAL INFORMATION
The self-learning universal control unit is designed to automate one access point with one 230VAC motor fitted with limit switches. It features an innovative self-learning procedure for quick installation, along with two trimmers for fine adjustment of the main parameters: deceleration force and operating force.

Available programming modes:
- Quick self-learning programming, in which the control unit automatically performs the learning cycle to determine operating times and sets the start of deceleration to 85% of the cycle in both opening and closing directions.
- Professional programming, which allows the installer to set when the gate leaf starts decelerating, enable pedestrian opening via remote control, and select how the safety devices operate.

MAIN FEATURES
• Control of automated access systems with one 230VAC motor (max. 600W)
• Open-close limit switch input, NC
• Motor speed adjustable from 50-100% using a trimmer.
• Partial (pedestrian) opening via remote control or terminal block
• Dwell time adjustable from 0 to 120 seconds using a trimmer.
• Initial settings via DIP switches
• Indicator LED
• 230VAC courtesy light control, 100W max.
• Built-in 433MHz receiver with storage for up to 254 radio codes
• Built-in flashing light logic control
• Complies with the relevant European Directive: R&TTE 99/05/CE

CLICK THE LINK FOR THE INSTRUCTION MANUAL:
MANUFACTURER'S INSTRUCTION MANUAL

TECHNICAL SPECIFICATIONS
Transformer power supply: 230/18VAC 10VA
Control unit power supply: 230 VAC
Motor output: 230V max. 600W
Max. motor and accessory current draw: Max. 8 Amps, fuse-protected
Accessory power supply: 24 VDC - 150 mA, fuse-protected
Operating ambient temperature: -20°C / + 55 °C
Programming parameters: stored in EEPROM

24-month warranty
