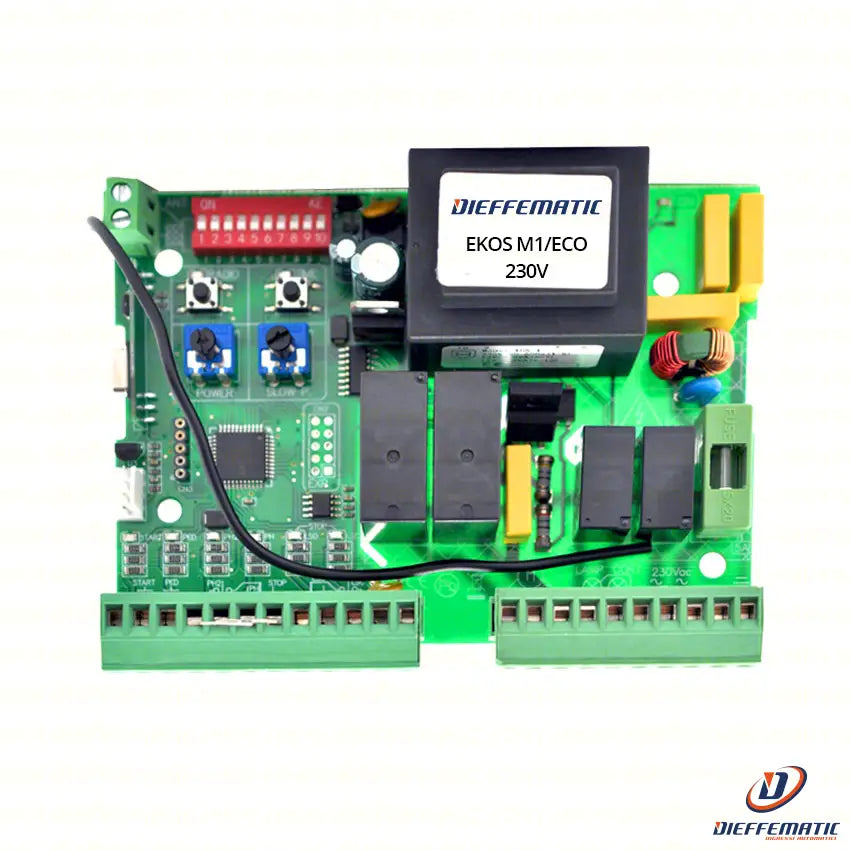

Professional Control Unit for Sliding Gates, Up-and-Over Garage Doors, Barriers and Roller Shutters

UNIVERSAL

Compatible with all 230V motors from:
Came, Nice, Faac, Rib, Tau, Beninca, Bft, Ditec, Vds, Life, Aprimatic and all other brands.

- Built-in 433,92 MHz receiver with fixed-code or HCS rolling-code operation.

WARNING: Remote Control Compatibility Guide

The receiver built into the control unit is not universal; it works specifically with certain 433,92 MHz encoding systems. Below is the complete list of compatible models:

1. Compatible ROLLING CODE Remote Controls

The control unit supports the high-security rolling-code encoding of the following brands and models:

Dieffematic: Equo Plus, Equo X, E010, Equo Slim and Tx-e models

BFT: Mitto and Cool models

2. FIXED-CODE Remote Controls and Universal Remote Control Operation

If you use fixed-code remote controls, compatibility is guaranteed with:

Aster 21/a and Aster 31/1 models

Note on universal remote controls: Aster 21/a and Aster 31/1 models can be used as "master" remotes to pair commercial universal remote controls. Simply clone the code directly from one remote control to another to make them immediately operational with the control unit.

Dimensions: w.130 x h.95 x d.40 mm

GENERAL INFORMATION
This self-learning universal control unit is designed to automate one access point with a 230VAC motor and limit switches. It features an innovative self-learning procedure for quick installation and two trimmers for fine adjustment of the main parameters: deceleration force and operating force.

Available options:
- A quick self-learning program, in which the control unit automatically learns the operating times and sets the start of deceleration during both opening and closing at 85% of the cycle.
- A professional program in which the installer can set when the gate leaf starts to decelerate, enable pedestrian opening via remote control, and select how the safety devices operate.

MAIN FEATURES
• Controls and operates one automated access point with a 230VAC motor (max 600W)
• Open-close limit switch input NC
• Motor speed adjustable via trimmer from 50-100%.
• Partial (pedestrian) opening via remote control or terminal block
• Dwell time adjustable via trimmer from 0 to 120 seconds.
• Initial settings via dip switch
• Indicator LED
• 230VAC courtesy light control, 100W max
• Built-in 433MHz receiver with up to 254 radio codes that can be stored
• Built-in flashing light logic control
• Complies with the relevant European Directive: R&TTE 99/05/CE

CLICK THE LINK FOR THE INSTRUCTION MANUAL:
MANUFACTURER'S INSTRUCTION MANUAL

TECHNICAL SPECIFICATIONS
Transformer power supply: 230/18VAC 10VA
Control unit power supply: 230 VAC
Motor output: 230V max 600W
Max. current draw of motor and accessories: Max 8 Amps, fuse-protected
Accessory power supply: 24 VDC - 150 mA, fuse-protected
Operating ambient temperature: -20°C / + 55 °C
Programming parameters: stored in EEPROM

24-month warranty
