UTP CAT 5e LAN NETWORK CABLE WITH DOUBLE PVC SHEATH
Model LUDPR54A24UXBLB05
SKU: LP-524 /B500
Smart code: LP-524 /B500
Internal code: LUDPR54A24UXBLB05
No. of pairs x AWG size: 4x2xAWG24
Packaging: 500m reel
Diameter mm.: 6.2 ± 0.2
Weight Kg/Km: 39.50
Construction
Conductor: 24 AWG Red Cu
Insulation: HDPE 0.91 ±0.1mm
Primary sheath: Grey PVC RAL7001 Diam 5.0 ± 0.1mm
Outer sheath: Blue PVC Diam 6.2 ± 0.2mm
Marking: ECS-UTP CAT.5e-DG-PVC 4x2x24AWG- EIA/TIA 568 ISO/IEC 11801 CEI-UNEL 36762 C-4(Uo=400V) WW/YY [ORDER NR] -001m- Eca
Electrical properties
Conductor resistance: <93.8Ω/km at 20°C
DC loop resistance: <16.8Ω/100m
Mutual capacitance: <56pF/m
Impedance: 100 ±15Ω; between 1 MHz and 100 MHz
Minimum bend radius: 50mm
Operating temperature
Notes
Suitable for outdoor installation in conduit

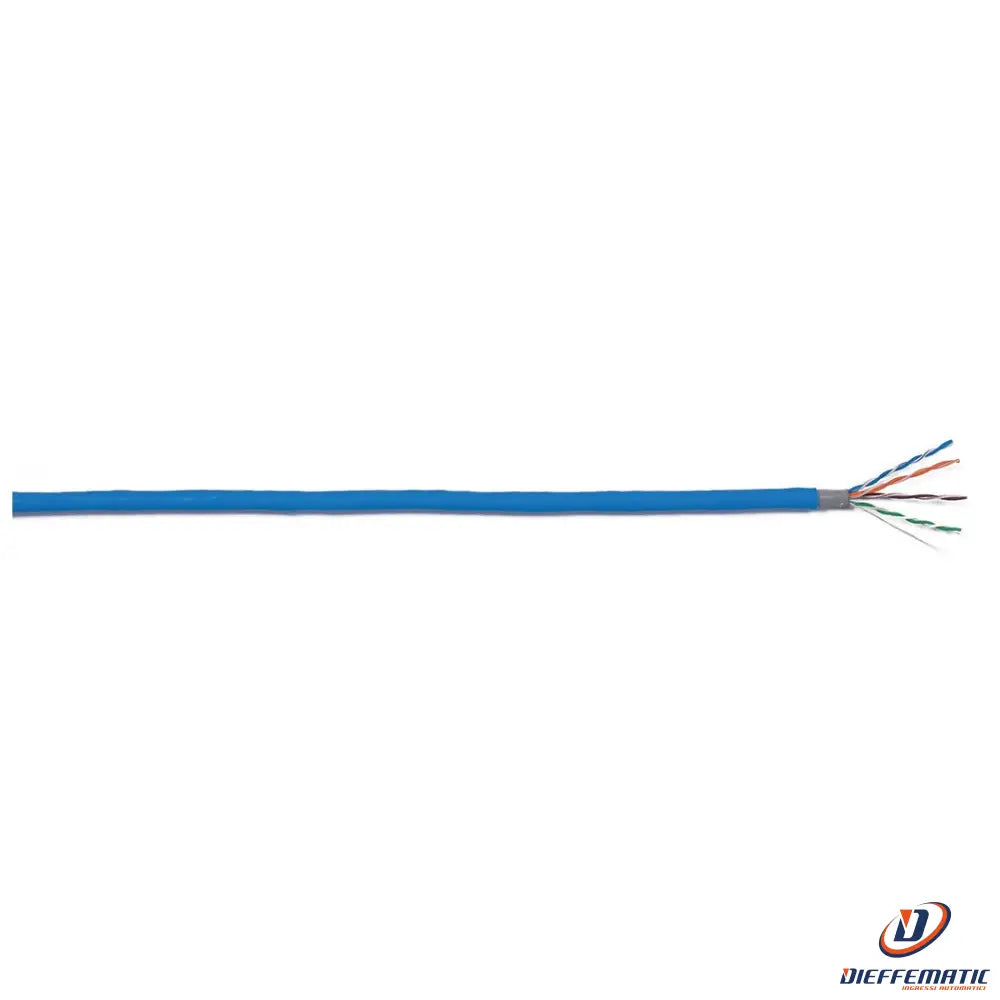

Warning: the image is provided for illustrative purposes only and is not binding.
CLICK ON THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
Technical data sheet PDF
CPR Declaration of Performance (DoP)
24-month warranty
