Description
Complete Gate Automation Kit
for TWO SWING LEAVES
Professional
Mod. VH 400 mm 230 V
**For leaves up to 2.50 m and 200 kg**
Linear electromechanical actuator for shared-use applications, all-metal construction, stainless steel rod.
Once correctly installed, VH automation systems require virtually no maintenance. Installation does not require any modifications to the existing gate!
High-performance electric motor.
The actuator is designed for leaves weighing no more than 200 kg and measuring no more than 2.50 metres in length. The aluminium body and bronze gear components ensure a long service life.
The actuator locks in the closed and open positions without requiring an electric lock for the leaves. Convenient release with the triangular key located on the motor assembly.
Control unit with built-in receiver for controlling 1/2 swing leaves.
Electronic clutch with convenient, quick stroke adjustment; second-leaf delay can be adjusted.
Slowdown during opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the independent control of leaf travel.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
BRACKET DIMENSIONS:
KIT CONTENTS:
No. 2 Electromechanical linear actuator for shared-use applications, for outdoor use
Emergency release with key. No electric lock required.
Motor speed 1,400 rpm. Power 200 W. Thrust 1500 N. Maximum opening angle 100°.
Power supply 220 V. 50 Hz. Weight 6.5 kg
No. 1 Control unit with watertight box, motor force and slowdown adjustment trimmers, built-in obstacle detection, slowdown during opening and closing, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic shared-use mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges, electric lock management, reverse pulse, adjustable leaf offset during closing/opening, closing delay adjustment.
No. 1 Single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 Antenna built into the control unit, range 20 metres (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 Pair of wall-mounted photocells

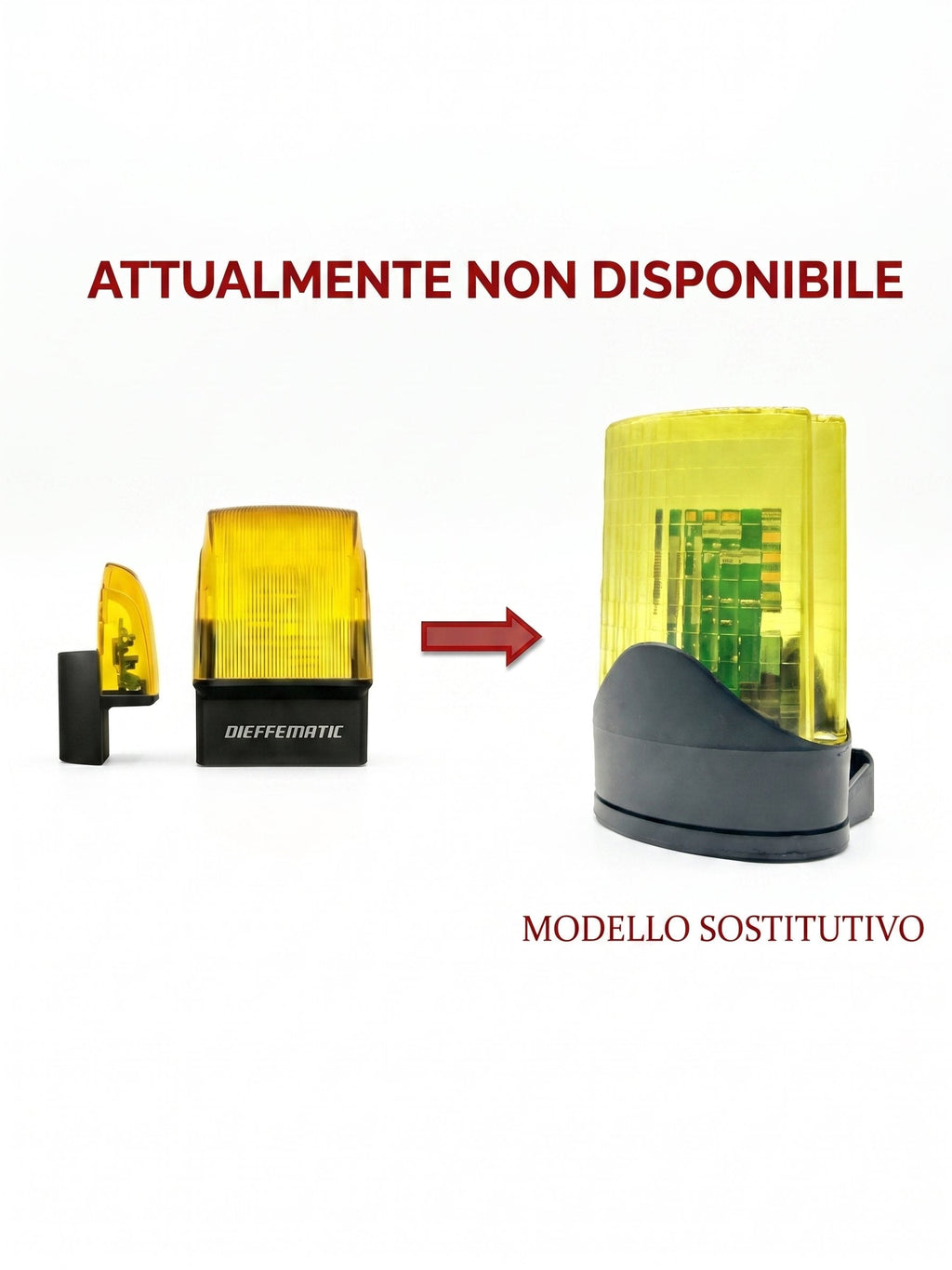

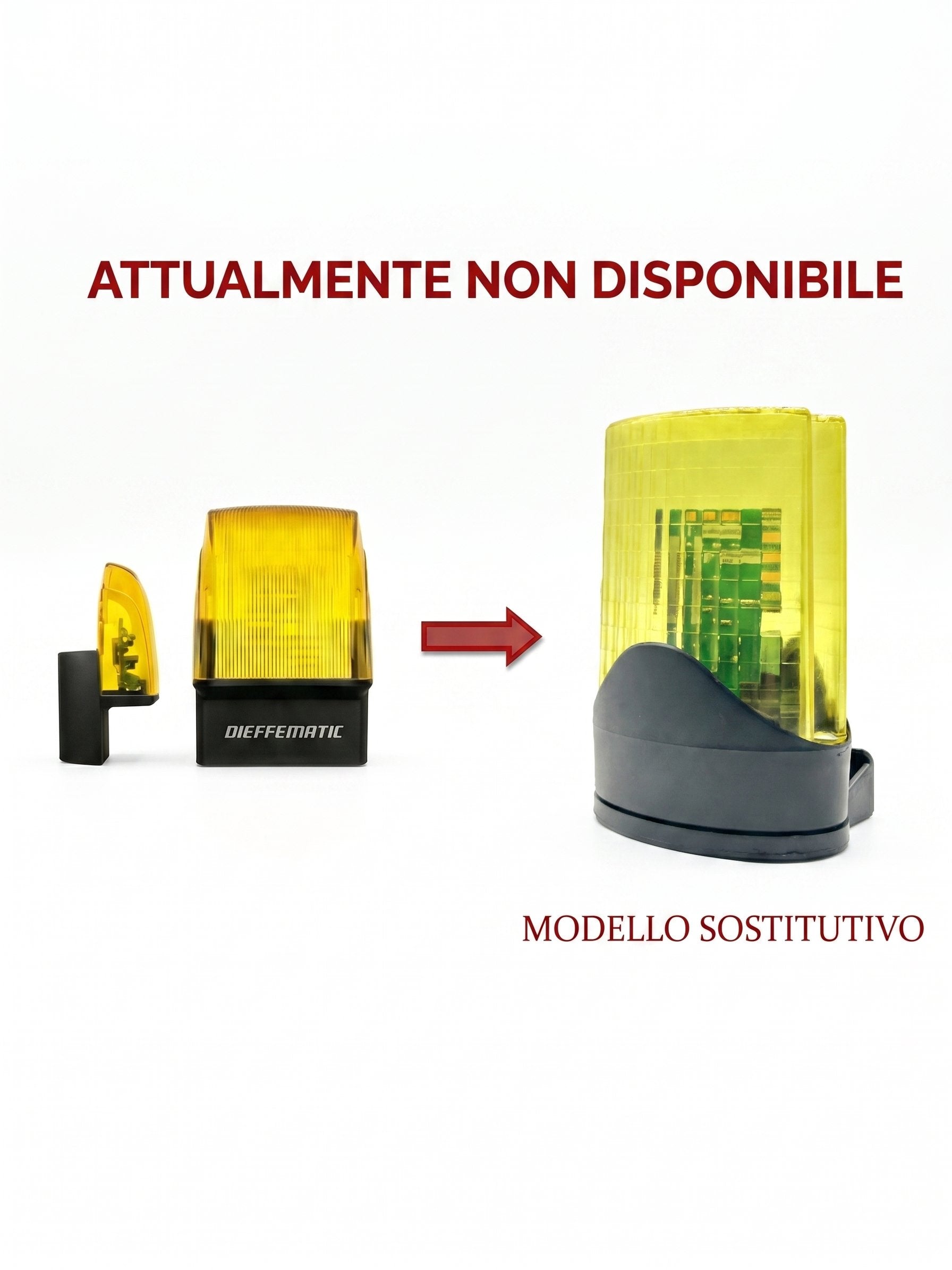

No. 1 230 V flashing light
No. 1 Warning sign
No. 1 Installation accessories, bolt-on/weld-on fixing brackets with bracket covers
No. 1 Instructions for installing the mechanical and electronic components in ITALIAN
24-month warranty
