Description
Complete kit for automation gate
with two doors doors
Professional
** Use for doors up to 2.50 meters and 350kg of weight **
Mod. Bhr 230V
Bhr automatisms, once installed correctly, must no longer be cared for,
Since their maintenance is practically nothing, the installation does not require any changes to the existing gate!
High performance electric motor.
The actuator is built for doors that do not exceed 350 kg in weight and 3.00 meters in length,
Aluminum body and the heart of bronze gears guarantee a long duration.
The actuator maintains the blockage in closing and opening without the need for electrosercture for doors,
Comfortable unlocking with triangular key located on the engine group.
Control unit with built -in receiver for ½ doors control.
Electronic clutch with comfortable and fast running adjustment, possibility to adjust the second -door delay.
Slowdowns at the opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the racing of the doors.
Click on the links for the instruction manuals:
Mechanical installation manual
Electronic installation manual

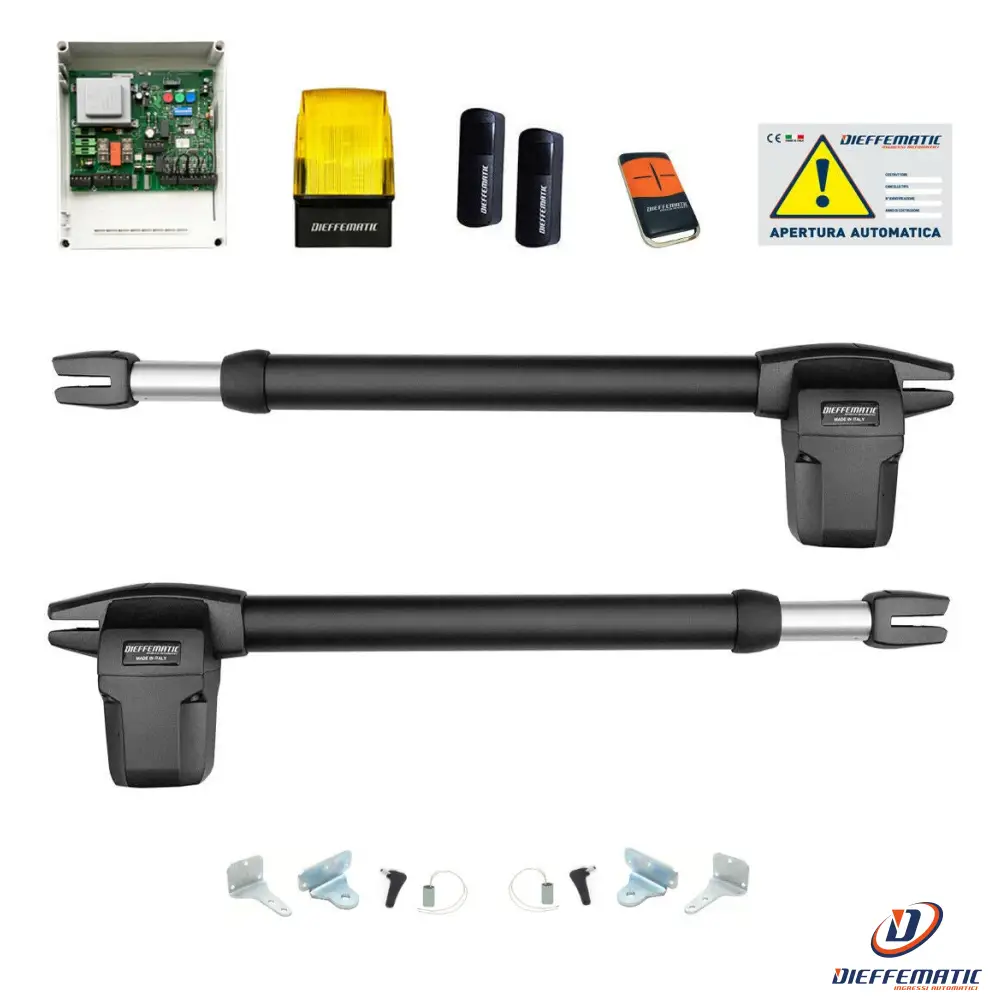

Composition of the kit:
n ° 2 linear electromechanical actuator for residential - condominium use, for external uses
Emergency unlocking. It does not require electroserration.
1,400 engine turns. Power 280 W. adjustable push from 500 to 3000n. Maximum opening corner 100 °.
Power supply 220 V. 50 Hz. Weight 6.0 kg
n ° 1 control unit with watertight box box, with adjustment adjustment trimmer and slowdown,
Eye surveillance detector, slowdown and closing slowdown, 4 operating logic: step-by-step, semi-automatic 1 and 2,
automatic condominium. Pedestrian entrance, courtesy light, protection against survivors, entrance to photocells and safety coasts,
Electroserracting management, reversal stroke, anta-closing/opening adjustable locking, adjustment of the re-cleaning time.
N ° 1 Receiver Monocanal Radio built into the control unit (433.9 MHz)
n ° 1 antenna built into the control unit, brought 40 meters (433.9 MHz)
n ° 1 remote control 4 Rolling Code channels
n ° 1 pair photocell of wall
N ° 1 flashing 230V LED
N ° 1 Report signal
n ° 1 accessories for installation
n ° 1 assembly instructions of the mechanical and electronic part in Italian
24 months warranty
