Description
BFT extension
Complete kit for automation
SINGLE hinged door
PHOBOS BT KIT A25
24V system
code R935306 00004
Electromechanical pistons for leaves weighing up to 400 kg,
a maximum length of 2.5 m.
| Command center | THALIA |
| Board power supply | 230V |
| Motor voltage | 24th |
| Absorbed power | 40W |
| Max. width swing | 2.5 m |
| Max. weight swing | 400kg |
| Useful rod stroke | 290 mm |
| Maximum angle | 116th |
| Maneuver time | 15 s |
| Limit switch type | Magnetic |
| Slowdown | Yes |
| Block | Mechanical |
| unlock | Personalized key |
| Impact reaction | D-Track, U-Link |
| Frequency of use | intensive |
| Degree of protection | IPX4 |
| Environmental conditions | -20 ÷ 55 °C |
| U Link | no |

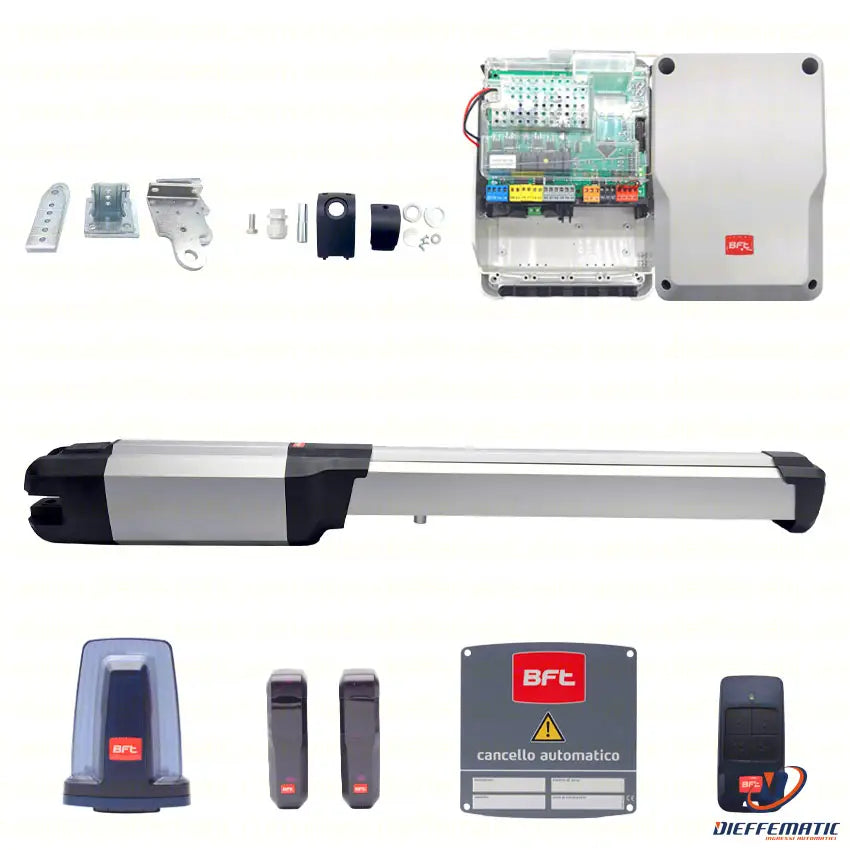

The KIT includes:
1 - PHOBOS BT A25 P935096 00002 24 V electromechanical irreversible operator for swing gates
1 - MITTO B RCB04 R1 12V four-channel 433MHz rolling code transmitter
1 - BT L2 Control panel for 1 or 2 24V operators for swing gates
1 - Q.BO KEY WM Outdoor key selector with double contact.
1 - COMPACTA Pair of self-aligning photocells. Range 20 m. 24V ac/dc power supply.
1 - RADIUS B LTA 24 R1 Flashing light with integrated antenna for 24V powered motors
1 - CMS Warning sign
24 months warranty
