Description
Model KV4
- Electric gear motorirreversible electromechanical gear motor for automating sliding gates,
with all-metal gears, ensuring performance and reliability.
- Robust and safe, it features a painted die-cast aluminum body and an ABS protective cover.
- A convenient personalized key release system allows the gate leaf to be moved manually when mains power is unavailable.
- Control unit with radio receiver, in a dedicated enclosure with an Aerstop gasket to protect against moisture and insects
- Intelligent: automatic travel programming, motor torque adjustment and speed reduction.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT CONTENTS:
- 1 400 kg electromechanical gear motor,
220V power supply with key release,
Dimensions: H215 x W172 x D230 mm.
Weight: 6 kg.
- 1 Galvanized foundation plate
- 1 Control unit located in the motor housing,
with motor force adjustment trimmer and obstacle detection, deceleration during opening and closing,
4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input,
Courtesy light, surge protection, inputs for photocells and safety edges
-----
- 1 Single-channel radio receiver built into the control unit (433.9 MHz)
- 1 Antenna built into the control unit, range 20 metres (433.9 MHz)
- 1 4-channel rolling-code remote control
- 1 Pair of wall-mounted photocells

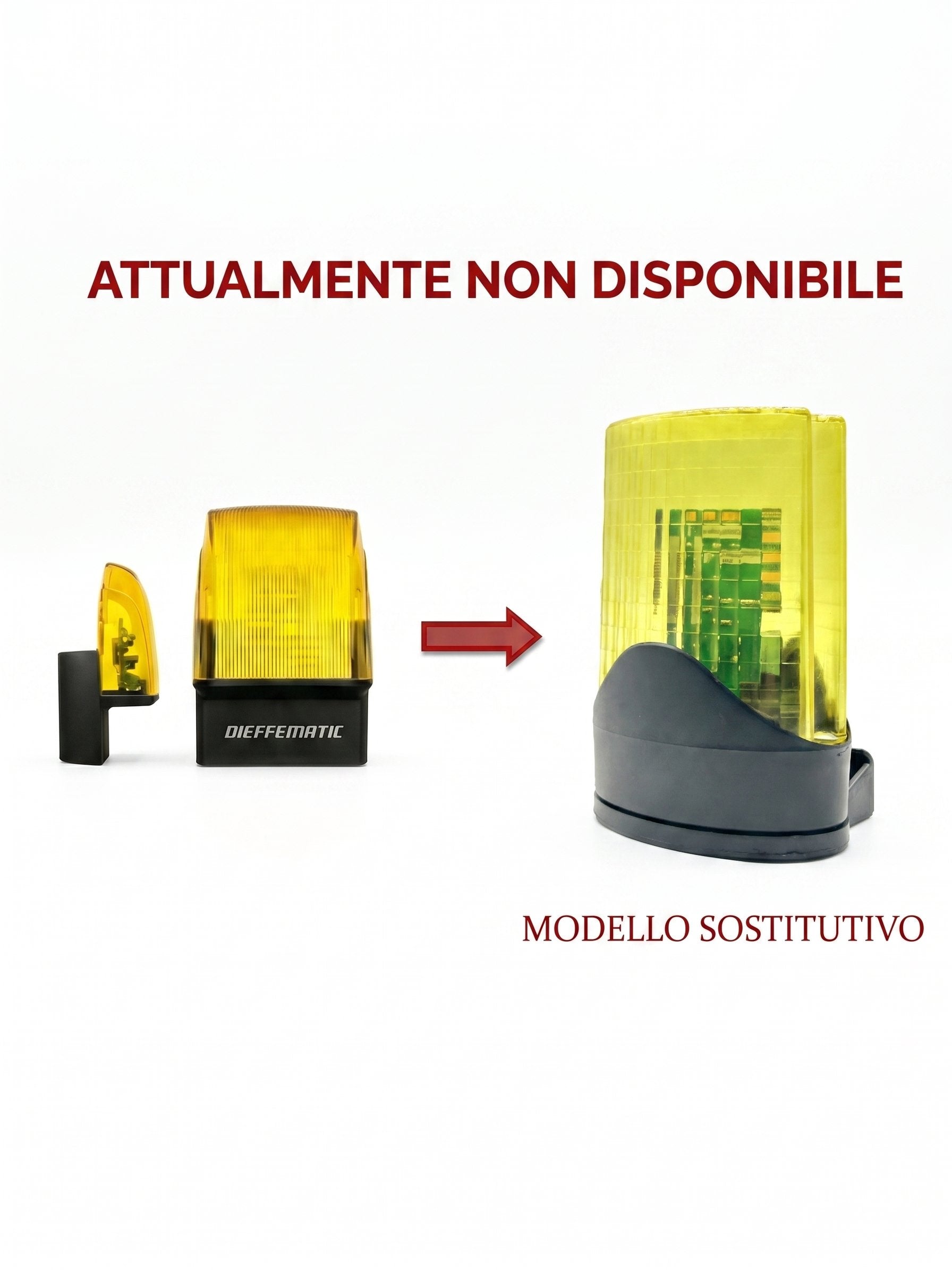

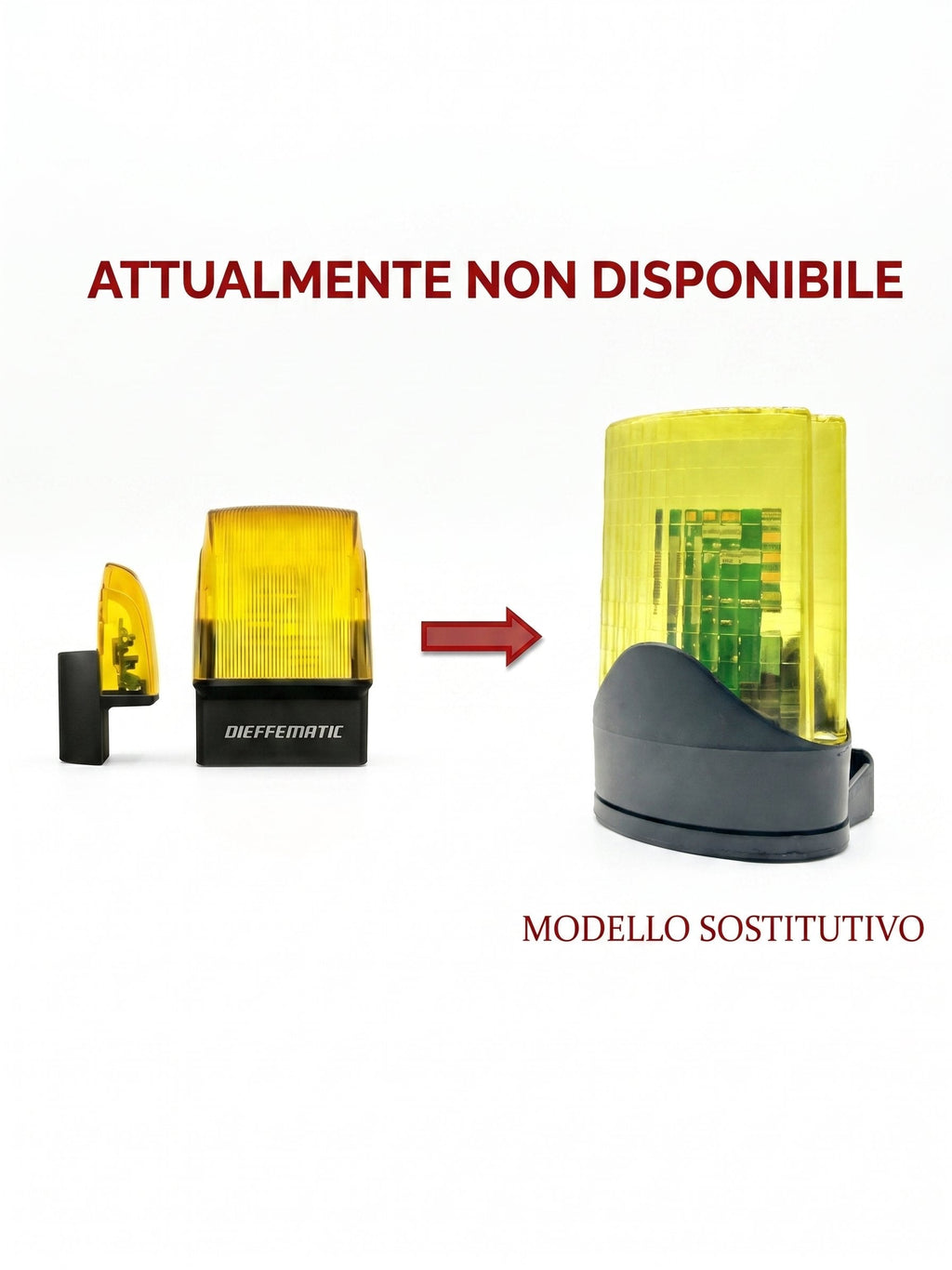

- 1 230V flashing light
- 1 Warning sign
- 1 Set of installation accessories
- 1 Mechanical and electronic installation manual in ITALIAN
24-month warranty
