Description
Professional
**Use for doors up to 2.50 meters and 200kg in weight**
Mod. VH 400mm 24v
Electromechanical linear actuator for condominium use, entirely metal structure, stainless steel stem.
VH automatic systems, once installed correctly, no longer need to be looked after,
since their maintenance is practically zero, installation does not require any modification to the existing gate!
High performance electric motor.
The actuator is built for leaves that do not exceed 200 kg in weight and 2.50 meters in length,
The actuator maintains the lock in closing and opening without the need for an electric lock for the leaves,
Control unit with built-in receiver for the control of ½ leaves.
Electronic clutch with convenient and fast stroke adjustment, possibility of adjusting the second leaf delay.
Slowdowns on opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the possibility of independently managing the stroke of the leaves.
CLICK ON THE LINKS FOR THE INSTRUCTION MANUALS:

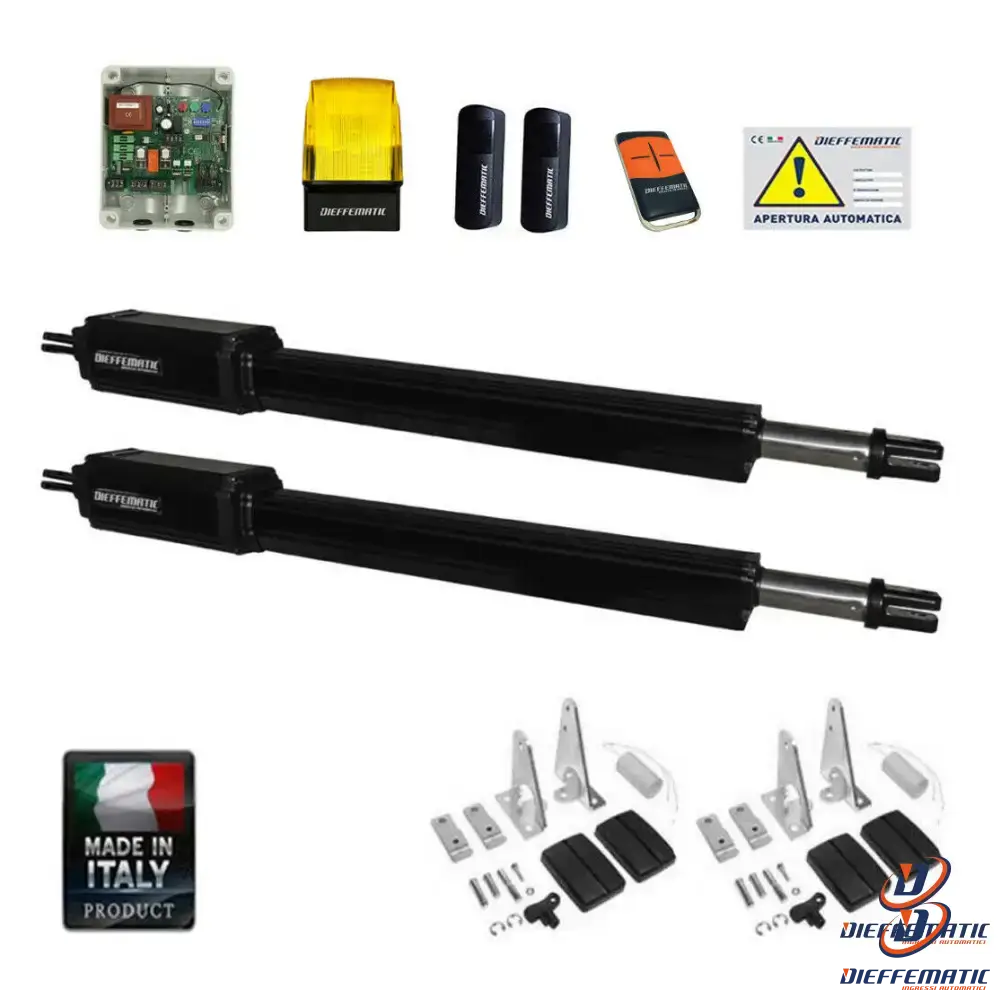

KIT COMPOSITION:
n° 2 Electromechanical linear actuator for condominium use, for external uses
Emergency release with key. Does not require an electric lock. Engine rpm 1,400. Power 50W.
Thrust 1500 N. Maximum opening angle 100°. 24V power supply. Weight 6.5 kg
n° 1 control unit with watertight box, with trimmer for regulating engine force and slowdown,
built-in obstacle detector, slow opening and closing, 4 operating logics: step-by-step,
semi-automatic 1 and 2, condominium automatic. Pedestrian entrance, Courtesy light, Overvoltage protection,
Input for photocells and safety edges, electric lock management, reverse stroke,
Adjustable closing/opening leaf offset, re-closing time adjustment.
n° 1 single-channel radio receiver incorporated in the control unit (433.9 MHz)
n° 1 Antenna incorporated into the control unit, range 20 meters (433.9 MHz)
n° 1 4-channel Rolling Code remote control
n° 1 Pair of wall-mounted photocells
n° 1 24v flashing light
n° 1 Warning sign
n° 1 Installation accessories, fixing brackets to be bolted/welded with bracket covers
n° 1 Assembly instructions of the mechanical and electronic part in ITALIAN
24 month warranty
