Description
Complete Kit for Sliding Gate Automation
600 kg - 230 V
Professional
**encoder unit can be installed (optional)**
Model KV6 230 V
- Irreversible electromechanical gearmotor for automating sliding gates, with all-metal gears to ensure performance and reliability.
- Robust and safe, it features a painted die-cast aluminium body and an ABS protective cover.
- It features an innovative mechanical limit switch system that is easy to adjust and ensures highly repeatable positioning.
- Particularly suitable for use in areas where snow is common, thanks to the absence of contact between the limit switch and the rack.
- A convenient personalized key release system allows the gate leaf to be operated manually in the event of a mains power failure.
- Control unit with radio receiver in a dedicated housing with Aerstop gasket to protect against moisture and insects
- Smart: automatic travel programming, motor torque adjustment and speed slowdown.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT CONTENTS:
- 1 electromechanical gearmotor, 600 kg, 220 V power supply with key release, dimensions H270 x L230 x D210 mm. Weight 8 kg.
- 1 galvanized foundation plate
- 1 control unit housed in the motor cover, with motor force adjustment trimmer and obstacle detection, slow-down during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges
- 1 single-channel radio receiver built into the control unit (433.9 MHz)
- 1 antenna built into the control unit, range 20 metres (433.9 MHz)
- 1 4-channel rolling-code remote control
- 1 pair of wall-mounted photocells

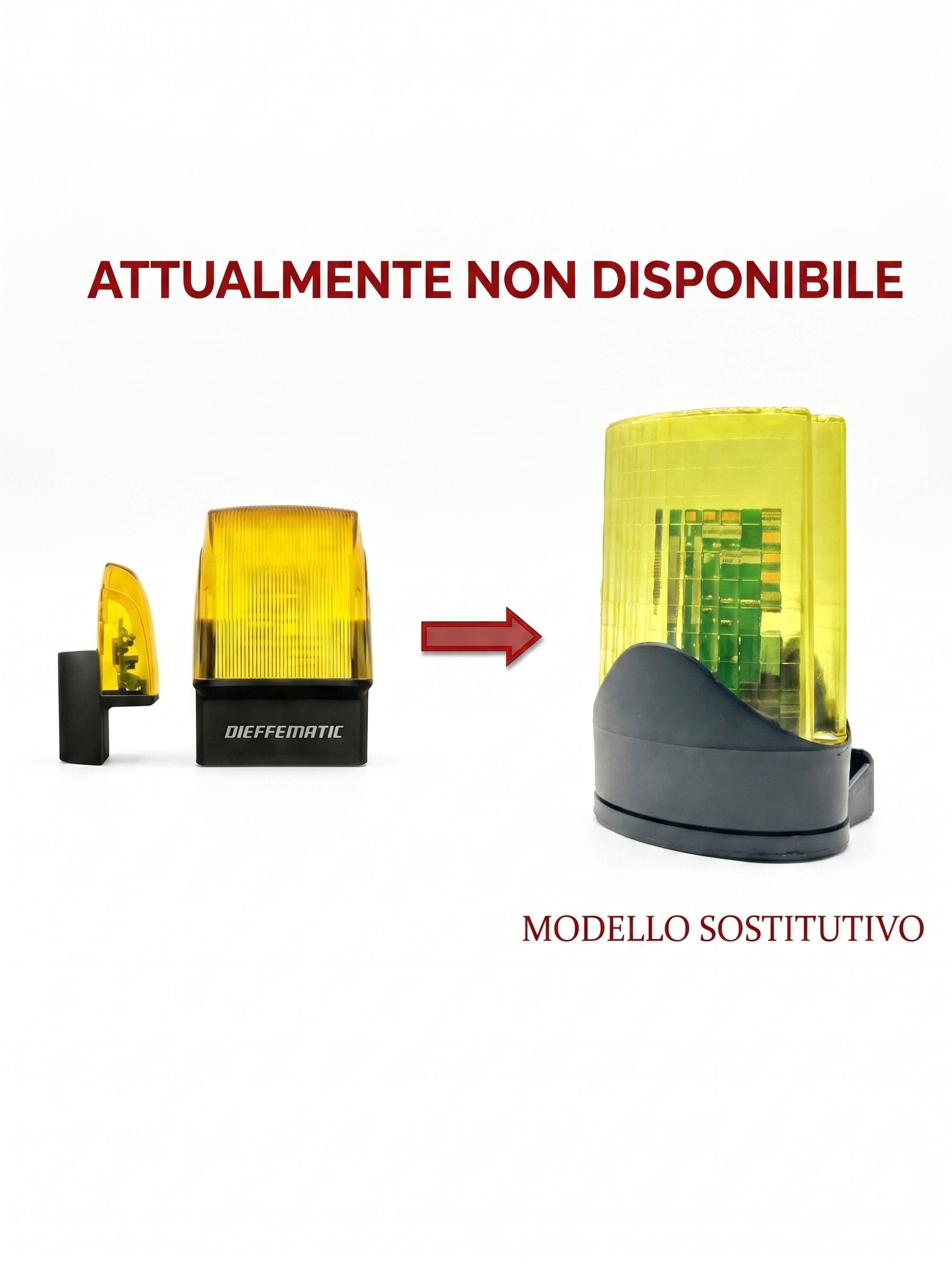

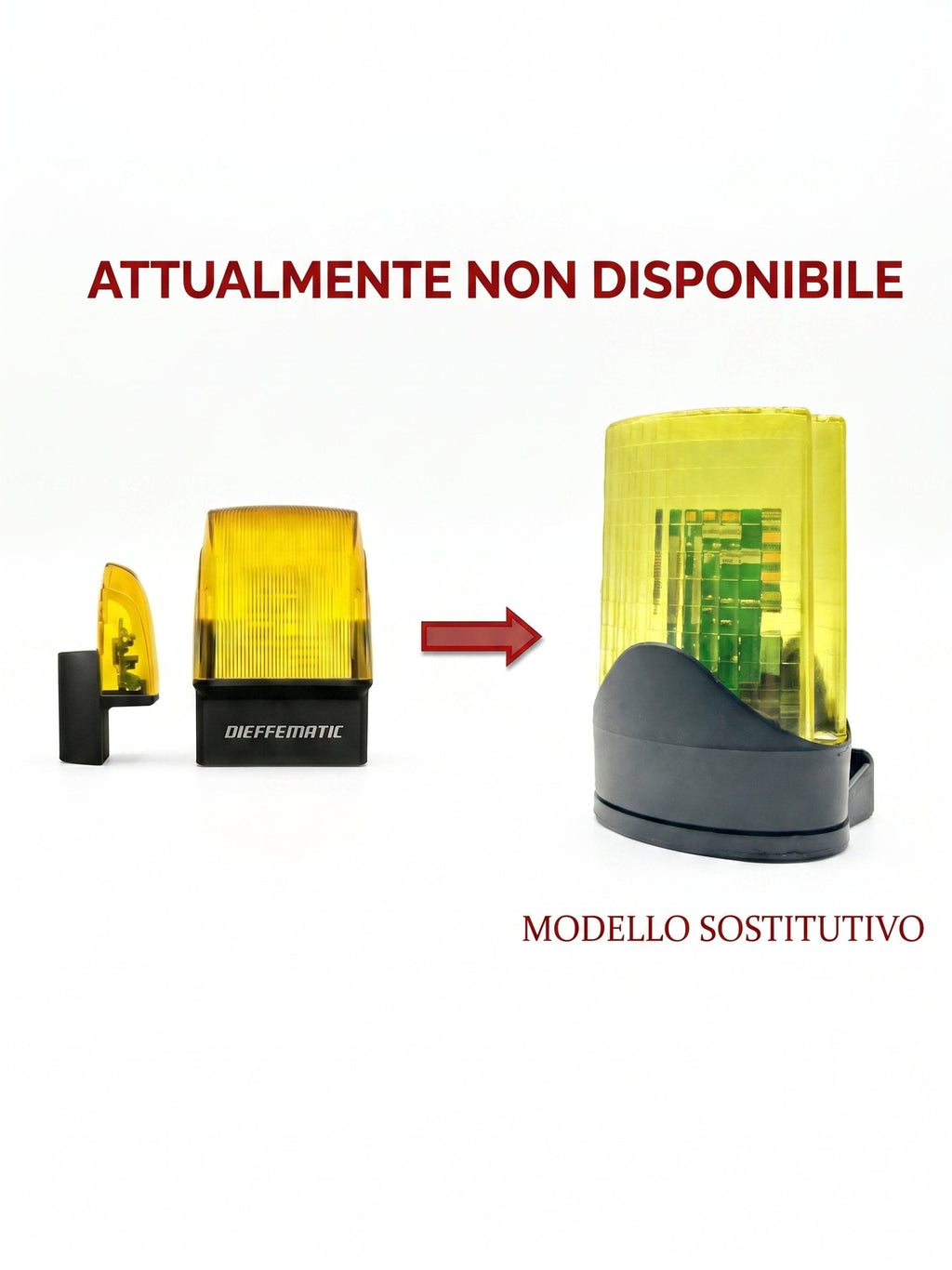

- 1 230 V flashing light
- 1 warning sign
- 1 set of installation accessories
- 1 set of mechanical and electronic installation instructions in ITALIAN
24-month warranty
