Description
Complete Kit for Gate Automation
for Two Swing Leaves
400 MM STROKE MOTORS
IRREVERSIBLE (with mechanical lock)
Professional
**For leaves up to 3.00 m long and weighing 250 kg**
Mod. PM1 230v
BRACKET DIMENSIONS:
Linear electromechanical actuator for condominium use, entirely metal construction, stainless steel rod.
Once correctly installed, PM1 automation systems require virtually no maintenance! Installation requires no modifications to the existing gate.
High-performance electric motor.
The actuator is designed for leaves weighing no more than 250 kg and measuring no more than 3.00 metres in length. The aluminium housing and bronze gear components ensure a long service life.
The actuator remains locked when open and closed without the need for an electric lock; convenient key release on the motor unit.
Control unit with built-in receiver for controlling 1 or 2 swing gate leaves.
Electronic clutch with convenient, quick travel adjustment and the option to adjust the delay before the second leaf moves.
Slowdown during opening and closing.
Suitable for symmetrical and asymmetrical gates, with independent control of each leaf's travel.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT CONTENTS:
2 electromechanical operators for residential swing gates with leaves up to 3 m. No electric lock required.
Motor speed 1,400 rpm. Power 200 W. Adjustable thrust from 500 to 3000 N. Maximum opening angle 120°.
Power supply 220 V. 50 Hz. Weight 6.3 kg
1 control unit with watertight enclosure, featuring motor force adjustment trimmer and obstacle detector, deceleration during opening and closing, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic condominium mode.
Pedestrian entrance, courtesy light, overvoltage protection, input for photocells and safety edges, electric lock control, reverse stroke, adjustable gate leaf offset during closing/opening.
---
1 single-channel radio receiver built into the control unit (433.9 MHz)
1 antenna built into the control unit, range 20 metres (433.9 MHz)
1 4-channel rolling-code remote control
1 pair of wall-mounted photocells

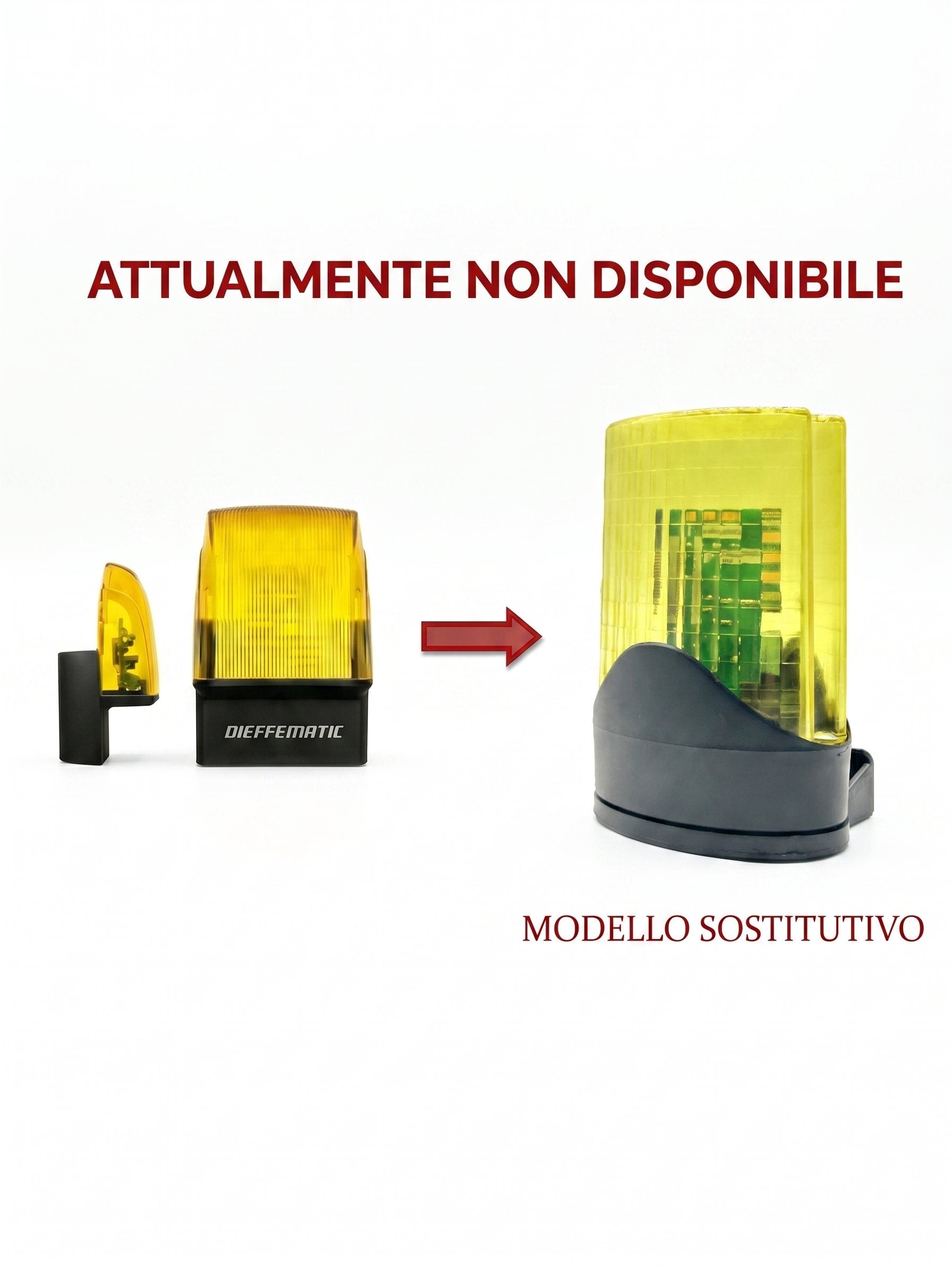

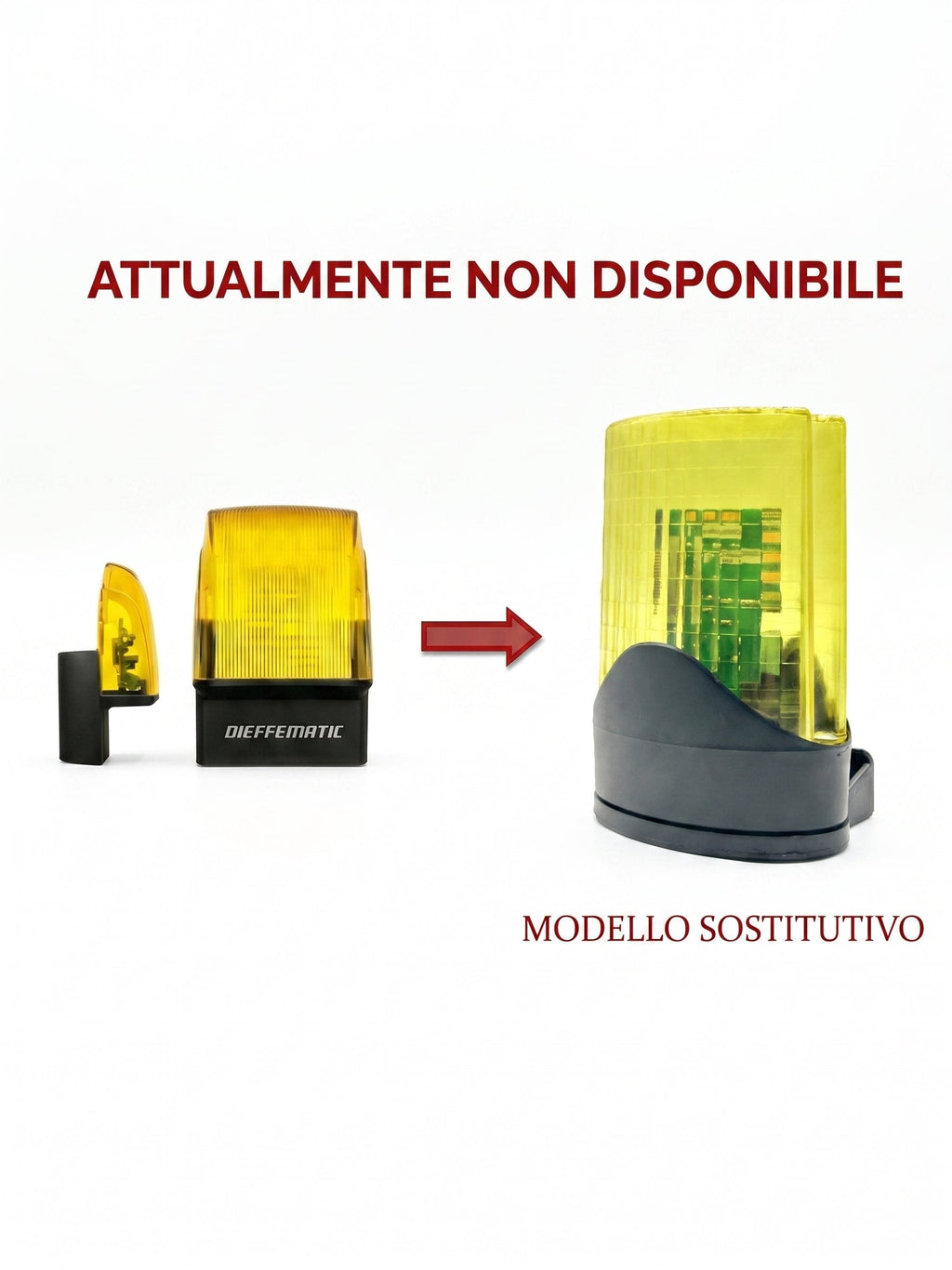

1 230 V flashing light
1 warning sign
1 set of installation accessories
1 set of instructions for installing the mechanical and electronic components in ITALIAN
TECHNICAL DATA
PM (reversible)
-
PM1 (irreversible)
Max. gate leaf weight
250 Kg
250 Kg
250 Kg
Max. gate leaf length
1,80 (300) mt
2,50 (400) mt
3,50 (600) mt
Motor power supply
12Vdc
230 Vac
230 Vac
Motor power
50 W
250 W
250 W
Motor speed
900
800
800
Capacitor
/
12,5 ?F
12,5 ?F
Manual release for emergency operation
/
/
with key
Operating temperature
-20° C / +55° C
-20° C / +55° C
-20° C / +55° C
Weight
7.5 Kg
7.5 Kg
7.5 Kg
Protection rating
IP 55
IP 55
IP 55
90° opening time
15/25/30 sec
15/25/30 sec
15/25/30 sec
Rod travel
300/400
300/400/600
300/400/600
Thrust force
1500 N
1500 N
1500 N
Average motor current draw
3 A
1 A
1 A
24-month warranty
