Description
Complete Kit for Automating a Two-Leaf Swing Gate
With ARTICULATED arms
230V
Professional
Model ARTILUX OLD 230V
Maximum distance between hinge and inner edge of column: 35 cm
For leaves up to 3.00 m
Flush mounting on large pillars or load-bearing walls.
High-performance electric motor.
Electromechanical gearmotor for external installation, ideal for condominium gates.
ELECTRIC limit switch, easy to adjust.
High-performance electric motor.
Convenient key release
Control unit with built-in receiver for controlling 1/2 swing leaves.
Electronic clutch with convenient, quick travel adjustment; second leaf delay can be adjusted.
Slowdown during opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the independent control of each leaf's travel.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

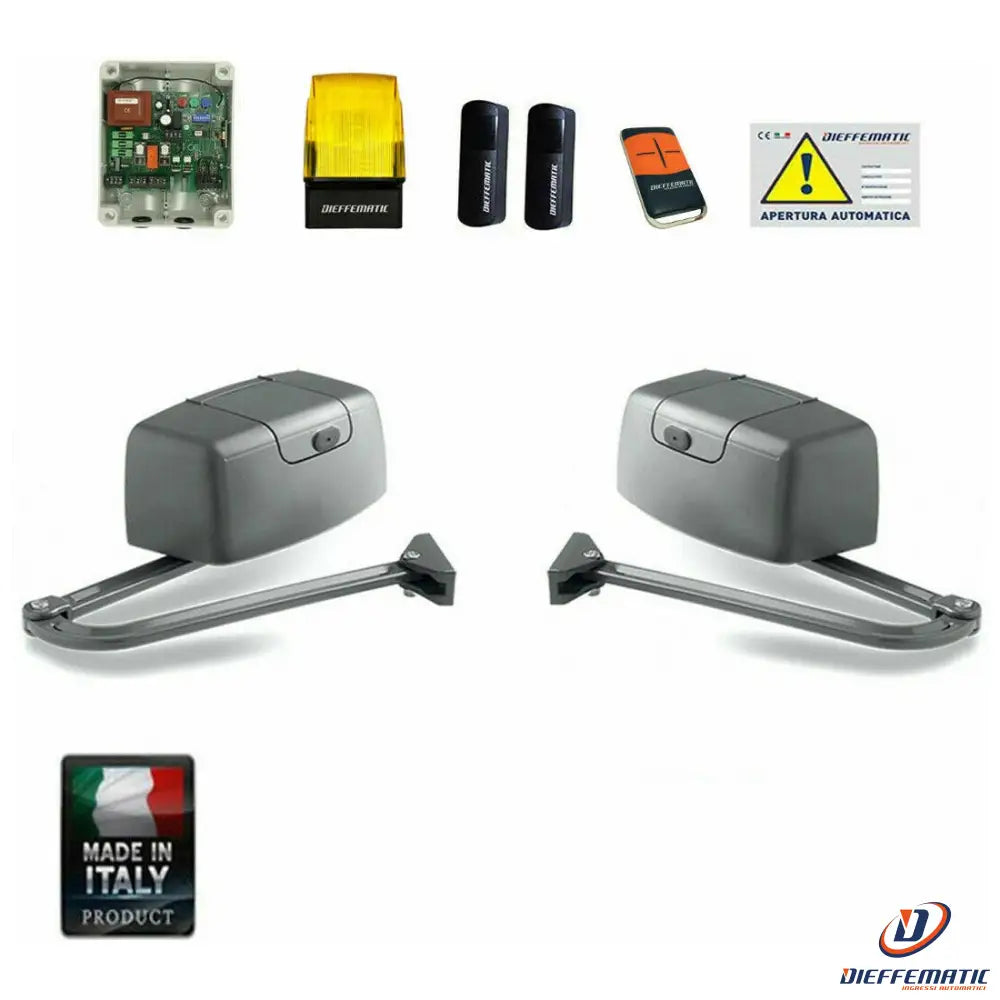

KIT CONTENTS:
No. 2 electromechanical articulated-arm actuators for residential use, with high-performance electric motor. Emergency release. No electric lock required. Motor speed 1,400 rpm. Power 200 W. Adjustable thrust from 500 to 3000 N. Maximum opening angle 125°. Power supply 230v. Weight 8 kg
No. 1 control unit with watertight enclosure, featuring a motor force adjustment trimmer and obstacle detection, opening and closing slowdown, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges, electric lock management, reverse impact, adjustable leaf offset during closing/opening.
No. 1 single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 antenna built into the control unit, range 20 meters (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 pair of wall-mounted photocells
No. 1 flashing light
No. 1 warning sign
No. 1 installation accessories
No. 1 mechanical and electronic installation instructions in ITALIAN
24-month warranty
